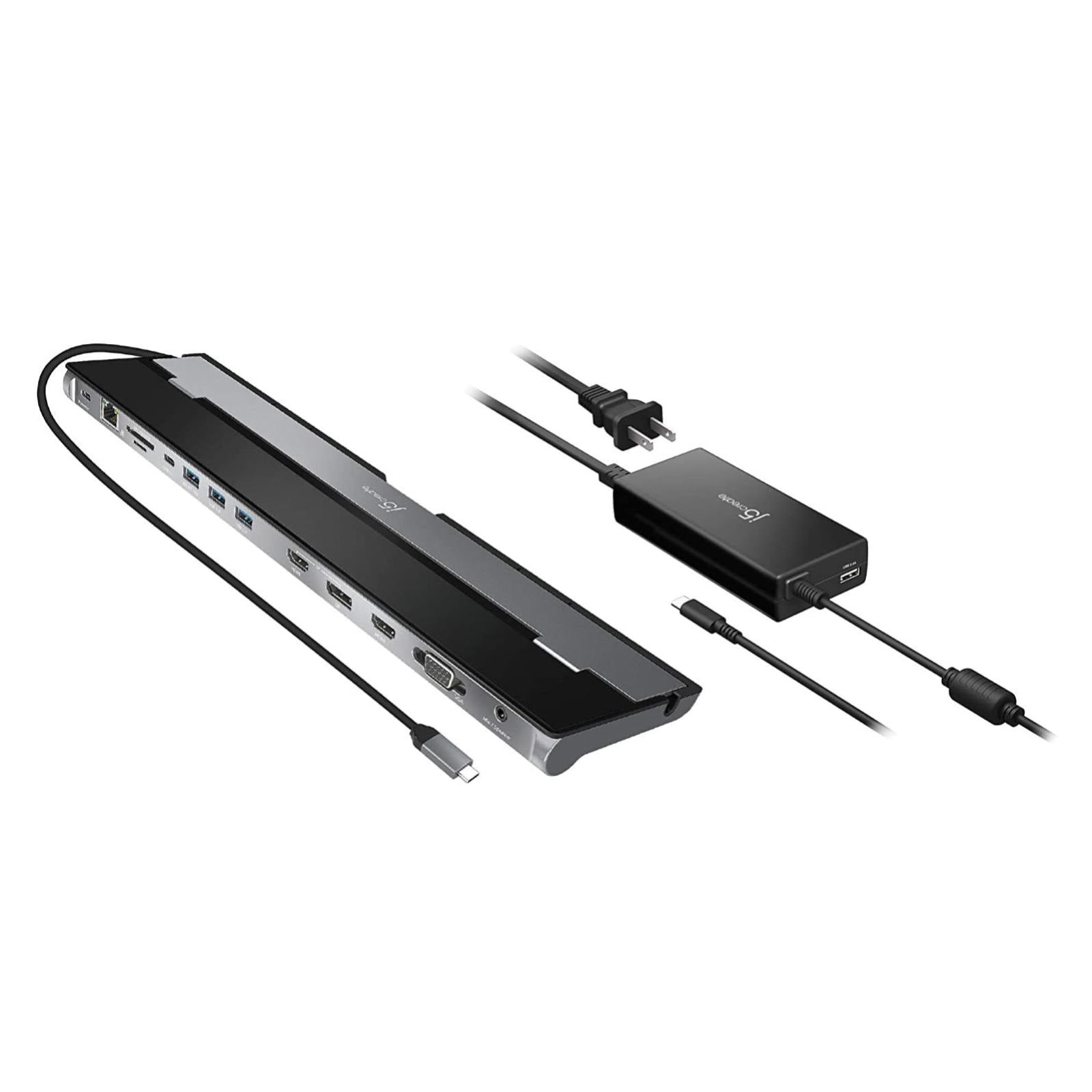

J5create JCD543P USB-C Triple Display Docking Station with 100W Power Delivery
Transform your USB-C laptop into a complete workstation with the J5create JCD543P Triple Display Docking Station. Featuring triple monitor support via HDMI, DisplayPort, and VGA, this docking station lets you connect up to three external displays with resolutions up to 4K at 30Hz, ideal for multitasking professionals, content creators, and hybrid workers. The included 100W Power Delivery adapter keeps your laptop charged while powering all connected peripherals through a single USB-C connection.
Key Features
-
Triple Display Support: Connect up to 3 external monitors via 2x HDMI, 1x DisplayPort, and 1x VGA for a total of 4 screens including your laptop display
-
100W Power Delivery: Included USB-C power adapter charges MacBook Pro, Dell XPS, HP, Lenovo, and other USB-C laptops while docked
-
13 Ports in One: 3x USB-A 3.0 ports (one with fast charging), 1x USB-C 3.1 Gen 1, Gigabit Ethernet, SD/microSD card reader, and 3.5mm audio jack
-
Heat-Dissipating Notebook Stand: Elevated design improves airflow and prevents overheating during extended use
-
Flexible Cable Storage: Double-sided compartment accommodates USB-C port placement on any device
-
Mac and Windows Compatible: Works with macOS 10.11+ and Windows 10+ (driver installation required for full functionality)
Stunning Multi-Monitor Productivity
The JCD543P utilises DisplayPort Alt Mode to deliver crisp 4K resolution at 30Hz on two displays simultaneously via HDMI or DisplayPort, plus Full HD 1080p on VGA. Choose from multiple display configurations: HDMI + HDMI + VGA, or DisplayPort + HDMI + VGA. Perfect for traders monitoring multiple data streams, designers comparing colour palettes, developers reviewing code across screens, or educators presenting to multiple displays.
Universal Connectivity for Every Peripheral
Expand your laptop's limited ports with comprehensive connectivity options. Three USB-A 3.0 ports handle keyboards, mice, external drives, and webcams, with one port supporting BC1.2 fast charging for smartphones and tablets. The additional USB-C 3.1 Gen 1 port supports modern peripherals and data transfer speeds up to 5Gbps. Gigabit Ethernet ensures stable wired network connections for video calls and large file transfers, while the SD and microSD card reader provides easy access to photos and videos from cameras and drones.
Charge While You Work
The included 100W USB-C power adapter delivers robust Power Delivery 3.0 to keep your notebook charged throughout the workday. A dedicated power input port passes through up to 100W to your connected laptop, supporting power-hungry devices like 16-inch MacBook Pro, Dell XPS 15, and HP ZBook workstations without interruption.
Smart Design for Modern Workspaces
The aluminium docking station doubles as a laptop stand with advanced heat dissipation, elevating your notebook for better ergonomics and airflow. The 45cm attached USB-C cable stores neatly in a double-sided compartment, allowing flexible placement whether your laptop's USB-C port is on the left or right side. The sleek silver and black finish complements any desk setup.
What's in the Box
- 1x JCD543P USB-C Triple Display Docking Station
- 1x JUP2290 100W USB-C Power Adapter
- 1x Quick Installation Guide
Full Specifications
Video & Display
| Video Outputs |
2x HDMI (4K at 30Hz), 1x DisplayPort (4K at 30Hz), 1x VGA (1920 × 1080) |
| Maximum Displays |
3 external monitors (4 total with laptop screen) |
| Maximum Resolution |
4K (3840 × 2160) at 30Hz via HDMI/DisplayPort; 1080p at 60Hz via VGA |
| Display Modes |
Extended and Mirror modes (Mac and Windows) |
| Audio Channel |
2.1 via HDMI/DisplayPort/3.5mm audio jack |
Connectivity & Ports
| USB Ports |
3x USB-A 3.0 (5Gbps, one with BC1.2 fast charge), 1x USB-C 3.1 Gen 1 (5Gbps) |
| Ethernet |
1x RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Card Reader |
1x SD/microSD combo reader/writer |
| Audio |
1x 3.5mm combo audio jack |
| Host Interface |
USB-C male with 45cm attached cable |
| Power Input |
1x USB-C Power Delivery 3.0 port (supports up to 100W pass-through) |
Power
| Power Delivery |
Up to 100W via USB-C (adapter included) |
| Power Consumption |
900mA |
| Power Mode |
Bus-powered or self-powered |
| Input Voltage |
20V |
| Input Current |
5A |
Physical Specifications
| Dimensions (W × D × H) |
82.5mm × 350mm × 23.4mm |
| Weight |
300g (docking station only) |
| Cable Length |
45cm (attached) |
| Colour |
Silver and Black |
| Enclosure |
Aluminium |
System Requirements & Compatibility
| Operating Systems |
Windows 10 or later, macOS 10.11 or later |
| Requirements |
USB-C 3.1 port with DisplayPort Alt Mode and Power Delivery; driver installation required |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
Less than 85% non-condensing |
Warranty & Support
| Warranty |
2-Year Limited Warranty |
| Country of Origin |
Taiwan |
Specifications are sourced from the manufacturer product page and may be updated. Driver installation required for VGA output and standalone HDMI port on Windows and macOS. DisplayPort Alt Mode and Power Delivery support required on host device.
