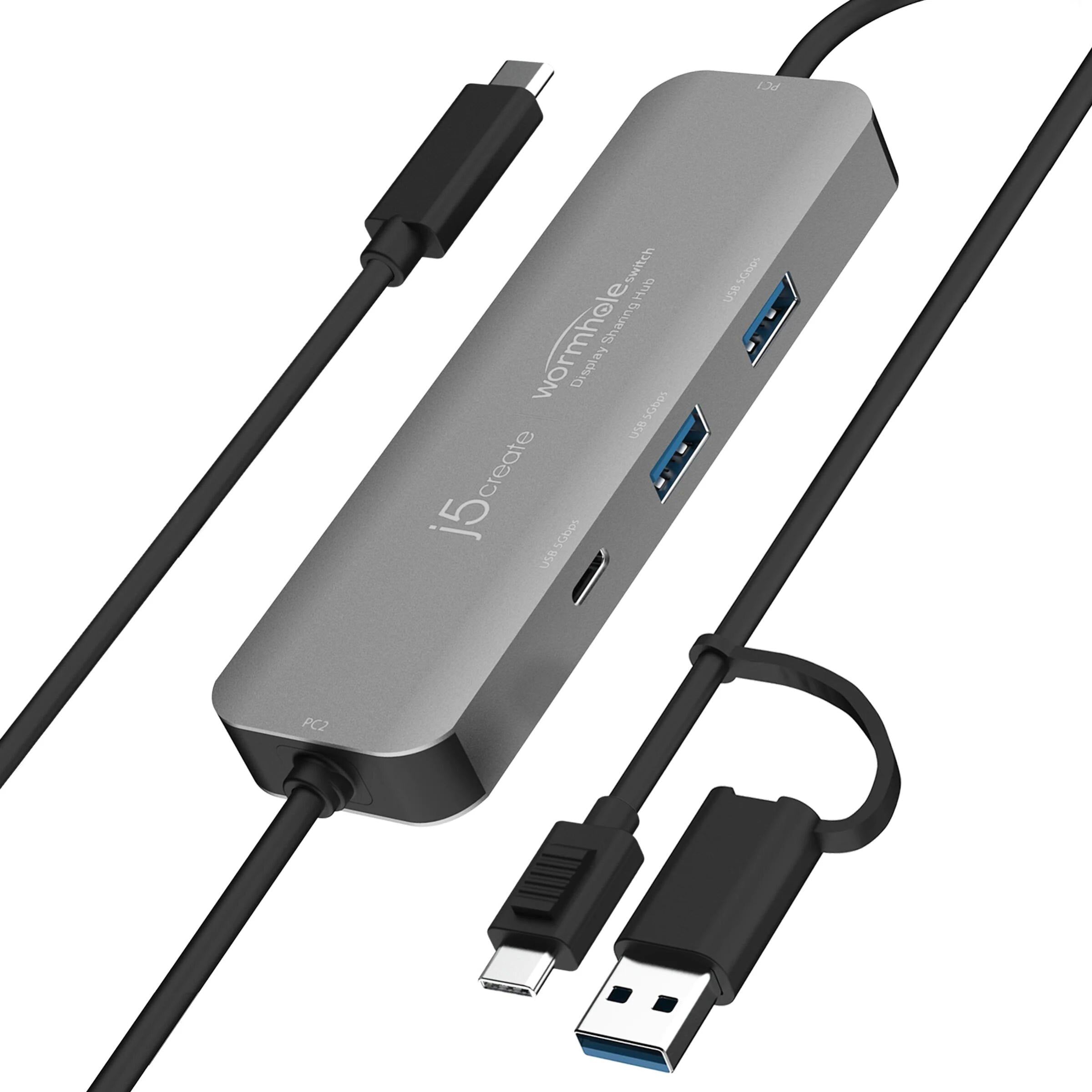

J5create JCH462 Wormhole Switch Display Sharing Hub
The J5create JCH462 Wormhole Switch Display Sharing Hub is the ultimate productivity solution for anyone working across two Windows computers. Seamlessly share your keyboard, mouse, display, clipboard, and files between two PCs with just one hub. Perfect for engineers, designers, IT professionals, content creators, and anyone managing multiple workstations, this hub transforms the way you multitask by eliminating the need for duplicate peripherals and simplifying your workspace.
Key Features
-
Built-in KVM Functionality: Control two Windows computers with a single keyboard and mouse, switching effortlessly between devices with a simple mouse movement to the screen edge.
-
Screen Sharing Made Easy: Extend or duplicate your screen between two Windows devices, with support for a movable, resizable Picture-in-Picture window in Duplicate mode.
-
Drag-and-Drop File Sharing: Transfer files instantly between PCs using intuitive drag-and-drop or copy-and-paste, powered by fast USB 3.2 Gen 1 (5Gbps) data transfer.
-
Touchscreen & Stylus Support: Enhance productivity when paired with a Windows tablet, featuring virtual multi-touch, gesture support, and stylus pen compatibility.
-
3 Built-In USB Ports: Expand your connectivity with 2 × USB Type-A (5Gbps) and 1 × USB-C (5Gbps) ports for peripherals like flash drives, webcams, or hard drives (works with PC1 host).
-
Windows 10 & 11 Compatible: Requires computers with available USB-C 3.2 ports and Windows 10 or Windows 11 operating systems.
Work Smarter Across Two PCs
Whether you're managing a work laptop and personal desktop, or coordinating between a design workstation and a test machine, the JCH462 makes switching seamless. The built-in driver installs quickly from the hub itself—no downloads required—and a convenient control bar appears on both screens to manage display modes and data sharing instantly.
Screen Sharing Options
Choose how you want to work:
-
Extended Mode: Use your second PC as an extended display for your main host, giving you more screen real estate for multitasking.
-
Duplicate Mode: Mirror the main PC's screen on the secondary computer, with the option to turn PC2's screen into a resizable PIP window for easy monitoring and control.
Screens automatically rotate and resize when using a Windows tablet in Extended mode, adapting to your workflow.
Massive Peripheral Expansion
The JCH462 includes three high-speed USB ports (two Type-A and one Type-C) for connecting a variety of peripherals directly to your main host PC. Note: peripheral ports are dedicated to the PC connected via the shorter cable (PC1).
Clipboard & File Sharing at Your Fingertips
No need for cloud uploads, external drives, or network sharing. Simply copy on one PC and paste on the other, or drag files directly between screens. The JCH462 makes data transfer between Windows devices faster and more intuitive than ever.
What's in the Box
- J5create JCH462 Wormhole Switch Display Sharing Hub (with integrated dual USB-C cables)
- Quick Installation Guide (QIG)
Full Specifications
| Model |
JCH462 |
| Product Type |
KVM Switching Hub / Display Sharing Hub |
| Compatibility |
Windows 11, Windows 10 (requires USB-C 3.2 port) |
| Connection Type |
Dual USB-C 3.2 Gen 1 (integrated cables) |
| Data Transfer Speed |
5 Gbps (USB 3.2 Gen 1) |
| USB Expansion Ports |
2 × USB Type-A (5 Gbps), 1 × USB-C (5 Gbps) |
| Peripheral Port Host |
PC1 (main host connected via shorter cable) |
| Display Modes |
Extend, Duplicate (with PIP support) |
| Touchscreen Support |
Yes (virtual multi-touch, gestures, stylus pen) |
| File Sharing |
Drag-and-drop, copy-and-paste between PCs |
| Keyboard/Mouse Switching |
Built-in KVM functionality |
| Dimensions (H × W × D) |
13mm × 35.8mm × 119.9mm |
| Weight |
92.1g |
| Material |
Aluminium (Space Gray) |
| Driver Installation |
Built-in (via WORMHOLE drive on both PCs) |
| Warranty |
12 months |
Specifications are sourced from the manufacturer product page and may be updated.
