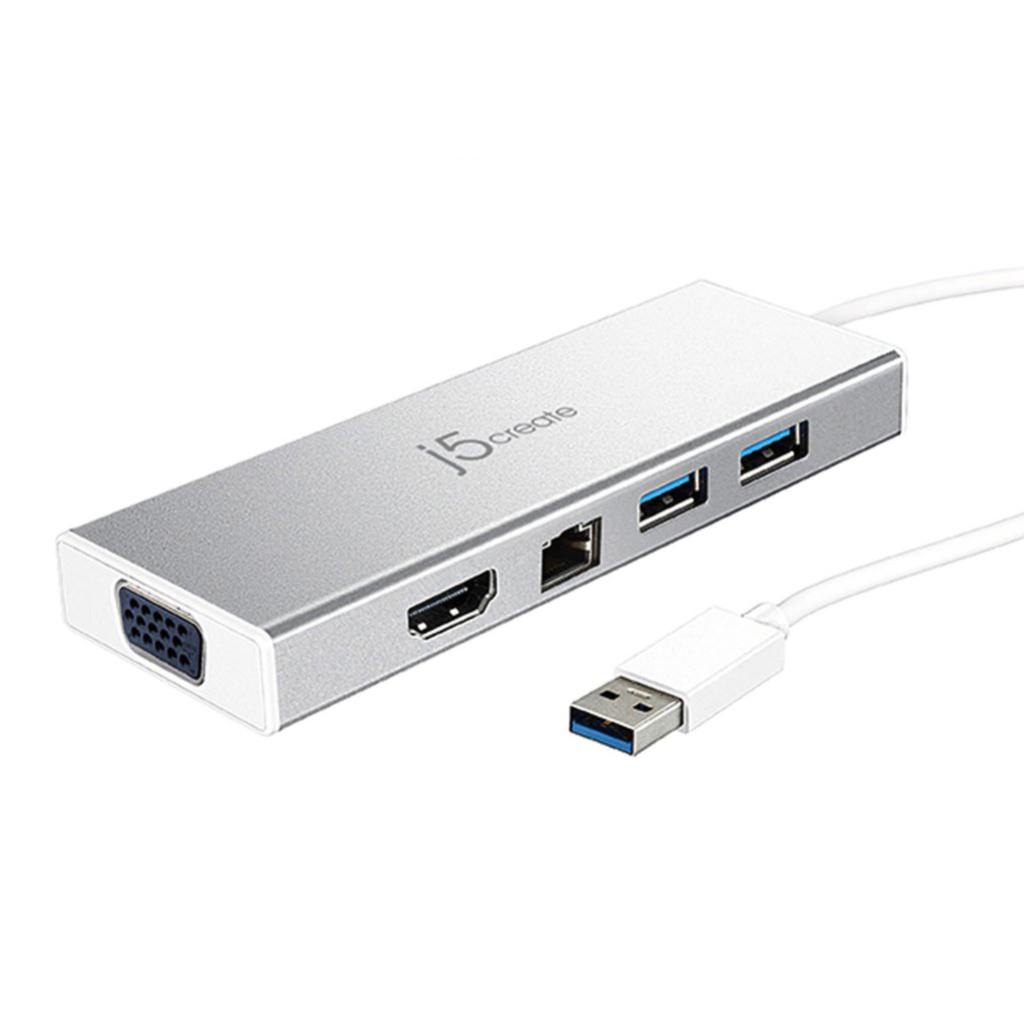

J5create JUD380 USB 3.0 Dual Display Mini Dock with HDMI, VGA & Ethernet
Transform your laptop into a complete workstation with the J5create JUD380 USB 3.0 Mini Dock. This compact docking station enables you to connect up to two external monitors via HDMI and VGA, add gigabit Ethernet for reliable wired networking, and expand your USB connectivity with two USB 3.0 ports. Perfect for remote workers, office setups, and mobile professionals who need powerful connectivity in a travel-friendly package.
Key Features
-
Dual Monitor Support: Connect HDMI and VGA displays simultaneously for up to 3 total screens (including your laptop display), supporting resolutions up to 2048 × 1152
-
SuperSpeed USB 3.0: Provides data transfer speeds up to 5 Gbps, 10 times faster than USB 2.0, with backward compatibility for older USB devices
-
Gigabit Ethernet Port: Add instant, reliable wired network connectivity via the integrated RJ45 port
-
Four Display Modes: Choose Mirror, Extended, Primary, or Rotation modes to customize your multi-monitor setup for presentations, productivity, or creative work
-
Compact & Travel-Friendly: Lightweight aluminium housing (82.6 g) with a 200 mm cable and space-saving design make it ideal for on-the-go workstations
-
Wide Compatibility: Works with Windows 7 or later and macOS 10.9 or later
Boost Your Productivity with Multi-Display Setups
The JUD380 makes it easy to create a dual-monitor workspace without the need for an expensive internal graphics card. Simply install the driver, plug the dock into your USB 3.0 port, and connect your monitors. Primary mode lets you run individual applications on each screen for maximum efficiency. Extended mode spreads your desktop across multiple displays, perfect for spreadsheets and multitasking. Mirroring mode clones your screen for presentations and collaboration.
Reliable Network & Peripheral Connectivity
The JUD380 includes a gigabit Ethernet port for fast, stable wired internet, ideal for video conferencing, large file transfers, and bandwidth-intensive tasks. Two USB 3.0 Type-A ports allow you to connect keyboards, mice, external drives, printers, and other peripherals. An optional micro USB power input port supplies additional power when using high-powered devices or multiple peripherals simultaneously.
Flexible Display Modes for Every Workflow
Whether you're designing, coding, presenting, or managing spreadsheets, the JUD380 adapts to your needs with support for Mirror, Extended, Primary, and Rotation display modes. Easily switch between configurations to match your workflow, from immersive multi-screen gaming to professional presentations in conference rooms and classrooms.
What's in the Box
- JUD380 USB 3.0 Mini Dock
- Quick Installation Guide
Full Specifications
Video & Display
| Video Outputs |
1 × HDMI, 1 × VGA (D-Sub) |
| Maximum Resolution |
Up to 2048 × 1152 |
| Display Modes |
Mirror, Extended, Primary, Rotation |
| Maximum Displays Supported |
2 external monitors + laptop display (3 total) |
Connectivity & Ports
| USB Ports |
2 × USB 3.0 (USB 3.1 Gen 1) Type-A |
| Host Interface |
USB 3.0 (USB 3.1 Gen 1) Type-A Male, 200 mm cable |
| Ethernet |
1 × RJ45 Gigabit Ethernet LAN |
| Power Input (Optional) |
1 × Micro USB 2.0 |
| USB Data Transfer Speed |
Up to 5 Gbps (USB 3.0) |
| USB Compatibility |
Backward compatible with USB 2.0 and 1.1 |
System Requirements
| Operating Systems |
Windows 7 or later (32-bit or 64-bit), macOS 10.9 or later |
| Port Requirement |
Available USB 3.0 port |
| Driver Installation |
Required for macOS and Windows (automatic installation available with network access) |
| macOS Display Limitation |
macOS 10.13.6 and later supports only one additional display (requires AirPlay support) |
Power
| Power Source |
USB Bus Powered |
| Typical Power Consumption |
2.25 W |
| Input Current |
0.9 A |
| Output Current |
0.45 A |
Physical
| Dimensions (W × D × H) |
119.6 mm × 42.8 mm × 14.15 mm |
| Weight |
82.6 g |
| Housing Material |
Aluminium |
| Cable Length |
200 mm (USB 3.0 host cable) |
| Certifications |
CE |
Warranty & Support
| Warranty |
2-Year Limited Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
