LapCabby Lyte 20 Single Door Mobile Phone USB Charging Cabinet
The LapCabby Lyte 20 Single Door Mobile Phone USB is a compact, secure charging solution designed to charge 20 mobile phones or smartphones up to 7" screen size simultaneously via a 20-port USB A Hub. Perfect for schools, hospitals, staff rooms, and commercial buildings, this cabinet combines fast charging technology with robust security features. Each device sits horizontally in its own compartment with room for protective cases, while 2.1 amps per port delivers optimum charging speed. The intelligent system auto-detects devices and prevents overcharging with trickle charge technology, keeping batteries at 100% without degradation.
Key Features
-
20-Device Capacity: Charges up to 20 mobile phones, smartphones, or handheld USB devices (including cases) up to 7" screen size
-
20-Port USB A Hub: Fast charging at 2.1 amps per port with auto-detection and trickle charge to prevent overcharging
-
Maximum Security: 6-plate lever activation locking system tested by independent locksmith, front and rear locks with separate lockable power compartment
-
Compact Footprint: Dimensions of W315 x D440 x H360mm make it ideal for busy areas with limited space
-
Horizontal Storage: Individual compartments (W220 x D205 x T30mm each) allow easy device pickup and return
-

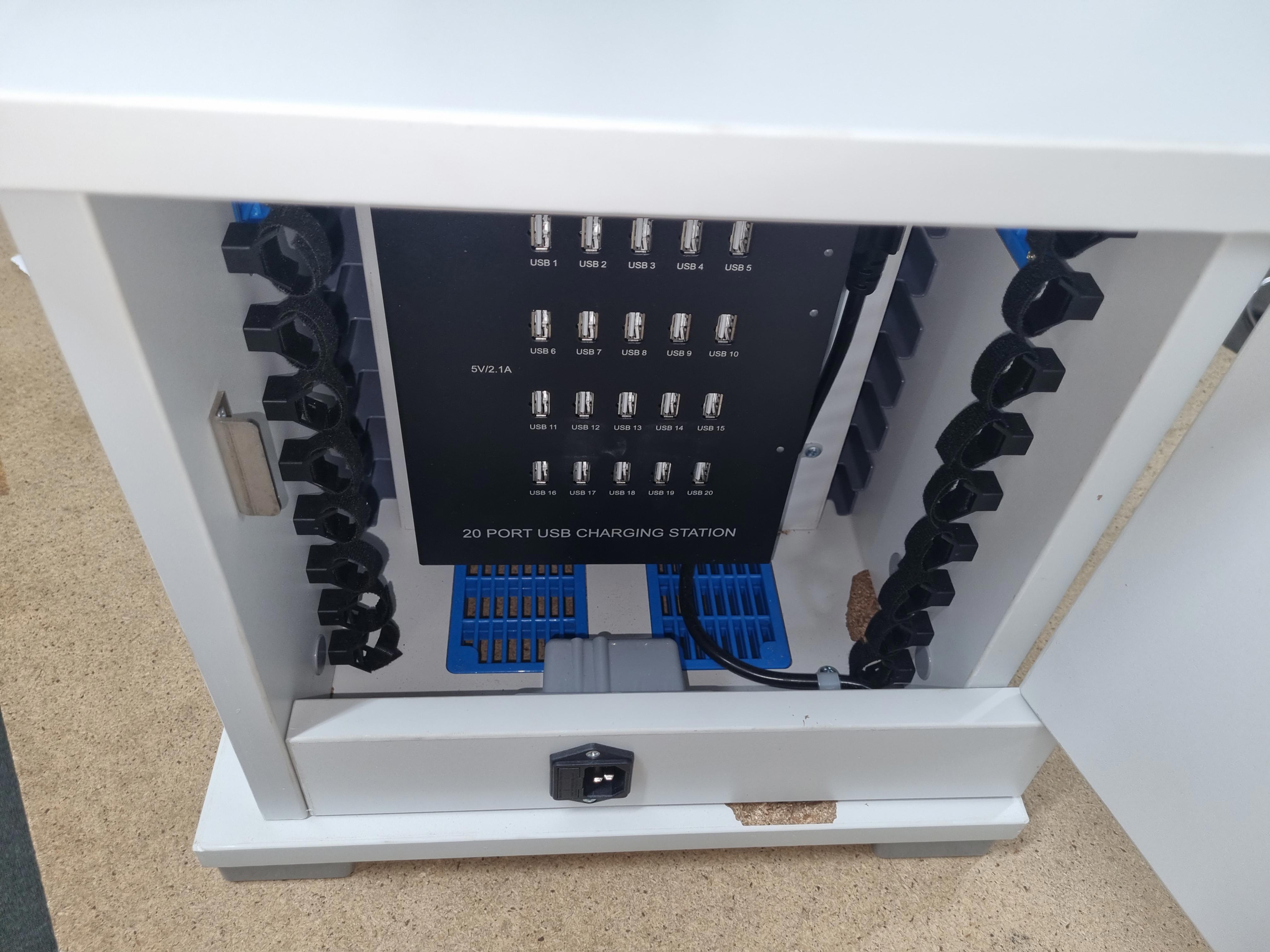

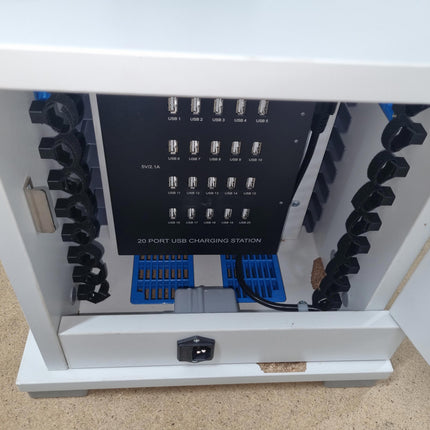

Cable Management: Isolated side power compartment with cable clip portholes and velcro fasteners keep cables organised and protected
Intelligent Charging Technology
This cabinet is equivalent to 20 x 10.5W USB A charging ports, replacing the need for multiple chargers, power sockets, and extension cables with a single mains connection. The intelligent charging system auto-detects each device individually and adjusts current output to the maximum level permitted by the manufacturer and USB specifications. Once fully charged, trickle charging maintains the battery at 100%, preventing degradation while saving space and power consumption.
Security & Safety
Built with security as the highest priority, the Lyte 20 features a key locking system with 6-plate lever activation and a double-sided key with two sets of teeth, making it impossible to pick. The isolated power compartment conceals electrical components and prevents cable loss or damage. USB A ports are located in the locked side compartment, preventing unauthorised cable removal. The cabinet is safety tested and certified to EN 62368-1:2014 by independent testing authorities.
Designed for High-Traffic Environments
The silent ventilation system with side and rear vents keeps devices cool with constant air circulation without a noisy fan. The front door opens 270 degrees for full, unrestricted access to all compartments. Weight-bearing non-marking feet ensure air circulation and easy cleaning, while inset door handles eliminate protruding parts and breakages. Tested to comply with Healthcare Infection Control Procedures, the unit can be thoroughly cleaned according to healthcare guidelines. Built to commercial-grade furniture standards, it passes rigorous tests for durability, stability, and weight-bearing loads.
Cable Compatibility
This unit accepts the following straight cable connectors:
- USB A to USB C
- USB A to Micro USB
- USB A to Apple Lightning
Not recommended for large connectors such as the Apple 30-pin dock connector or angled connectors.
What's in the Box
- Lyte 20 Single Door Mobile Phone USB Cabinet (fully assembled)
- 20-Port USB A Hub
- IEC socket with 1.8m / 6ft power cord
- Four non-marking feet (fitted)
- Wall fixing kit
- 2 sets of keys
- Instruction booklet
Full Specifications
| Model |
Lyte 20 Single Door Mobile Phone USB |
| SKU |
LYT20SDMPUSBBL |
| Device Capacity |
20 devices up to 7" screen size |
| Charging Interface |
20-port USB A Hub |
| Charging Output |
2.1 amps maximum per port |
| Equivalent Power |
20 × 10.5W USB A ports |
| Unit Dimensions |
W315 x D440 x H360mm (12.4" x 17.3" x 14.2") |
| Compartment Dimensions |
W220 x D205 x T30mm (8.7" x 8.1" x 1.2") each |
| Materials |
18mm MFC and 1.6mm powder coated steel |
| Locking System |
6-plate lever activation, front and rear locks |
| Power Connection |
IEC socket with 1.8m / 6ft power cord |
| Ventilation |
Silent side and rear vents, fanless design |
| Door Opening |
270 degrees for full access |
| Safety Certification |
EN 62368-1:2014 (Europe), UL Listed |
| Warranty |
Lifetime warranty (5 years electrical) |
| Assembly |
Ships fully assembled with feet fitted |
Specifications are sourced from the manufacturer product page and may be updated.
