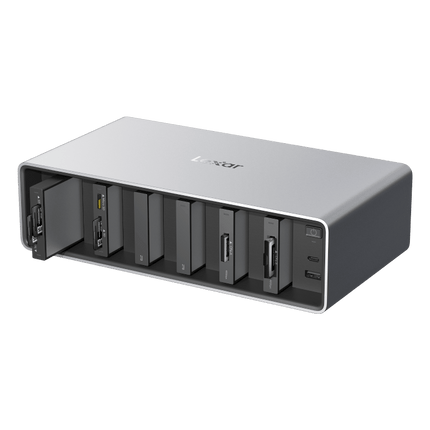

Lexar WF800 Professional Workflow 6-Bay Thunderbolt 4 Docking Station
The Lexar Professional Workflow Docking Station is built to exponentially accelerate your post-production process. Customize the 6 modular bays with reader and SSD modules to precisely suit your needs. Thunderbolt 4 connectivity delivers blazing 40Gbps speed and supports 8K display to compatible monitors. All six bays can work simultaneously to further maximize productivity, and a thoughtful design offers heat-dissipating, scratch-resistant aluminum housing, high-efficiency airflow channels, extra USB-C and USB-A ports, and a built-in fan to maintain maximum performance.
Customise Your Solution
Mix and match up to six reader and portable SSD modules to create the ultimate workflow for your post-production process, and daisy-chain up to six docking stations for even more possibilities.
-
6 modular bays: Use with Lexar Professional Workflow Portable SSDs and Readers to customize your workflow
-
Two 40Gbps Thunderbolt 4 bays: Ideal for CFexpress 4.0 card readers and high-speed data transfers
-
Four 10Gbps bays: Perfect for UHS-II SD card readers and Workflow Portable SSDs
-
Simultaneous operation: All six bays can work at once for parallel data transfers
Built for Performance
Accelerate your workflow with two 40Gbps Thunderbolt 4 bays and four 10Gbps bays for fast, efficient offloads.
-
Thunderbolt 4 connectivity: Amazing 40Gbps speed for rapid file transfers
-
Daisy-chaining support: Connect up to 6 additional docks or displays
-
Display support: One 8K display or two 4K displays
-
15W power delivery: Through the second Thunderbolt 4 port
Save Time with Simultaneous Offloads
Pair with Lexar Workflow Portable SSDs to back up content to up to six drives at once. Note: Maximum speed is up to 1050MB/s when pairing the portable SSD with Workflow.
Compatible with the Latest Memory Card Formats
The Professional Workflow dock is compatible with Lexar Workflow SD/microSD UHS-II Card Reader, Workflow Dual-Slot SD UHS-II Card Reader, Workflow CFexpress 4.0 Type A Card Reader, Workflow CFexpress 4.0 Type B Card Reader, and Workflow Portable SSD Drives.
Designed to Do More
With 6 bays, extra USB ports, the ability to daisy-chain multiple docks and connect to supported displays to edit in 8K, plus a 140W GaN charger, the Workflow dock was thoughtfully designed to address your post-production pain points.
-
Front connectivity: One 10Gbps USB-C port and one 10Gbps USB-A port
-
Rear connectivity: Two Thunderbolt 4 ports (40Gbps each)
-
140W GaN charger: Includes replaceable international plug adapters
-
Power switch: Conveniently located on the front panel
Cool Factor Included
From heat-dissipating, scratch-resistant aluminum to its built-in, temperature-sensitive dual-phase fan, the Professional Workflow Docking Station is made to fast-track your workflow.
Software Compatibility
Works seamlessly with Adobe Premiere Pro, Final Cut Pro, DaVinci Resolve, Adobe After Effects, Adobe Lightroom, Adobe Bridge, Adobe Photoshop, Photo Mechanic, and Phase One.
What's in the Box
- Lexar Professional Workflow Dock
- 0.8m Thunderbolt 4 Cable
- 140W Power Adapter
- 1.5m Power Cable
- Manual
Full Specifications
| Model |
WF800 |
| Weight |
1570 g (3.5 lbs approx.) |
| Dimensions (L × W × H) |
270 × 143.5 × 78 mm |
| Operating Systems |
Windows 10/11; macOS 11 (Big Sur) or later |
| Module Bays |
6 total (2 × 40Gbps Thunderbolt 4, 4 × 10Gbps USB 3.2 Gen 2) |
| Front Ports |
1 × USB-C (10Gbps), 1 × USB-A (10Gbps) |
| Rear Ports |
2 × Thunderbolt 4 (40Gbps), 1 × USB-C Power Port |
| Display Support |
One 8K display or two 4K displays |
| Power Delivery |
Up to 15W via Thunderbolt 4 port |
| Power Adapter |
140W GaN charger with replaceable plug |
| Housing Material |
Heat-dissipating, scratch-resistant aluminum |
| Cooling System |
Built-in temperature-sensitive dual-phase fan with high-efficiency airflow channels |
| Compatible Software |
Adobe Premiere Pro, Final Cut Pro, DaVinci Resolve, Adobe After Effects, Adobe Lightroom, Adobe Bridge, Adobe Photoshop, Photo Mechanic, Phase One |
| Warranty |
3-year limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
