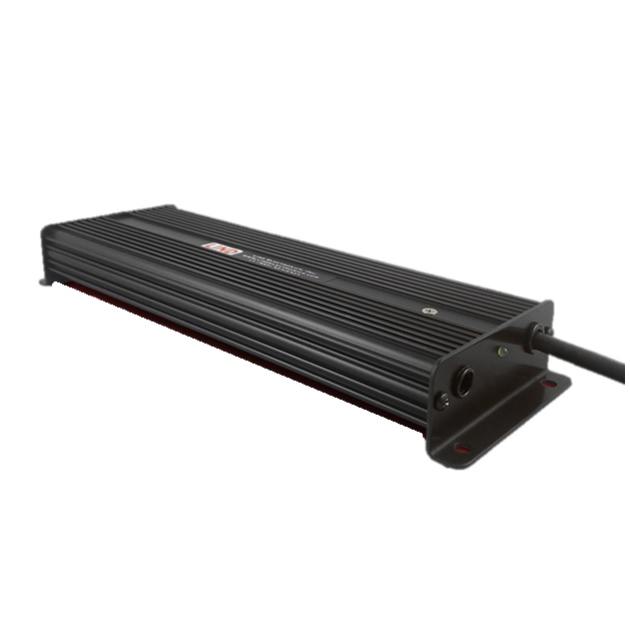

Lind PA1580I-3200 Isolated DC/DC Power Adapter for Panasonic Toughbook
The Lind PA1580I-3200 is a professional-grade isolated DC/DC power adapter designed to provide reliable, regulated power to Panasonic Toughbook laptops and vehicle docking stations from a 20-60 VDC power source. Built for demanding mobile environments, this adapter features electrical isolation to prevent ground loops and comprehensive protection circuitry to safeguard your critical equipment in police vehicles, emergency services, field operations, and industrial applications.
Why Choose the Lind PA1580I-3200?
-
Wide Input Voltage Range: Accepts 20-60 VDC input, making it compatible with a broad range of vehicle electrical systems
-
Electrical Isolation: Prevents ground loops and protects sensitive electronics from voltage spikes and surges
-
Rugged Construction: Engineered for harsh mobile environments with extreme temperatures and vibration
-
Comprehensive Protection: Built-in undervoltage and overcurrent shutdown protection safeguards your equipment
-
Long Cables: 72-inch (183 cm) input and output cables provide flexible installation options
-
Panasonic Compatible: Specifically designed for Panasonic Toughbook rugged laptops and docking stations
Professional-Grade Protection & Reliability
The PA1580I-3200 incorporates electrical isolation between input and output, eliminating the risk of ground loops that can damage sensitive electronics. Voltage spikes and surges occurring on the vehicle's power line are filtered by the adapter, providing clean, stable power to your Toughbook. The rugged design ensures reliable operation in temperatures from -30°C to +80°C, making it ideal for public safety, military, transportation, and industrial mobile computing applications.
Advanced Safety Features
Protection circuitry includes input undervoltage shutdown that activates if input voltage drops below 10.5 VDC (typical), and output overcurrent shutdown at approximately 9.25A to prevent damage from short circuits or overload conditions. These features ensure both your laptop and the adapter are protected in demanding field environments.
Flexible Installation
The adapter features a bare wire 72-inch input cable for permanent hardwired installation in vehicles, and a 5.5mm x 2.5mm output connector with 72-inch cable to connect to your Panasonic Toughbook or docking station. The long cables allow the adapter to be mounted in convenient, out-of-the-way locations while maintaining easy connections to power sources and computing equipment.
What's in the Box
- Lind PA1580I-3200 DC/DC Power Adapter
- 72-inch bare wire input cable
- 72-inch output cable with 5.5mm x 2.5mm connector
Full Specifications
| Model |
PA1580I-3200 |
| Type |
Isolated DC/DC Power Adapter |
| Input Voltage Range |
20-60 VDC |
| Input Cable |
Bare wire, 72 inches (183 cm) |
| Output Cable |
5.5mm x 2.5mm connector, 72 inches (183 cm) |
| Isolation |
Electrical isolation between input and output |
| Input Undervoltage Shutdown |
Below 10.5 VDC (typical) |
| Output Overcurrent Shutdown |
Approximately 9.25A |
| Compatibility |
Panasonic Toughbook laptops and docking stations |
| Manufacturer |
Lind Electronics (Gamber-Johnson) |
Specifications are sourced from the manufacturer product page and may be updated.
