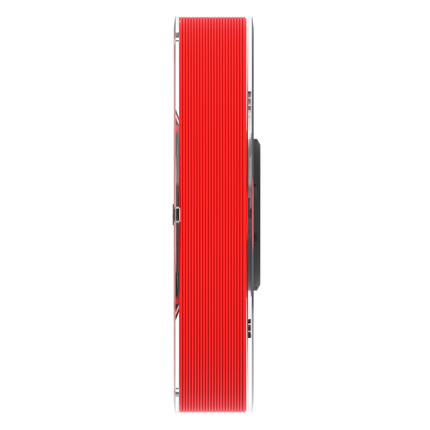

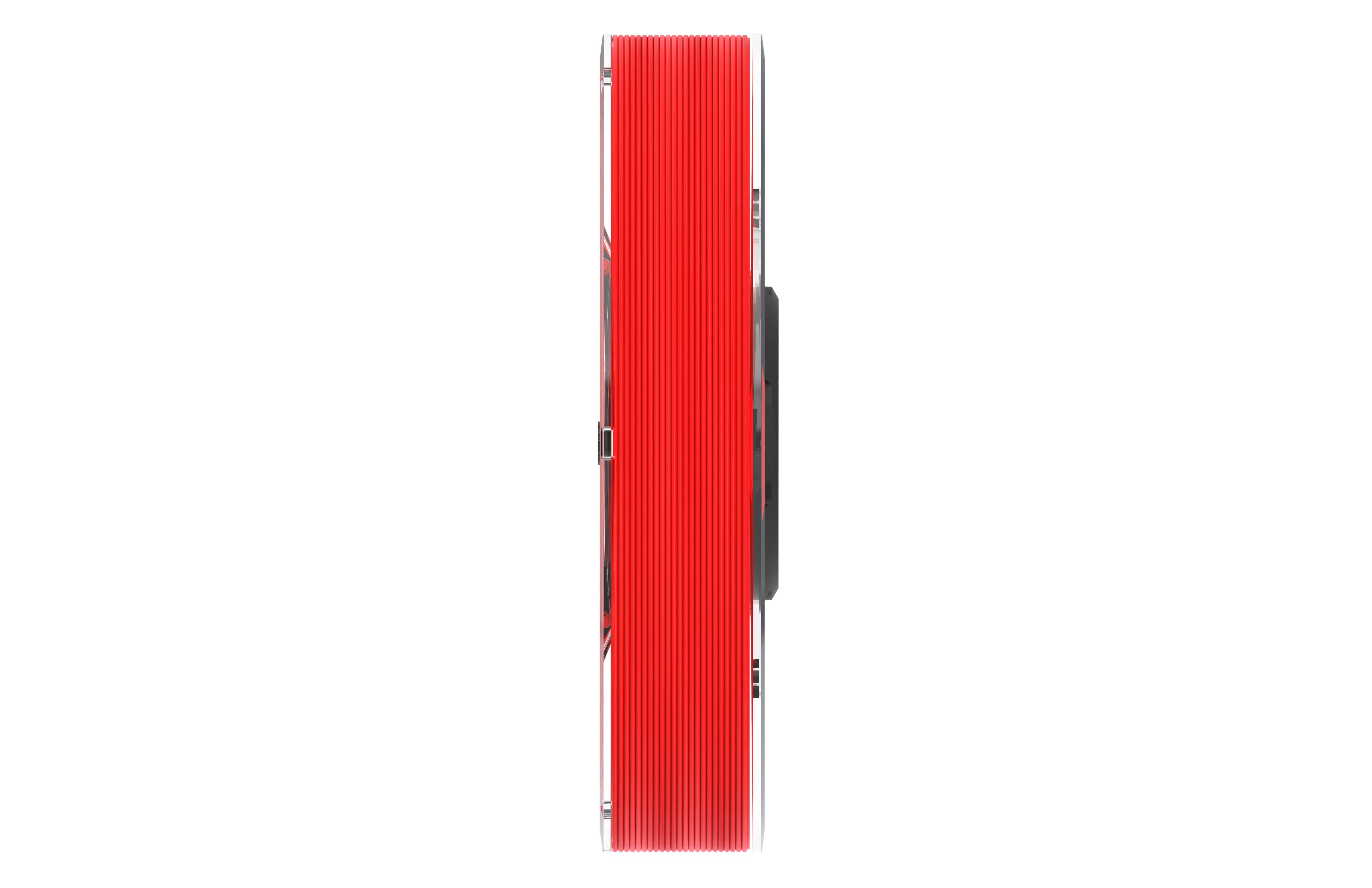

MakerBot ASA Red Filament 0.65kg for METHOD X 3D Printer
The MakerBot METHOD X ASA Filament in Red is a premium, weather-resistant 3D printing material engineered for demanding outdoor applications. With superior UV resistance and enhanced moisture resistance, this ASA filament retains its gloss, colour, and mechanical properties even when exposed to harsh outdoor elements like sunlight and rain. Ideal for functional prototypes and end-use parts in automotive, agriculture, power and utilities, oil and gas, and mass transit industries.
Why You'll Love This Filament
-
UV and Weather Resistant: Superior UV resistance ensures long-lasting colour and mechanical performance outdoors
-
High Strength and Rigidity: 330,000 psi tensile modulus and 7,100 psi tensile strength for durable functional parts
-
Smart Spool Technology: RFID chip provides material type, colour, and remaining amount directly to MakerBot Print
-
Heat Deflection: Withstands temperatures up to 204°F (96°C) for demanding applications
-
Compatible with SR-30 Support: Dissolvable support material for unrestricted geometric freedom
-
Optimised for METHOD X: Requires 1XA extruder and 80°C heated chamber for professional results
Weather-Resistant Performance for Outdoor Applications
Unlike standard ABS, MakerBot Precision ASA combines the strength and printability of ABS with enhanced UV and chemical resistance. This makes it the ideal choice for parts that will be exposed to sunlight and moisture over extended periods, such as agricultural equipment, transportation components, and utility industry products. The thermoplastic formulation helps retain gloss, colour, and mechanical properties when exposed to outdoor elements.
Smart Spool Technology for Seamless Printing
Each spool features Smart Spool technology with an integrated RFID chip that transmits essential information to your MakerBot METHOD X printer, including material type, colour, and the amount of filament remaining. A built-in desiccant maintains low moisture levels inside the drawer bay, ensuring optimal material quality and consistent print results.
Professional-Grade Strength and Durability
MakerBot ASA filament delivers high-performance mechanical properties suitable for functional prototypes and production parts. With a flexural modulus of 330,000 psi and tensile strength of 7,100 psi, your prints will withstand demanding applications. The material also offers excellent impact resistance and dimensional accuracy of ±0.2mm for precision parts.
What's in the Box
- 1 × MakerBot ASA Red Filament Spool (0.65kg / 1.43lb)
- Vacuum-sealed metalized polyester storage bag
Full Specifications
| Material Type |
ASA (Acrylonitrile Styrene Acrylate) |
| Colour |
Red |
| Net Weight |
0.65 kg (1.43 lb) |
| Filament Diameter |
1.75 mm |
| Spool Diameter |
21.8 cm (8.6 in) |
| Spool Width |
4.2 cm (1.65 in) |
| Heat Deflection @ 66 psi (ASTM 648) |
96°C (204°F) |
| Flexural Strength (Method 1, 0.05"/min) |
78 MPa (11,000 psi) |
| Flexural Modulus (Method 1, 0.05"/min) |
2,300 MPa (330,000 psi) |
| Tensile Strength at Yield |
49 MPa (7,100 psi) |
| Tensile Modulus (ISO 527) |
2,100 MPa (310,000 psi) |
| Strain at Yield (Elongation) |
>6% |
| Notched Impact Strength (ASTM D256) |
140 J/m (2.6 ft-lb/in) |
| Dimensional Accuracy |
±0.2 mm (±0.007 in) |
| Printer Compatibility |
MakerBot METHOD X |
| Extruder Compatibility |
Material Extruder 1XA, Support Extruder 2XA |
| Support Material |
Stratasys SR-30 (dissolvable) |
| Chamber Temperature Required |
Minimum 80°C |
| Smart Spool Technology |
RFID chip with material tracking |
| Storage |
Vacuum-sealed metalized polyester bag |
| Part Number |
375-0035A |
Specifications are sourced from the manufacturer product page and may be updated. Actual printed part specs may vary based on part geometry and print parameters selected.
