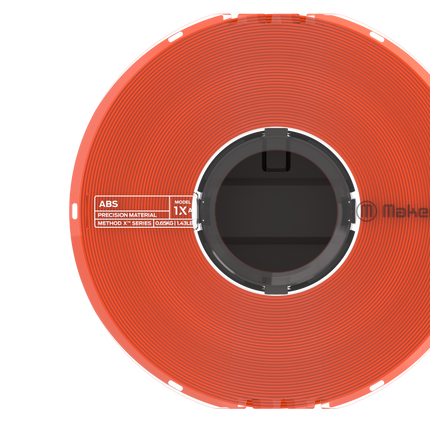

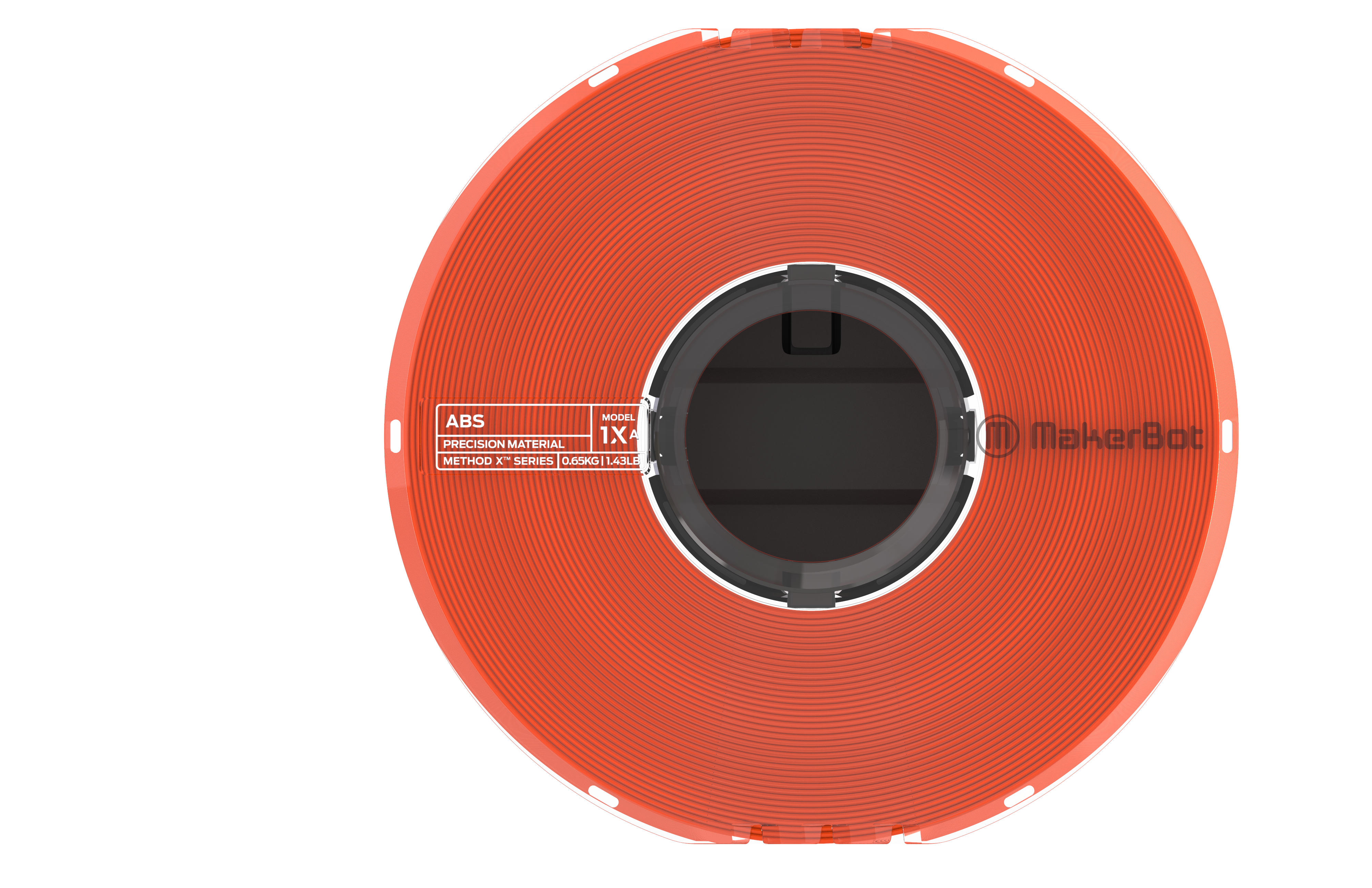

MakerBot METHOD X ABS Filament Orange 0.65kg with Smart Spool RFID
The MakerBot METHOD X True Color ABS Filament in Orange is a production-grade 3D printing material optimized for the MakerBot METHOD X 3D printer. Engineered to match the performance characteristics of injection-molded ABS, this 0.65kg (1.43lb) spool delivers exceptional strength, rigidity, and precision for manufacturing tools, end-use parts, and functional prototypes. The integrated Smart Spool RFID chip provides real-time information on material type, color, and remaining filament, while the built-in desiccant maintains optimal moisture levels for consistent print quality.
Key Features
-
Production-Grade ABS Material: Engineered without modifiers to match injection-molded ABS performance for professional applications
-
High Strength & Rigidity: Features a 348,000 psi tensile modulus and can withstand temperatures up to 183°F (99°C)
-
Smart Spool Technology: Integrated RFID chip transmits material type, color, and amount remaining directly to the printer
-
Optimal Storage: Built-in desiccant maintains low moisture levels inside the drawer bay for consistent quality
-
True Color Orange: Vibrant, consistent orange color ideal for prototypes, tools, and end-use parts
-
Wide Application Range: Perfect for manufacturing tools, jigs, fixtures, end-use parts, and functional prototypes
Professional-Grade Performance
ABS (acrylonitrile butadiene styrene) is one of the most widely used plastics in injection molding, found in products ranging from LEGO bricks to automotive components. This MakerBot ABS filament is formulated without modifiers to deliver the same excellent thermal and mechanical properties as traditional injection-molded ABS. With a tensile strength of 43 MPa and a heat deflection temperature of 99°C (210°F), it's built for demanding applications where strength and temperature resistance are critical.
Smart Spool Convenience
The Smart Spool system eliminates guesswork from your 3D printing workflow. An integrated RFID chip communicates directly with the MakerBot METHOD X printer, automatically identifying material type, color, and remaining quantity. The spool also includes a desiccant to keep moisture levels low, ensuring optimal print quality and material performance over time.
Ideal Applications
-
Manufacturing Tools: Create custom jigs, fixtures, and tooling at lower cost with faster turnaround
-
End-Use Parts: Produce low-volume production parts and components requiring high geometric complexity
-
Functional Prototypes: Develop prototypes with real-world mechanical and thermal performance
-
Custom Components: Build parts for automotive, electronics, power tools, and consumer products
Compatibility
This filament is designed specifically for the MakerBot METHOD X 3D printer using the Material Extruder 1XA. It works seamlessly with Stratasys SR-30 support material for complex geometries requiring support structures.
What's in the Box
- 1 × MakerBot METHOD X ABS Filament Spool (Orange, 0.65kg)
- Vacuum-sealed metalized polyester storage bag
Full Specifications
| Material Type |
ABS (Acrylonitrile Butadiene Styrene) |
| Color |
Orange |
| Net Weight |
0.65 kg (1.43 lb) |
| Filament Diameter |
1.75 mm |
| Spool Diameter |
21.8 cm (8.6 in) |
| Spool Width |
4.2 cm (1.65 in) |
| Printer Compatibility |
MakerBot METHOD X |
| Extruder Compatibility |
Material Extruder 1XA, Support Extruder 2XA |
| Support Material |
Stratasys SR-30 |
| Heat Deflection Temperature (ASTM D648, 66 psi) |
99°C (210°F) |
| Tensile Strength at Yield (ASTM D638, 50 mm/min) |
43 MPa (6,236 psi) |
| Tensile Modulus (ASTM D638, 50 mm/min) |
2,400 MPa (348,000 psi) |
| Flexural Modulus (ASTM D790, 15 mm/min) |
2,600 MPa (377,000 psi) |
| Strain at Yield - Elongation |
>5.6% |
| Notched Impact Strength (ASTM D256) |
192 J/m (3.6 ft-lb/in) |
| Dimensional Accuracy |
±0.2 mm (±0.007 in) |
| Smart Spool Technology |
Integrated RFID chip with desiccant |
| Storage |
Vacuum-sealed metalized polyester bag |
| Manufacturer Part Number |
375-0022A |
| UPC |
812510031432 |
Specifications are sourced from the manufacturer product page and may be updated.
