NetComm NF18ACV AC1600 VDSL/ADSL Modem Router with Dual-Band WiFi
The NetComm NF18ACV is a smart residential VDSL2/ADSL2+ wireless gateway that brings an enhanced and blazing fast broadband experience to the home. Featuring AC1600 dual-band WiFi, Gigabit Ethernet ports, and NBN/UFB readiness, this 3-in-1 gateway provides versatile connectivity for ADSL networks, VDSL, and all NBN and UFB fibre network options including FTTN, FTTB, and FTTH.
Triple Play Services
The NF18ACV is a triple play services enabler that supports the transmission of high-speed data, multi HD/UHD IPTV and over-the-top video streaming, plus a VoIP feature for HD quality voice calls with the capacity to connect 2 phones via dual RJ11 ports.
Enhanced Wireless Experience
The gateway embeds the 802.11ac WiFi standard for powerful access point and HD video grade wireless capabilities. It allows both 2.4GHz and 5GHz bands to work concurrently, ensuring interoperability with all wireless equipment in the house. The NF18ACV is equipped with 3 × 3 MIMO internal antennas to provide optimum reception while offering a powerful signal throughout the home.
-
AC1600 WiFi: Up to 1600 Mbps combined speed across dual bands
-
Dual-band concurrent: 2.4GHz and 5GHz for multiple high-speed wireless connections
-
WPS push buttons: Quick and easy connection of wireless devices on both bands
Media Sharing and Network Storage
Connect a USB device to the NF18ACV gateway to access and share all A/V media and file content with all of the connected devices in the house in real time. The NF18ACV becomes the media hub of the house using DLNA/UPnP standard and enhanced wireless capabilities to create a reliable high-speed home network.

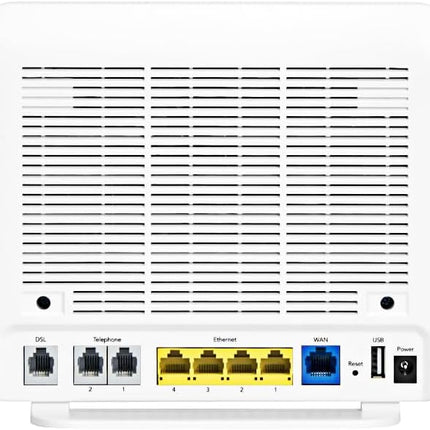

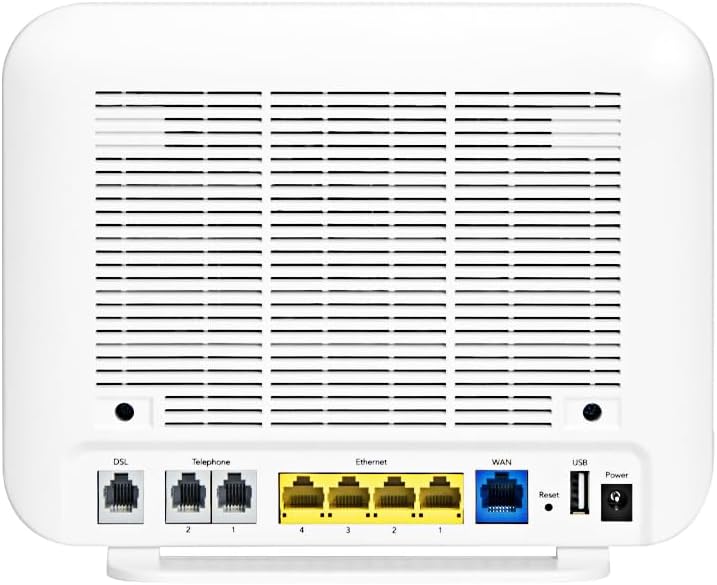

Universal Connectivity
-
DSL Port: RJ11 for VDSL2/ADSL2+ connection
-
4 × Gigabit Ethernet LAN ports: 10/100/1000 Mbps
-
1 × Gigabit Ethernet WAN port: 10/100/1000 Mbps for NBN/UFB fibre connection
-
2 × Telephone ports: RJ11 for VoIP handsets
-
1 × USB 2.0 port: For network attached storage and media sharing
Easy Setup and Management
NetComm's responsive user interface design offers effortless navigation and greater visibility into the home network for an improved customer experience. With the NetComm Quick Start Wizard, the first-time setup experience is designed to be quick and easy. A map of connected devices provides a simplified view of the home network, helping end users to identify connection issues faster.
What's in the Box
- 1 × NetComm NF18ACV VDSL2/ADSL2+ Dual Band AC1600 Gigabit Gateway
- 1 × RJ45 Ethernet cable
- 1 × RJ11 Telephone cable
- 1 × WiFi Security card
- 1 × Warranty card
- 1 × Power supply (12V/2A)
- 1 × Quick Start Guide
Full Specifications
| Model |
NF18ACV |
| Product Type |
Enhanced VDSL2/ADSL2+ Dual Band AC1600 Wireless Gigabit Gateway with VoIP |
| WiFi Standard |
IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11d |
| WiFi Speed |
AC1600 (up to 1600 Mbps combined) |
| Frequency Bands |
Dual-band concurrent 2.4GHz and 5GHz |
| Antennas |
3 × 3 MIMO internal antennas |
| DSL Connection |
VDSL2/ADSL2+ via RJ11 |
| Ethernet LAN Ports |
4 × Gigabit Ethernet 10/100/1000 Mbps |
| Ethernet WAN Port |
1 × Gigabit Ethernet 10/100/1000 Mbps |
| Telephone Ports |
2 × RJ11 FXS VoIP ports |
| USB Port |
1 × USB 2.0 |
| WPS |
2 × WPS push buttons (one for each band) |
| NBN/UFB Ready |
Yes (FTTN, FTTB, FTTH) |
| Media Sharing |
DLNA/UPnP via USB NAS |
| Management |
TR-069 remote device management |
| Dimensions (W × H × D) |
216 mm × 174 mm × 28 mm |
| Weight |
558 g |
| Power Supply |
12V/2A |
| Warranty |
12 months limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
