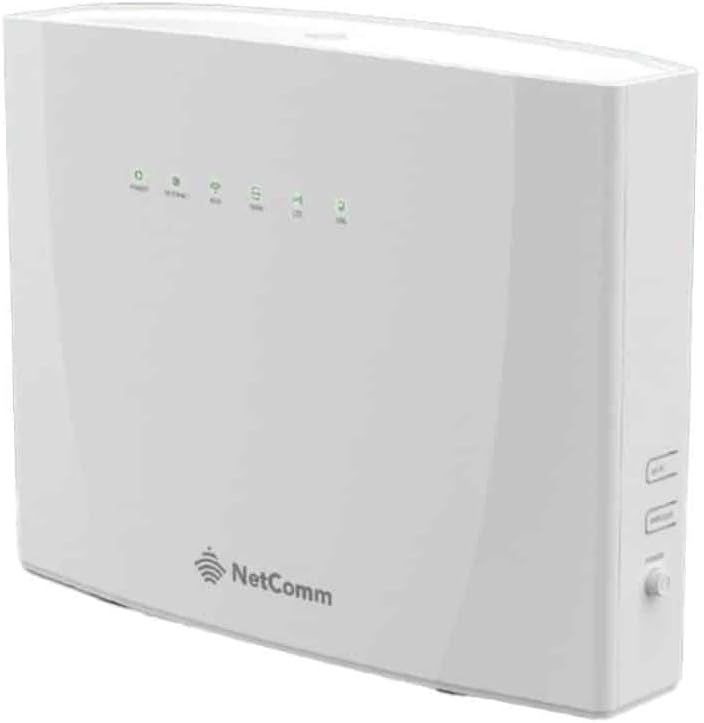

NetComm NL20MESH Wi-Fi 6 4G LTE CloudMesh Gateway with Wi-Fi AutoPilot
Experience the future of home networking with the NetComm NL20MESH Wi-Fi 6 CloudMesh Hybrid Gateway. Featuring Wi-Fi 6 (802.11ax) technology, 4G Cat 6 LTE backup, and intelligent Wi-Fi AutoPilot that constantly optimises your network, this gateway delivers enterprise-grade performance for modern connected homes. With VDSL2/ADSL2+ support, VoIP capability for two phone lines, and seamless mesh networking, it's the ultimate solution for NBN and UFB connections.
Wi-Fi 6 Performance
Wi-Fi 6 is the next generation of wireless technology, delivering significant speed, performance and efficiency improvements. With up to four times more device capacity than Wi-Fi 5, the NL20MESH brings improved performance to more devices on your network simultaneously. Stream higher quality content, game without lag, and connect all your smart home devices while maintaining optimal performance throughout your home.
4G LTE Hybrid Connectivity
Stay connected without interruption thanks to the integrated 4G Cat 6 modem. The NL20MESH provides two critical advantages:
-
4G Backup: If your fixed line service is interrupted, the gateway automatically switches to the 4G mobile network, then seamlessly switches back once the fixed line service resumes
-
Faster Internet Onboarding: Get connected instantly when setting up your new device without waiting for your fixed line service to be activated
Wi-Fi AutoPilot Intelligence
Every CloudMesh Gateway includes the revolutionary Wi-Fi AutoPilot technology. This intelligent system constantly scans and analyses your Wi-Fi network environment, and if any detrimental changes are detected, automatically adjusts the gateway's Wi-Fi parameters. Using a patented weighted algorithm, it ensures every Wi-Fi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level, utilising the closest Wi-Fi access point.
CloudMesh Whole-Home Wi-Fi
Extend your Wi-Fi coverage by pairing the NL20MESH with CloudMesh Satellites (NS-02) to form a powerful whole-home Wi-Fi mesh network. All control and settings are centralized on the gateway, which becomes the mesh master node, while Wi-Fi client devices roam seamlessly between the gateway and satellites. Setup is simple with zero-touch provisioning via cloud portal or quick in-home pairing using WPS buttons.
Universal NBN and UFB Compatibility
Designed for Australian and New Zealand broadband services, the NL20MESH connects with all NBN and UFB technologies:
-
Gigabit WAN port for FTTC, HFC and FTTH connections
-
VDSL2/ADSL2+ technologies for FTTN and FTTB connections
-
VoIP with two RJ11 phone ports for HD quality voice calls
-
4 x Gigabit LAN ports for high-speed wired connections
Enterprise-Grade Management
The CloudMesh Wi-Fi Analytics Platform provides full visibility into the health of your home network. This integrated solution enables proactive diagnostic, management, and control of your Wi-Fi environment, helping resolve even the most elusive Wi-Fi problems before they impact your experience.
Key Features
-
Wi-Fi 6 (802.11ax): Next-generation wireless with concurrent dual-band 2.4GHz/5GHz
-
4G Cat 6 LTE backup: Automatic failover to mobile network
-
Wi-Fi AutoPilot: Patented automatic network optimisation
-
CloudMesh enabled: Expandable with NS-02 satellites
-
VDSL2/ADSL2+ and Gigabit WAN: Universal NBN/UFB compatibility
-
VoIP support: Two phone ports for HD voice calls
-
Advanced security: WPA3-Personal, firewall, MAC filtering
-
Quality of Service (QoS): Prioritise traffic for gaming and streaming
-
TR-069 support: Remote management and auto-provisioning
What's in the Box
- NetComm NL20MESH Wi-Fi 6 CloudMesh Hybrid Gateway
- 12V 2A power supply unit
- Ethernet cable
- Quick start guide
- Wi-Fi security card
Full Specifications
Wireless
| Wi-Fi Standard |
IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Frequency Bands |
Concurrent dual-band 2.4GHz and 5GHz |
| Wireless Security |
WPA, WPA2, WPA3-Personal |
| WPS |
Wi-Fi Protected Setup button |
WAN Connectivity
| xDSL |
VDSL2/ADSL2+ |
| Ethernet WAN |
1 x Gigabit RJ45 port |
| 4G LTE |
Cat 6 modem with SIM card slot |
| WAN Protocols |
PPPoE, DHCP client, Static IP |
LAN & Interfaces
| LAN Ports |
4 x RJ45 10/100/1000Mbps Gigabit Ethernet |
| Phone Ports |
2 x RJ11 VoIP ports |
| Buttons |
Reset button, WPS button, Power switch |
| LED Indicators |
Power, WAN, LAN, WiFi, WPS, 4G |
VoIP
| Protocol |
SIP 2.0 |
| Codecs |
G.711, G.723, G.726 |
| Fax |
T.38 Fax Relay |
| Phone Ports |
2 x RJ11 for HD quality voice calls |
Advanced Features
| CloudMesh |
Whole-home mesh with NS-02 satellites |
| Wi-Fi AutoPilot |
Automatic network optimisation |
| Quality of Service |
Traffic prioritisation (QoS) |
| Security |
Firewall, MAC filtering, DMZ |
| Routing |
Static Route, Dynamic Route (RIP v1/v2) |
| Management |
Web-based UI, Remote Login, TR-069, SNMP, UPnP, Syslog |
| Provisioning |
Zero-touch via cloud portal, WPS pairing |
Environmental & Physical
| Dimensions |
266mm (L) × 74mm (W) × 207.5mm (H) |
| Weight |
835g |
| Operating Temperature |
0 to 40°C |
| Operating Humidity |
10 to 95% non-condensing |
| Storage Temperature |
-20 to 70°C |
| Storage Humidity |
5 to 95% non-condensing |
Power
| Input Voltage |
12V DC, 2A |
| Power Supply |
External power adapter included |
Compliance
| Certification |
RCM, NZ Telepermit |
Specifications are sourced from the manufacturer product page and may be updated.
