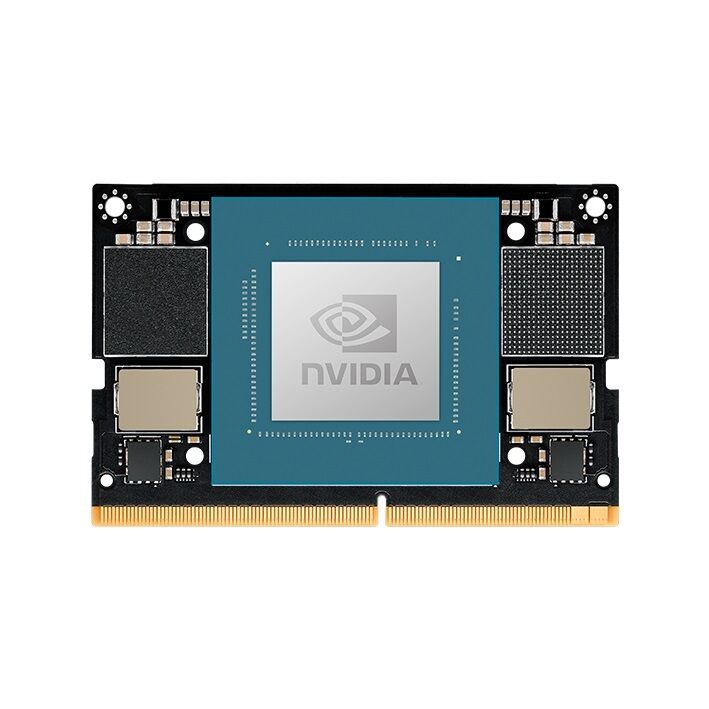

NVIDIA Jetson Orin Nano 4GB AI Module
The NVIDIA Jetson Orin Nano 4GB Module delivers up to 20 TOPS of AI performance in the smallest Jetson form-factor, with power configurable from 5W to 10W. This gives you up to 40X the performance of the previous generation NVIDIA Jetson Nano and sets a new baseline for entry-level edge AI computing. Perfect for robotics, vision AI systems, industrial inspection, and intelligent edge devices, this system-on-module brings powerful AI capabilities to compact, energy-efficient applications.
Why Choose the Jetson Orin Nano 4GB?
-
20 TOPS AI Performance: Run multiple concurrent AI inference pipelines with ease
-
512-Core NVIDIA Ampere GPU: Features 16 Tensor Cores for accelerated AI workloads
-
6-Core Arm Cortex-A78AE CPU: High-performance processing for diverse applications
-
4GB LPDDR5 Memory: 64-bit wide, 34 GB/s bandwidth at 2133 MHz
-
Low Power Operation: Configurable from 5W to 10W for energy-efficient deployments
-
Pin-Compatible Design: Compatible with Jetson Orin NX for flexible product development
Powerful Edge AI Architecture
Built on the NVIDIA Ampere architecture, the Jetson Orin Nano 4GB features third-generation Tensor Cores that deliver exceptional performance per watt with support for sparsity, enabling up to double the throughput for Tensor Core operations. The module includes a complete processing pipeline with video decode engine, ISP, video image compositor, audio processing engine, and video input block to accelerate all parts of your AI application.
High-Speed Connectivity & Expansion
Despite its compact 70mm × 45mm 260-pin SODIMM footprint, the Jetson Orin Nano 4GB Module includes comprehensive high-speed interfaces:
-
PCIe: One PCIe x4 lane plus three PCIe x1 endpoints
-
USB: USB 3.2 and USB 2.0 support
-
Camera Interfaces: Up to four cameras via MIPI CSI-2 with eight lanes
-
Networking: Gigabit Ethernet (GbE)
-
Storage: M.2 Key M and M.2 Key E connector support, NVMe storage ready
-
Display: DisplayPort 1.4a and HDMI 2.1 support
Complete NVIDIA Software Ecosystem
All NVIDIA Jetson modules share the same NVIDIA JetPack SDK, enabling you to develop once and deploy everywhere. The software stack includes Isaac for robotics, DeepStream for vision AI, and Riva for conversational AI. Accelerate development with NVIDIA Omniverse Replicator for synthetic data generation and the NVIDIA TAO toolkit to fine-tune pretrained AI models from the NGC catalog.
Ideal Applications
- Autonomous mobile robots (AMR) and delivery robots
- Industrial inspection and quality assurance systems
- Retail analytics and smart cameras
- Vision AI and multi-camera systems
- Entry-level edge AI consumer devices
- Drone and sensor-based robotics
What's in the Box
- NVIDIA Jetson Orin Nano 4GB Module (SOM only - carrier board sold separately)
Full Specifications
GPU
| GPU Architecture |
NVIDIA Ampere |
| GPU Cores |
512 CUDA cores |
| Tensor Cores |
16 |
| AI Performance |
Up to 20 TOPS (Sparse INT8) / 10 TOPS (Dense INT8) |
CPU
| CPU |
6-core Arm Cortex-A78AE |
| Architecture |
ARM 64-bit |
Memory
| Memory |
4GB LPDDR5 |
| Memory Bus Width |
64-bit |
| Memory Bandwidth |
34 GB/s |
| Memory Frequency |
2133 MHz |
Storage
| Storage Support |
NVMe (via carrier board) |
I/O & Connectivity
| PCIe |
1 × PCIe x4 + 3 × PCIe x1 |
| USB |
USB 3.2, USB 2.0 |
| Camera Interfaces |
Up to 4 cameras via MIPI CSI-2 (8 lanes via virtual channels) |
| Networking |
Gigabit Ethernet |
| Display Output |
DisplayPort 1.4a, HDMI 2.1 |
Video Encode/Decode
| Video Encode |
1080p60 (H.265) |
| Video Decode |
1080p60 (H.265) |
Power & Environment
| Power Consumption |
5W to 10W (configurable) |
| Supported Power Input |
5V to 20V (via carrier board) |
| Operating Temperature Range |
-25°C to 90°C (TJ) |
Physical
| Form Factor |
260-pin SODIMM |
| Dimensions |
70mm × 45mm |
| Module Weight |
Approx. 30g (module only) |
Software Support
| JetPack SDK |
Supported |
| Linux Kernel |
NVIDIA Jetson Linux (L4T) |
| AI Frameworks |
Isaac (robotics), DeepStream (vision AI), Riva (conversational AI) |
| Development Tools |
NVIDIA TAO Toolkit, NGC catalog access, Omniverse Replicator |
Specifications are sourced from the manufacturer product page and may be updated. This is a module only - carrier board required for operation.
