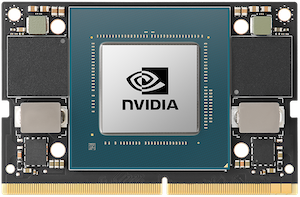

NVIDIA Jetson Orin NX 16GB AI Computing Module
The NVIDIA Jetson Orin NX 16GB is a powerful system-on-module (SOM) designed for next-generation edge AI and robotics applications. Smaller than a credit card at just 69.6 × 45mm, this compact module delivers up to 100 TOPS of AI performance with power configurable between 10W and 25W. Perfect for developers building autonomous machines, drones, handheld devices, and intelligent edge systems in manufacturing, logistics, healthcare, agriculture, and smart cities.
Unmatched Performance in a Compact Form Factor
Built on the NVIDIA Ampere GPU architecture with 1024 CUDA cores and 32 Tensor Cores, the Jetson Orin NX 16GB provides 3x the performance of Jetson AGX Xavier and 5x the performance of Jetson Xavier NX. The module features an 8-core Arm Cortex-A78AE CPU and 16GB LPDDR5 memory with 102 GB/s bandwidth, enabling multiple concurrent AI inference pipelines and real-time processing of high-resolution sensor data.
Key Features
-
AI Performance: Up to 100 TOPS for dense AI workloads including computer vision, natural language understanding, and multi-sensor fusion
-
Ultra-Compact Design: 69.6 × 45mm form factor – the smallest Jetson module available
-
Energy Efficient: Configurable power modes from 10W to 25W for optimal performance-per-watt
-
Advanced Memory: 16GB LPDDR5 with 102 GB/s bandwidth for demanding AI models
-
Enterprise Support: JetPack SDK, Isaac ROS, and cloud-native software capabilities for seamless deployment
-
Proven Reliability: Released in 2023 with software support expected through at least 2030
Built for Advanced Edge Applications
The Jetson Orin NX 16GB excels in applications requiring real-time AI inference at the edge. Deploy complex deep learning models for people detection, action recognition, license plate recognition, object tracking, and human pose estimation. The module supports multiple high-speed sensors simultaneously, making it ideal for autonomous drones, delivery robots, wearable assistive devices, industrial inspection systems, and medical instruments.
Developer-Friendly Ecosystem
Get started quickly with NVIDIA JetPack SDK, which includes libraries for AI, computer vision, multimedia, and sensor processing. The Jetson partner ecosystem offers a wide range of carrier boards, cameras, connectivity modules (5G, 4G, Wi-Fi), and peripherals. The module uses the standard 260-pin SO-DIMM connector for easy integration into custom designs.
What's in the Box
- NVIDIA Jetson Orin NX 16GB Module
Full Specifications
Processing
| AI Performance |
Up to 100 TOPS |
| GPU |
1024-core NVIDIA Ampere with 32 Tensor Cores |
| CPU |
8-core Arm Cortex-A78AE |
| Memory |
16GB 128-bit LPDDR5 |
| Memory Bandwidth |
102 GB/s |
| Memory Frequency |
3200 MHz |
Power & Environment
| Power Modes |
Configurable between 10W and 25W |
Physical
| Form Factor |
260-pin SO-DIMM System-on-Module |
| Dimensions |
69.6 × 45 mm |
Software
| SDK Support |
NVIDIA JetPack 5.1+ (supports through JetPack 6.2) |
| AI Frameworks |
TensorRT, PyTorch, TensorFlow, ONNX Runtime |
| Computer Vision |
Isaac ROS, OpenCV, VPI |
| Software Support Window |
Through at least 2030 |
Specifications are sourced from the manufacturer product page and may be updated.
