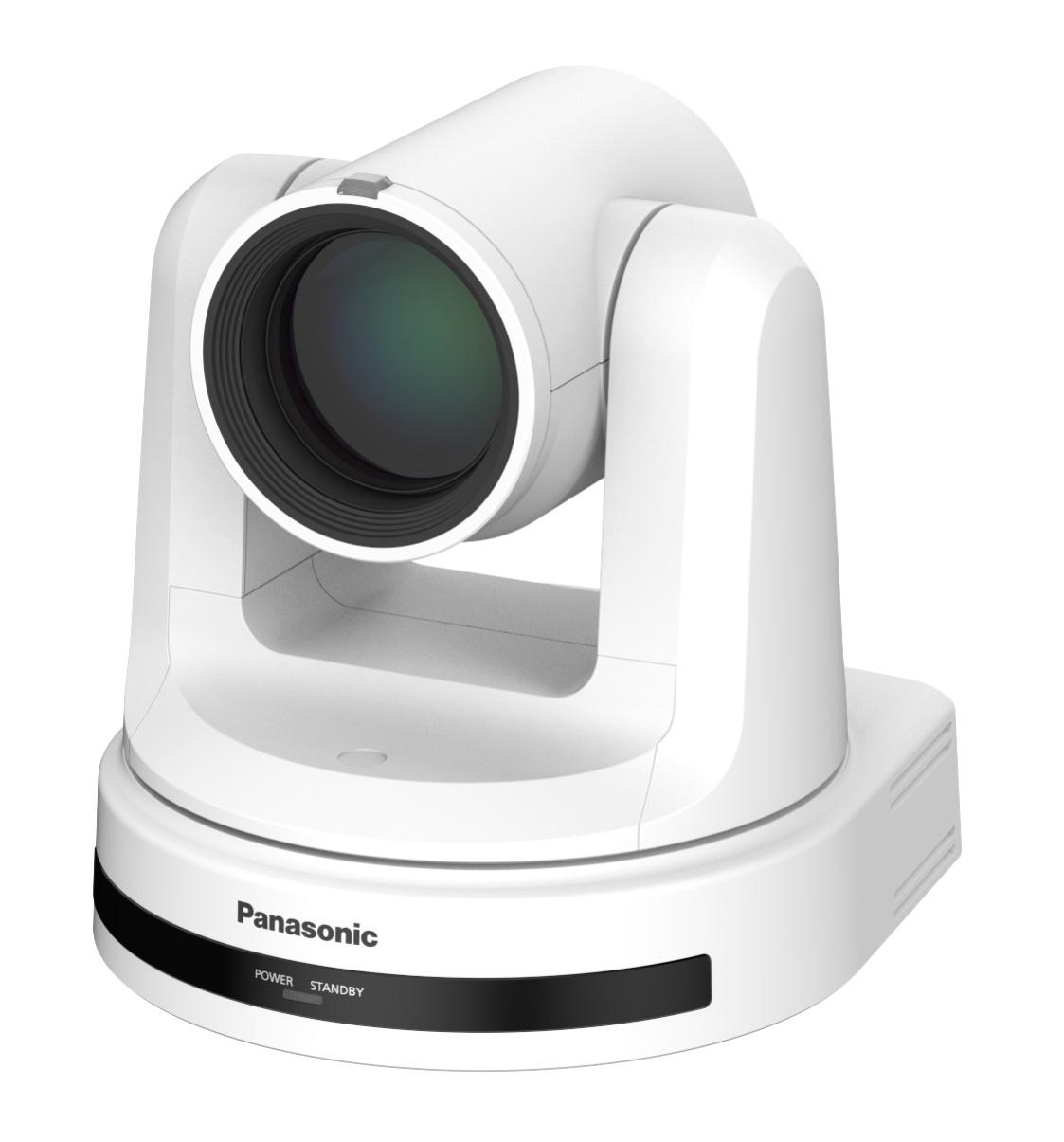

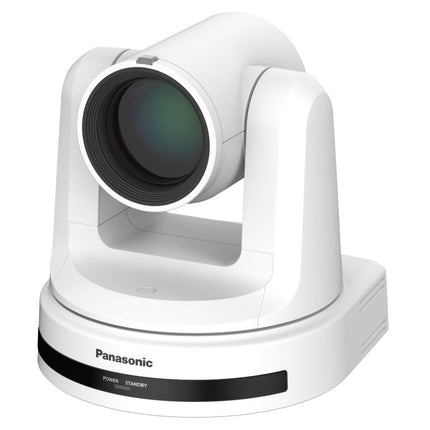

Panasonic AW-HE20W Full HD PTZ Camera with 12x Optical Zoom - White
The Panasonic AW-HE20W is a professional Full HD PTZ camera designed for video conferencing, online meetings, classrooms, and live streaming applications. Featuring a 1/2.8-type MOS sensor, 12x optical zoom, and 71° wide-angle field of view, this compact white camera delivers stunning video quality with simultaneous output via 3G-SDI, HDMI, IP, and USB. The AW-HE20W is Zoom Rooms certified and supports PoE+ for simplified single-cable installation, making it an ideal solution for huddle rooms, conference spaces, and educational environments.
Professional Video Quality for Seamless Communication
The AW-HE20W captures Full HD 1920 × 1080 video at 50/60p, ensuring crisp, professional-quality images for online meetings and live broadcasts. The camera's 1/2.8-type MOS sensor produces stunning clarity, while the 12x optical zoom with a 71° horizontal wide-angle lens enables you to capture wide areas from limited installation spaces or zoom in on presenters and important details with precision.
Key Features
-
Full HD 1920 × 1080 Resolution: Professional video quality at 50/60p for clear, detailed imaging
-
12x Optical Zoom with 71° Wide-Angle Lens: Flexible framing from wide room shots to close-ups
-
1/2.8-Type MOS Sensor: Delivers stunning Full HD video with excellent low-light performance
-
Simultaneous Multi-Output: 3G-SDI, HDMI, IP, and USB outputs active simultaneously for workflow flexibility
-
Zoom Rooms Certified: Optimised for Zoom video conferencing with dedicated USB Video Conference mode
-
PoE+ Support: Power, control, and video transmission over a single LAN cable for simple installation
-
±170° Pan / -30° to 90° Tilt Range: Extensive coverage for any room layout
-
PTZ Virtual USB Driver Software: Use as a webcam via LAN connection for flexible placement
-
RTMP/RTMPS Direct Streaming: Stream directly to YouTube Live, Facebook Live, and other platforms
-
Quiet Operation: NC40 or less noise level ensures smooth, unobtrusive PTZ movement
-
Compact and Lightweight Design: Easy to install on ceilings, walls, or desktop with included mounting bracket
Versatile Connectivity for Any Workflow
The AW-HE20W offers unmatched flexibility with simultaneous 3G-SDI, HDMI, IP, and USB outputs, making it compatible with existing AV systems, streaming platforms, and USB-based video conferencing solutions. The camera supports UVC (USB Video Class), allowing plug-and-play operation with computers and conferencing software. With PoE+ (Power over Ethernet Plus) support, you can power and control the camera over a single network cable, reducing wiring complexity and installation time.
Perfect for Education, Corporate, and Broadcast Environments
Whether you're streaming lectures, conducting online meetings, or producing live events, the AW-HE20W delivers professional results. The wide-angle lens and high-magnification zoom make it perfect for capturing meeting rooms, huddle spaces, classrooms, and lecture halls. Compatible with Panasonic's PTZ Control Center software and remote camera controllers (AW-RP150, AW-RP60), the camera integrates seamlessly into multi-camera production workflows.
Easy Setup and Control
The AW-HE20W features a web-based GUI with dark mode for intuitive camera control and configuration. Store up to 100 preset positions for quick scene changes during presentations or broadcasts. The camera can be controlled via IP, RS-232C, or compatible Panasonic controllers, and the free PTZ Virtual USB Driver software enables use as a network-connected webcam, perfect for ceiling-mounted installations where USB cables can't reach.
What's in the Box
- Panasonic AW-HE20W PTZ Camera (White)
- Mounting Bracket
- Power Supply Unit
- Power Cable
- Operating Instructions
Full Specifications
Imaging
| Image Sensor |
1/2.8-type MOS sensor |
| Resolution |
1920 × 1080 (Full HD), 1280 × 720, 640 × 360 |
| Video Format |
Up to 1920 × 1080 50p/60p |
Lens and Zoom
| Optical Zoom |
12x |
| Horizontal Angle of View |
71° (wide) to 6° (tele) |
| Vertical Angle of View |
43° (wide) to 3° (tele) |
| Diagonal Angle of View |
79° (wide) to 7° (tele) |
Pan/Tilt
| Panning Range |
±170° |
| Tilting Range |
-30° to 90° |
| Quietness |
NC40 or less |
Outputs
| 3G-SDI Output |
BNC × 1 (simultaneous output) |
| HDMI Output |
HDMI Type A × 1 (simultaneous output) |
| IP Streaming |
H.264, H.265, JPEG (simultaneous operation), RTMP/RTMPS |
| USB Output |
USB 3.0 Type-C (UVC compatible) |
Control and Network
| Network |
LAN (RJ-45, 10BASE-T/100BASE-TX/1000BASE-T), PoE+ (IEEE 802.3at) support |
| Serial Control |
RS-232C (D-sub 9-pin) |
| Compatible Controllers |
AW-RP150, AW-RP60, IP control, PTZ Control Center software |
| Preset Positions |
Up to 100 |
Power and Environment
| Power Input |
DC 12 V (AC adapter included) or PoE+ (IEEE 802.3at) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
20% to 90% (no condensation) |
Physical
| Dimensions (W × H × D) |
165.1 mm × 176.2 mm × 176.1 mm (6.5" × 6.94" × 6.93")
(Excluding protrusions, cable cover, mounting bracket) |
| Weight |
1.9 kg (4.19 lbs) (excluding ceiling mounting bracket) |
| Finish |
White |
| Installation |
Stand-alone (desktop) or suspended (hanging/ceiling) |
Software and Compatibility
| Video Conferencing |
Zoom Rooms certified, compatible with Microsoft Teams, Panopto, and other platforms |
| Virtual USB Driver |
PTZ Virtual USB Driver software (free download) |
| Control Software |
PTZ Control Center (free download), Visual Preset Software |
Specifications are sourced from the manufacturer product page and may be updated.
