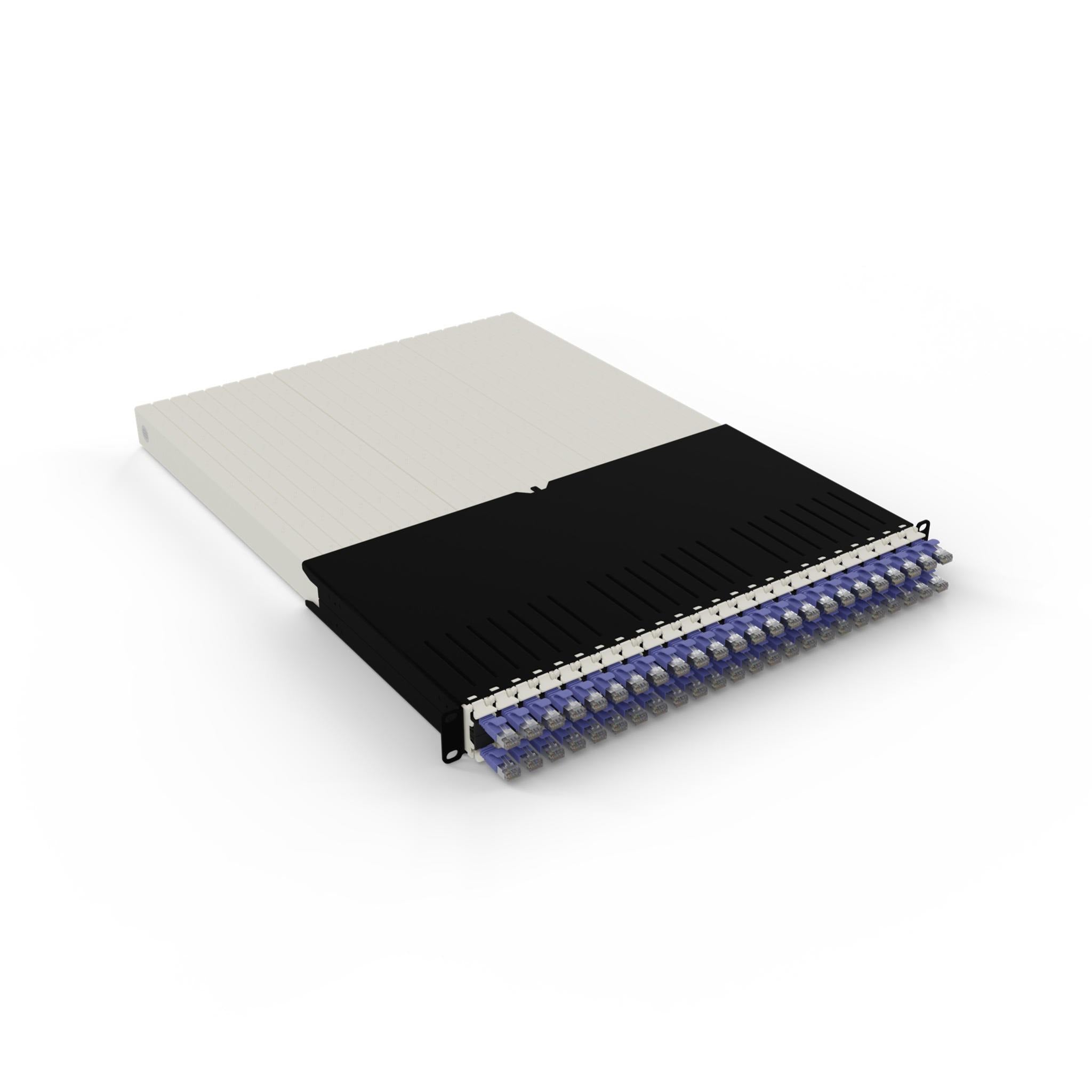

Patchbox One 30RU Cat.6a STP Violet Retractable Cable Management Cassette
The Patchbox One 30RU Cat.6a STP Violet is the ultimate cable management solution for 19-inch network racks. With its innovative retractable 1.8m Cat.6a STP cable, this cassette keeps your rack organized, eliminates cable chaos, and dramatically speeds up installation and maintenance. The violet cable colour makes visual identification instant, perfect for color-coded network environments. This modular cassette fits into the Patchbox One Frame and is ideal for full-height 30RU rack installations.
Key Features
-
Retractable Cat.6a Cable: 1.8m flat STP cable covers up to 30RU, extends only to the length you need
-
10 Gigabit Ethernet Ready: ISO/IEC 11801 Class Ea and ANSI/TIA-568 Cat.6a Channel compliant
-
PoE Support: STP shielding supports PoE (802.3af) for powering network devices
-
Violet Colour Coding: Instantly identify connections and simplify troubleshooting
-
Modular Design: Swap cassettes in seconds without tools or downtime
-
10-Year Warranty: Long-term reliability you can trust in mission-critical environments
Up to 10x Faster Installation and Maintenance
Every cable retracts to your desired length, with no measuring, no zip ties, and no cable sag. IT technicians can work significantly faster and downtimes can be reduced by up to 90%. The pulley-based retraction mechanism keeps cables neat, accessible, and ready for quick changes.
Superior Cable Performance
The flat Cat.6a U/FTP cable inside the cassette is made from 100% stranded copper with AWG36 conductors and a PVC jacket. It delivers up to 10 Gigabit Ethernet at 500MHz and is fully RoHS compliant. The shielded STP construction provides excellent protection against electromagnetic interference, making it ideal for high-density rack environments and industrial settings.
Optimized for 30RU Racks
The 1.8m cable length is specifically designed for full-height network cabinets covering up to 30 rack units. Whether you're patching from top to bottom or connecting mid-rack switches, the Patchbox One delivers the perfect cable length every time.
Build Your Custom Rack Setup
The Patchbox One cassette system is fully modular. Fill a Patchbox One Frame with up to 24 cassettes in any combination of cable types, lengths, and colours. Mix Cat.6a STP and UTP cassettes, or combine copper and fiber optic modules to match your exact infrastructure needs. Cassettes are backward compatible with PATCHBOX Plus+ and 365 frames.
Space-Saving Rack Design
By storing excess cable length where it doesn't get in the way and eliminating bulky cable managers, the Patchbox One frees up up to 50% more usable rack space. Improved airflow keeps your equipment cooler and extends hardware lifespan.
What's in the Box
- 1 × Patchbox One Cassette 30RU Cat.6a STP Violet
- 1 × Retractable flat Cat.6a STP cable (1.8m, violet)
- RJ45 shielded plugs with gold-plated pins and snagless boots
Full Specifications
Cable
| Cable Type |
Flat Cat.6a U/FTP STP |
| Cable Length |
1.8m (covers 30RU) |
| Cable Colour |
Violet |
| Conductor |
AWG36, 100% stranded copper |
| Jacket Material |
PVC |
| Shielding |
U/FTP (STP) |
| Bandwidth |
500MHz |
| Data Rate |
Up to 10 Gigabit Ethernet |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| PoE Support |
PoE (802.3af) |
| RoHS Compliant |
Yes |
Connector
| Connector Type |
RJ45 shielded plug |
| Pin Plating |
Gold plated |
| Boot Type |
Snagless |
Cassette Dimensions
| Width |
18mm (0.70 in) |
| Height |
40mm (1.57 in) |
| Depth |
600mm (23.62 in) |
| Weight (Single Cassette) |
0.2 kg (0.44 lbs) |
Environmental
| Operating Temperature |
-20°C to 60°C |
| Ambient Humidity (Non-Condensing) |
10% to 90% |
Compatibility
| Rack Type |
19-inch racks, 30RU coverage |
| Frame Compatibility |
Patchbox One Frame (requires mounting rails for 30RU) |
| Backward Compatibility |
PATCHBOX Plus+ / 365 frames |
Warranty
Specifications are sourced from the manufacturer product page and may be updated.
