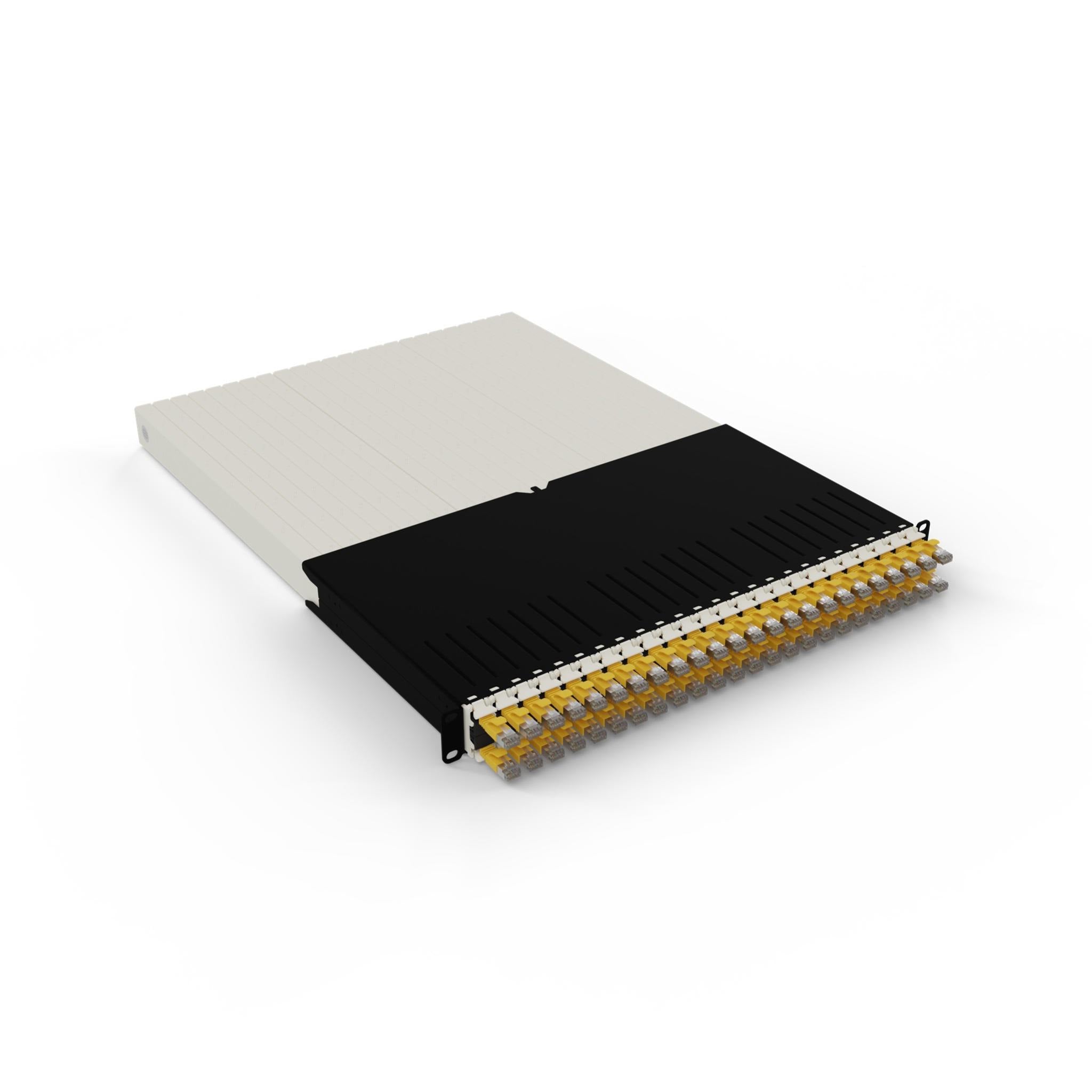

Patchbox One 30RU Cat.6a STP Yellow Retractable Cable Management System
The Patchbox One 30RU with Cat.6a STP yellow cables revolutionizes network rack cable management with its innovative retractable cable system. Designed for full-height 19-inch network cabinets, this complete 24-port patch panel solution includes 1.8m shielded twisted pair cables that automatically retract to your desired length, eliminating cable clutter and delivering up to 10x faster installation and troubleshooting. Perfect for data centers, server rooms, and enterprise network environments where organized, high-performance cabling is essential.
Key Features
-
Retractable Cable System: 24 x 1.8m Cat.6a STP cables automatically retract to desired length with pulley mechanism
-
50% More Rack Space: Replaces bulky 2RU cable managers with 1RU frame, freeing valuable rack space
-
10x Faster Installation: No measuring, no zip ties, no cable management headaches
-
High-Speed Performance: Cat.6a cables support up to 10 Gigabit Ethernet and PoE (802.3af)
-
Color-Coded Organization: Yellow cables provide instant visual identification for cable-coding your rack
-
10-Year Warranty: Comprehensive coverage on frame, cassettes, and cables
Professional Cable Management Made Simple
Say goodbye to tangled patch cables forever. The Patchbox One uses modular cassettes that store excess cable length internally, keeping your rack neat and improving airflow around critical equipment. Each cable extends smoothly when needed and retracts when disconnected, maintaining perfect organization automatically. IT technicians report up to 90% reduction in downtime during moves, adds, and changes.
High-Performance Cat.6a Shielded Cables
Every yellow STP cable meets ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A standards, delivering reliable 10 Gigabit Ethernet performance. The flat Cat.6a design with AWG36 stranded copper construction provides superior flexibility compared to traditional round cables. Shielded twisted pair (STP) construction supports Power over Ethernet (PoE) for powering IP cameras, access points, and VoIP phones directly through the data cable.
Modular and Customizable Design
The Patchbox One system is built for flexibility. Individual cassettes can be replaced or rearranged in seconds without tools, allowing you to adapt to changing infrastructure needs. Mix different cable colors to create visual coding schemes, or combine with fiber optic cassettes for hybrid rack configurations. The 30RU version includes mounting rails for secure installation in both 2-post and 4-post racks with threaded or square-punched holes.
Optimized for Full-Height Racks
With 1.8m cable length, the 30RU version is specifically optimized for full-height network cabinets covering up to 30 rack units. The 600mm installation depth accommodates standard server racks, ensuring proper cable reach from top to bottom without excessive length. Improved airflow from eliminated cable bulk helps equipment run cooler and extends hardware lifespan.
What's in the Box
- 24 x Patchbox One Cassette 30RU Cat.6a STP (Yellow cables)
- 1 x Patchbox One Frame (1RU, 19-inch)
- 2 x Adjustable mounting rails with hex nuts and flanges
- 6 x Patchcatch cable organizers
- 2 x DIN A5 tear-off label sheets with 96 ID labels
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP (Shielded Twisted Pair) |
| Cable Length |
1.8m (covers 30RU) |
| Cable Color |
Yellow |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A |
| Bandwidth |
500 MHz |
| Conductor |
AWG36, 100% stranded copper |
| Jacket Material |
PVC |
| Connector Type |
RJ45 shielded plug, gold-plated pins, snagless boot |
| PoE Support |
Yes, PoE (802.3af) |
| RoHS Compliant |
Yes |
Frame Specifications
| Rack Size |
1RU, 19-inch |
| Capacity |
24 cassettes |
| Installation Depth |
600mm (23.62 inches) |
| Frame Material |
ABS and RAL9001 |
| Mounting |
Mounting rails (included) for 2-post and 4-post racks |
| Compatible Rack Types |
Threaded and square-punched 19-inch racks |
Cassette Specifications
| Cassette Dimensions (each) |
Width: 18mm, Height: 40mm, Depth: 600mm |
| Cassette Material |
Polyoxymethylene (POM) |
| Operating Temperature |
-20°C to 60°C |
| Humidity Range |
10% to 90% |
Warranty & Compliance
| Warranty Period |
10 years (frame, cassettes, and cables) |
| Backward Compatibility |
Compatible with PATCHBOX Plus+/365 systems |
Specifications are sourced from the manufacturer product page and may be updated.
