Patchbox One 30RU OM4 LC-LC Fiber Optic Cable Management System

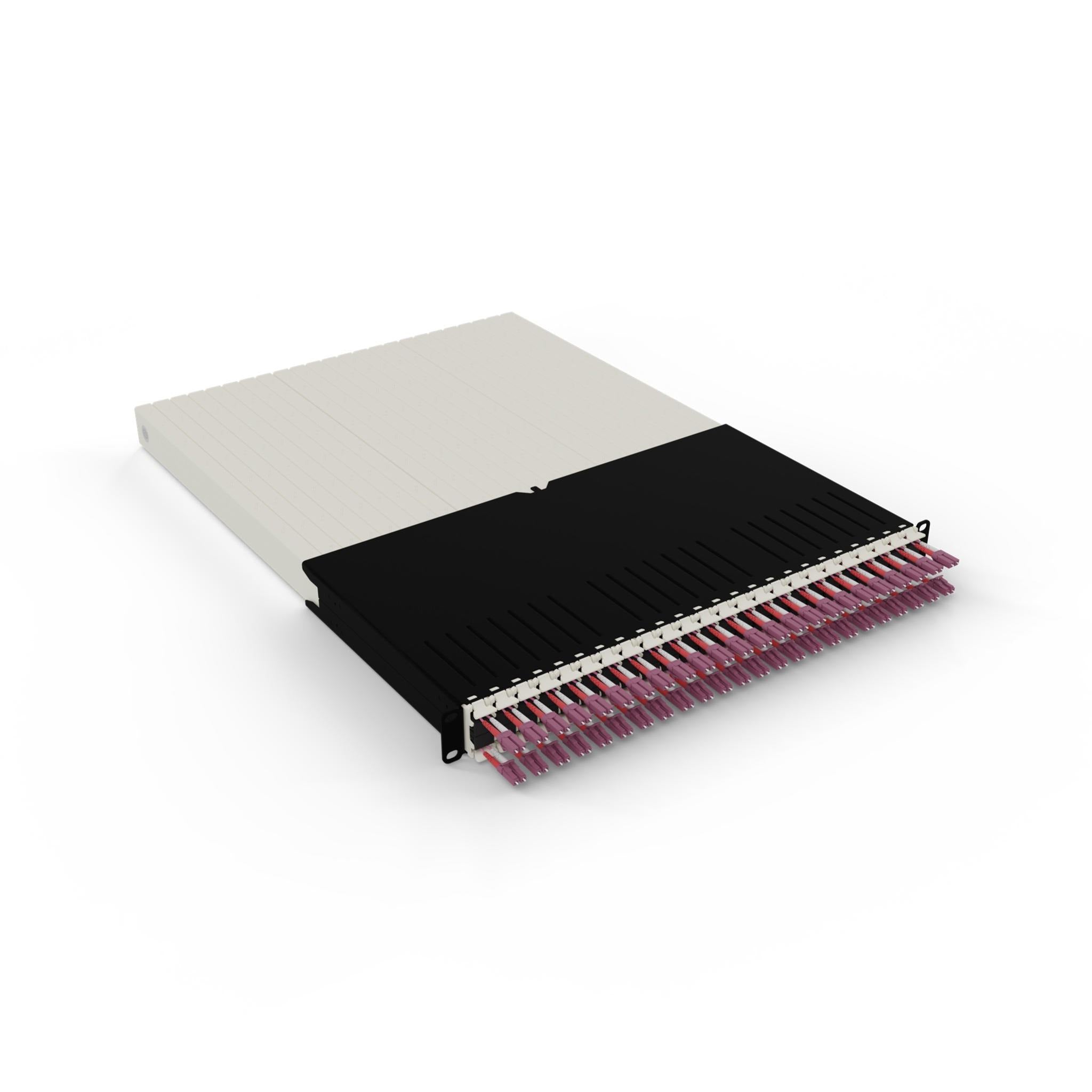

The Patchbox.one 30RU with OM4 fiber optic cables is the ultimate cable management solution for professional network racks. This complete system includes 24 retractable fiber optic cassettes with 1.8m OM4 multi-mode cables and LC-LC duplex connectors, all housed in a 1U rack-mountable frame. Designed for data centres, enterprise networks, and mission-critical environments, it delivers up to 10x faster installation and troubleshooting while keeping your rack permanently organized and clutter-free.
Why Choose Patchbox.one for Fiber Optic Networks?
Traditional fiber patching leads to tangled cables, restricted airflow, and wasted rack space. The Patchbox.one system transforms network management with retractable cables made from Corning® ClearCurve® Fiber - the world's most flexible and bend-insensitive fiber available. Each cable extends only to the length you need and retracts neatly into its cassette, eliminating excess cable mess and improving overall rack efficiency.
Key Features
-
24 Retractable OM4 Fiber Cassettes: Each with 1.8m cable length covering up to 30RU in standard racks
-
LC-LC Duplex Connectors: Industry-standard connectors compatible with most enterprise fiber optic equipment
-
OM4 Multi-Mode Fiber: 50µ/125µm RBS, LSZH jacket in Erika Violet colour, RoHS compliant
-
Corning ClearCurve Technology: Bend-insensitive fiber for superior flexibility and durability
-
ISO/IEC 11801-1:2017 Certified: Meets international standards for structured cabling systems
-
10-Year Warranty: Comprehensive warranty on frame and all fiber optic cables for peace of mind
-
50% More Rack Space: Eliminates bulky cable management systems and reduces cable clutter
-
Tool-Free Cassette Swapping: Easily adapt your infrastructure by swapping cassettes in seconds
High-Performance Fiber for Enterprise Networks
The OM4 multi-mode fiber inside each cassette supports high-bandwidth applications including 10G, 40G, and 100G Ethernet over extended distances. The 50µ/125µm core is optimized for VCSEL laser sources commonly used in modern data centre equipment. With Corning ClearCurve bend-insensitive technology, these cables can handle tighter bend radii than traditional fiber without signal loss or performance degradation, making them ideal for dense rack environments.
Modular and Scalable Design
The Patchbox.one system is built for flexibility. Each cassette can be swapped in seconds without tools, allowing you to mix OM4 with OS2 single-mode cassettes, Cat.6a copper cassettes, or blank panels as your network evolves. The 1U frame design saves valuable rack space compared to traditional 2U cable management solutions, and the retractable mechanism ensures cables stay organized even after multiple reconfigurations.
Faster Installation and Troubleshooting
Network technicians save significant time with the Patchbox.one system. Cables extend to your desired length and lock in place - no measuring, no cable ties, no mess. When troubleshooting or making changes, simply pull the cable to the length needed or retract it completely. Colour-coded violet OM4 cables provide instant visual identification, reducing errors and speeding up network maintenance tasks.
Professional Rack Organization
Maintain a clean, professional data centre with permanently organized cabling. The retractable cassette system stores excess cable length inside each cassette, eliminating cable spaghetti and improving airflow throughout your rack. Better airflow means cooler equipment temperatures, extended hardware lifespan, and reduced cooling costs.
Technical Specifications
| System Type |
24-port fiber optic cable management system with retractable cassettes |
| Cable Type |
OM4 Multi-Mode Fiber |
| Fiber Specification |
OM4 RBS 50µ/125µm, LSZH, Erika Violet, Multi-Mode, RoHS compliant |
| Connector Type |
LC Duplex - LC Duplex |
| Cable Length |
1.8m / 6ft per cassette (covers up to 30RU) |
| Number of Cassettes |
24 |
| Frame Size |
1U rack unit, 19-inch standard |
| Cassette Dimensions (each) |
Width: 18mm / Height: 40mm / Depth: 600mm |
| Cassette Profiles |
ABS and RAL9001 |
| Plastic Parts |
Polyoxymethylene (POM) |
| Operating Temperature Range |
-20°C to 60°C |
| Ambient Humidity |
10% - 90% non-condensing |
| Weight per Cassette |
0.27kg / 0.59 lbs |
| Certification |
ISO/IEC 11801-1:2017 |
| Warranty |
10 Years on frame and cables |
| Country of Manufacture |
European Union |
What's in the Box
- 24 × Patchbox.one Cassette / 30RU / OM4 LC-LC Fiber Optic
- 1 × Patchbox.one Frame (1U 19-inch)
- 2 × Mounting rails
- 4 × Flanges
- 4 × Hex nuts
- 6 × Patchcatch cable organizers
Installation Notes
The Patchbox.one Frame with 30RU cassettes must be mounted using the included mounting rails. The rails provide proper support for the frame and cassettes when installed in standard 19-inch equipment racks. Complete installation instructions are included with the system.
Specifications are sourced from the manufacturer product page and may be updated.
