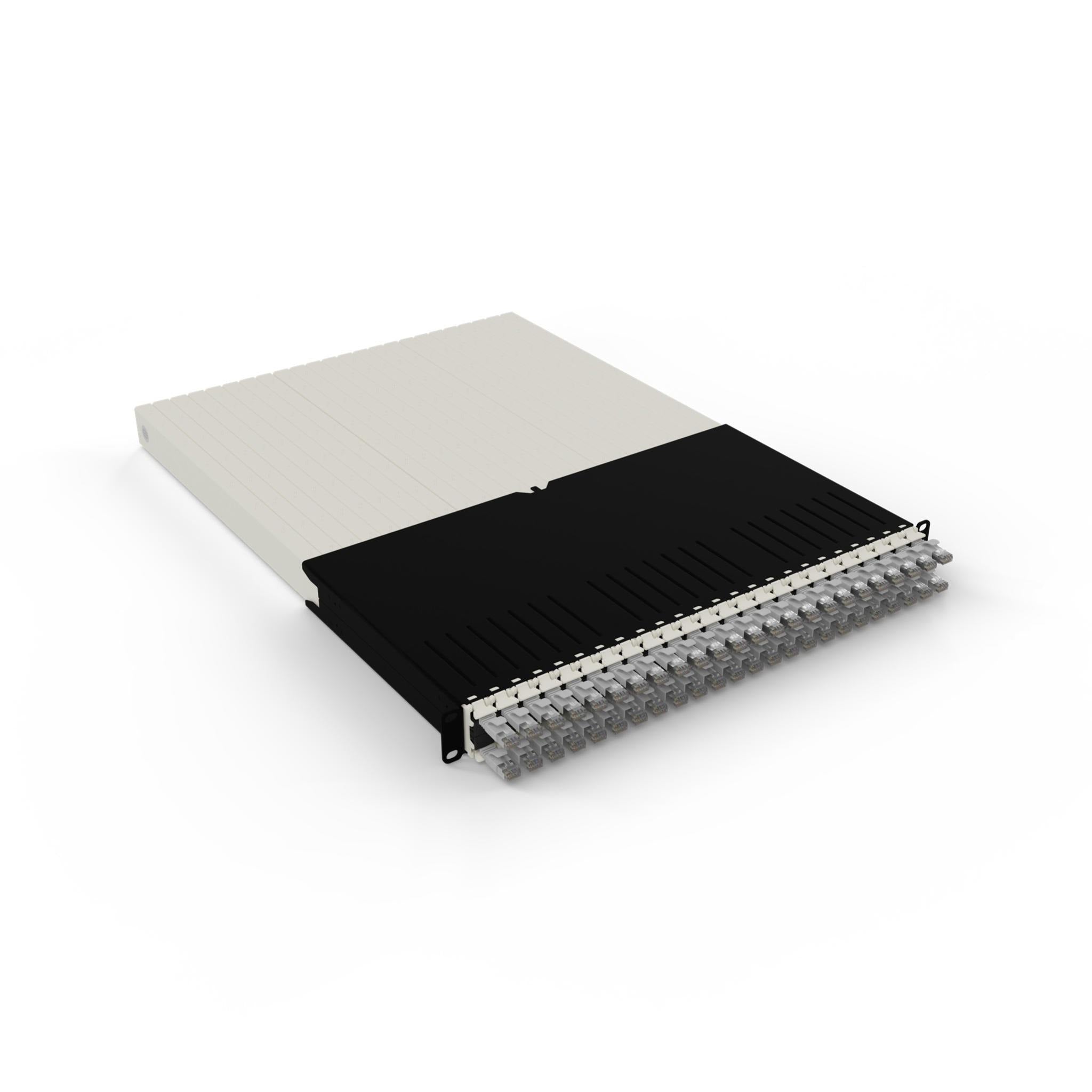

Patchbox ONE 30RU STP Grey Cat.6a Retractable Cable Management System
The Patchbox ONE 30RU is the ultimate cable management solution for network racks, featuring 24 retractable Cat.6a STP shielded cables in grey. This innovative 1RU patch panel eliminates cable chaos, freeing up to 50% more rack space while delivering 10 Gigabit Ethernet performance. Each 1.8m cable retracts to your desired length using a pulley mechanism, keeping your network cabinet organised, efficient, and future-proof. Perfect for data centres, server rooms, and enterprise networks where professional cable management is critical.
Key Features
-
24 Retractable Cat.6a Cables: 1.8m STP shielded cables ideal for full-height 30RU network cabinets
-
10x Faster Installation: No measuring, no zip ties - cables retract to optimal length automatically
-
50% More Rack Space: Replace bulky 2RU cable managers with this compact 1RU solution
-
10 Gigabit Ethernet Ready: Meets ISO/IEC 11801 Class Ea and ANSI/EIA/TIA-568 Cat 6A Channel standards
-
PoE Support: STP cables support PoE (802.3af) for powering network devices
-
Modular Design: Individual cassettes can be swapped or rearranged in seconds without tools
Revolutionary Cable Management
The Patchbox ONE transforms messy, time-consuming rack installations into streamlined efficiency. Each of the 24 cables is housed in its own modular cassette with a retractable pulley mechanism that automatically manages excess cable length. This eliminates cable spaghetti, improves airflow for cooler equipment operation, and reduces server downtimes by up to 90%. The grey STP shielded cables provide excellent electromagnetic interference protection for sensitive network environments.
High-Performance Networking
These flat Cat.6a cables deliver up to 10 Gigabit Ethernet speeds and meet strict industry standards including ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A Channel specifications. The AWG36 stranded copper conductors with 500MHz bandwidth ensure reliable high-speed data transmission. STP (shielded twisted pair) construction with RJ45 gold-plated connectors provides superior signal integrity and protection from crosstalk and EMI.
Modular and Future-Proof
The Patchbox ONE Frame accommodates 24 individual cassettes that can be customised to your exact requirements. Need to adapt your infrastructure? Simply swap out cassettes in seconds without tools or downtime. Mix and match cable types, lengths, and colours as your network evolves. The 30RU version with 1.8m cables is optimised for full-height network cabinets, while shorter 8RU and longer 46RU options are available for different rack configurations.
Perfect For
- Data centres requiring professional cable management
- Enterprise server rooms with high-density networking
- IT departments seeking faster maintenance and troubleshooting
- Network installers looking to save time and improve presentation
- Facilities where airflow optimisation is critical
What's in the Box
- 24 × Patchbox ONE Cassette 30RU Cat.6a (STP, Grey)
- 1 × Patchbox ONE Frame
- 2 × Mounting rails with hex nuts and flanges
- 6 × Patchcatch cable organisers
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP (STP Shielded) |
| Cable Length |
1.8m (6 ft) - covers 30RU |
| Cable Colour |
Grey |
| Conductor |
AWG36, 100% stranded copper |
| Bandwidth |
500MHz |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Data Rate |
Up to 10 Gigabit Ethernet |
| PoE Support |
PoE (802.3af) |
| Connector |
RJ45 shielded plug, gold-plated pins, snagless boot |
| Jacket Material |
PVC |
| RoHS Compliant |
Yes |
Physical Specifications
| Rack Space |
1RU |
| Width |
481.5mm (19 inches) |
| Height |
44mm (1.73 inches) |
| Depth |
365mm (14.37 inches) |
| Installation Depth |
600mm |
| Mounting |
2-post or 4-post racks with included mounting rails |
| Frame Material |
RAL9005 powder coated steel |
| Cassette Material |
ABS (RAL9001) and Polyoxymethylene POM |
Environmental
| Operating Temperature |
-20°C to 60°C |
| Humidity (Non-Condensing) |
10% - 90% |
What's in the Box
| Cassettes |
24 × Patchbox ONE Cassette 30RU Cat.6a STP Grey |
| Frame |
1 × Patchbox ONE Frame |
| Mounting Hardware |
2 × Mounting rails, 4 × Flanges, 4 × Hex nuts |
| Cable Management |
6 × Patchcatch |
| Warranty |
10 years |
Specifications are sourced from the manufacturer product page and may be updated.
