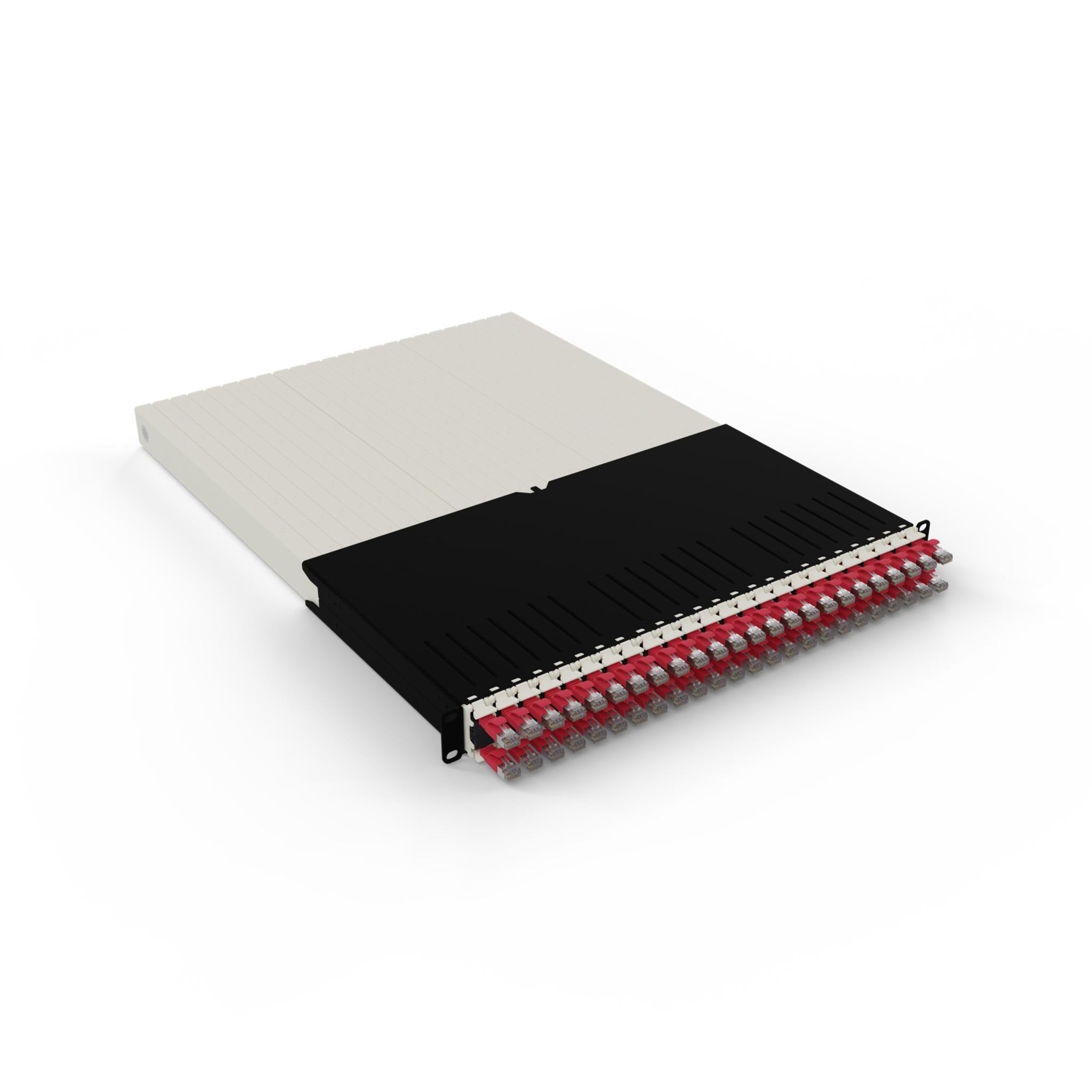

Patchbox One 30RU STP Red 24-Port Retractable Cat.6a Patch Panel
The Patchbox One 30RU is the ultimate cable management solution for your network rack. Featuring 24 retractable Cat.6a STP cables in red, this innovative 1RU patch panel keeps your rack organized and efficient. With 1.8m cables covering up to 30RU, the system delivers 10 Gigabit Ethernet performance while freeing up to 50% more rack space compared to traditional cable managers. Perfect for data centres, server rooms, and enterprise network installations across Australia.
Key Features
-
24 Retractable Cat.6a STP Cables: Each red cable extends to precisely the length you need, then retracts neatly into its cassette to eliminate cable clutter
-
10 Gigabit Ethernet Ready: Flat Cat.6a U/FTP cables meet ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A Channel standards at 500MHz
-
PoE Capable: STP shielding supports Power over Ethernet (802.3af) for powering network devices directly through the cable
-
Space-Saving Design: Replaces bulky 2RU cable managers with a compact 1RU solution, freeing up 50% more rack space
-
10x Faster Installation & Maintenance: Retractable cables eliminate measuring, cutting, and zip ties for dramatically faster deployment and troubleshooting
-
10-Year Warranty: Both the frame and all cables are backed by Patchbox's comprehensive 10-year warranty for peace of mind
How It Works
Each of the 24 modular cassettes houses a single 1.8m retractable Cat.6a cable with a patented pulley mechanism. Simply pull the cable to your desired length, and it locks in place. When you need to reconfigure, the cable retracts smoothly without tangling. The gold-plated RJ45 connectors with snagless boots ensure reliable connections, while the flat cable design improves airflow throughout your rack.
Modular and Future-Proof
Need to change your setup? Individual cassettes can be swapped out in seconds without tools or downtime. Mix and match cable colours for instant visual identification of different network zones or VLANs. The Patchbox One system is designed for racks of all sizes and mounts easily on any standard 19-inch rack with included mounting rails.
Professional Performance
Built with 100% stranded copper conductors (AWG36) and high-quality PVC jacket, these cables deliver consistent 10GBase-T performance. The shielded twisted pair (STP) construction provides superior protection against electromagnetic interference, making it ideal for high-density server environments and mission-critical applications.
What's in the Box
- 1 × Patchbox One Frame (1RU, 19-inch)
- 24 × Patchbox One Cassettes with 30RU Cat.6a STP cables (Red, 1.8m)
- 2 × Mounting rails with flanges and hex nuts
- 6 × Patchcatch cable guides
- 2 × DIN A5 tear-off label sheets (96 ID labels total)
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP (STP) |
| Cable Length |
1.8m (covers up to 30RU) |
| Cable Colour |
Red |
| Conductors |
100% stranded copper, AWG36 |
| Standards |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Bandwidth |
500MHz |
| Data Rate |
10 Gigabit Ethernet (10GBase-T) |
| Shielding |
U/FTP (STP) |
| Power over Ethernet |
PoE (802.3af) |
| Jacket Material |
PVC |
| Compliance |
RoHS compliant |
Connectors
| Connector Type |
RJ45 shielded plug (both ends) |
| Contact Plating |
Gold plated pins |
| Boot Type |
Snagless booted |
Frame & Cassettes
| Rack Size |
1RU (19-inch standard) |
| Frame Dimensions |
481.5mm (W) × 44mm (H) × 365mm (D) |
| Cassette Dimensions |
18mm (W) × 40mm (H) × 365mm (D) |
| Number of Ports |
24 |
| Frame Material |
RAL9005 powder coated steel |
| Cassette Profiles |
ABS and RAL9001 |
| Plastic Components |
Polyoxymethylene (POM) |
| Mounting |
Mounting rails with flanges and hex nuts (included) |
Environmental
| Operating Temperature |
-20°C to 60°C |
| Humidity Range |
10% to 90% (non-condensing) |
Warranty & Compliance
| Warranty Period |
10 years |
| Certification |
RoHS compliant |
| Product Code |
PONE30STPRD |
| EAN/GTIN |
4262427630772 |
Specifications are sourced from the manufacturer product page and may be updated.
