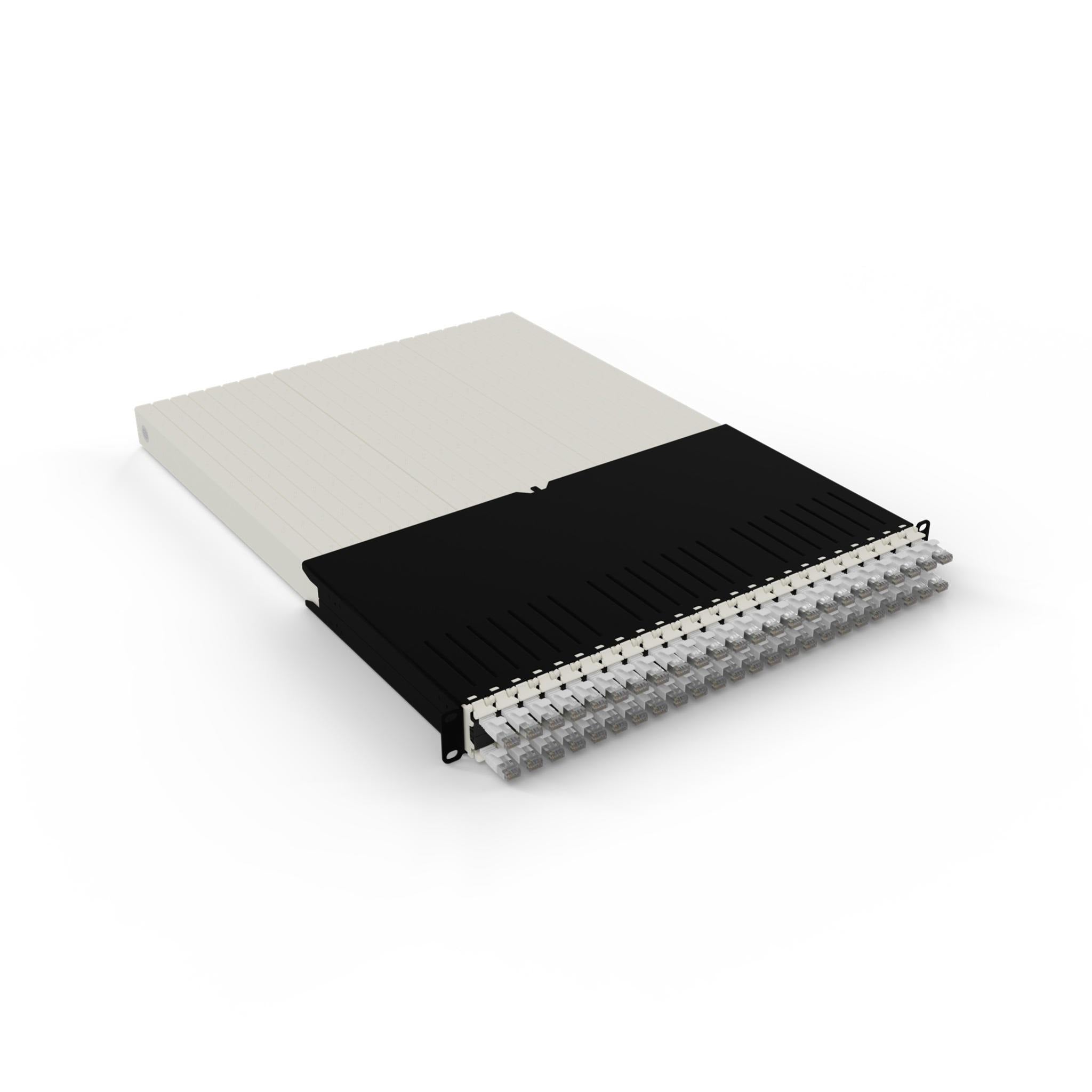

Patchbox One 30RU STP White 24-Port Retractable Cable Management Panel
The Patchbox One 30RU is the ultimate cable management solution for 19-inch network racks, featuring 24 retractable Cat.6a STP shielded cables in white. Designed for full-height network cabinets, this innovative 1RU patch panel eliminates cable chaos, frees up to 50% more rack space, and delivers up to 10x faster installation and troubleshooting. Each 1.8-metre cable retracts to your desired length, improving airflow, reducing clutter, and making your network infrastructure more efficient and future-proof.
Key Features
-
24 Retractable Cables: Cat.6a STP shielded flat cables with automatic retraction for perfect cable management
-
10 Gigabit Performance: ISO/IEC 11801 Class Ea and ANSI/EIA/TIA-568 Cat 6A Channel certified, 500MHz bandwidth
-
PoE Ready: STP cables support PoE (802.3af) for powering network devices
-
Space Saving Design: 1RU frame replaces bulky 2RU cable managers, freeing up 50% more rack space
-
Modular Cassette System: Individual cassettes can be swapped or replaced in seconds without tools
-
10-Year Warranty: Built to last with comprehensive manufacturer warranty coverage
Eliminate Cable Chaos Forever
Say goodbye to tangled patch cables and time-consuming cable management. The Patchbox One features 24 modular cassettes, each housing a retractable 1.8m Cat.6a cable that automatically adjusts to your exact length requirement. The retractable pulley mechanism stores excess cable length inside the cassette, keeping your rack clean, organised, and professional-looking at all times.
10x Faster Installation and Maintenance
IT technicians can work significantly faster with the Patchbox One system. No more measuring cables, cutting zip ties, or wrestling with cable spaghetti. Every cable retracts to the perfect length instantly, and downtimes can be reduced by up to 90%. When you need to repatch or troubleshoot, simply pull the cable to the required length and it locks automatically.
High-Speed Network Performance
The white STP (shielded twisted pair) Cat.6a cables deliver professional-grade performance for demanding network environments:
-
10 Gigabit Ethernet: Full 10GbE support up to 100 metres
-
500MHz Bandwidth: Exceeds Cat.6a channel standards
-
Shielded Construction: U/FTP design with AWG36 stranded copper protects against EMI
-
Gold-Plated RJ45 Connectors: Snagless booted plugs for reliable connections
-
PoE Capable: Power network devices via 802.3af Power over Ethernet
-
RoHS Compliant: Environmentally friendly PVC jacket construction
Modular and Scalable Design
The Patchbox One frame accepts up to 24 individual cassettes, allowing you to customise your setup exactly as needed. Need to change a cable colour for better organisation? Replace a damaged cable? Switch from copper to fibre? Simply swap out individual cassettes in seconds - no downtime, no hassle, no complete reinstallation required.
Optimised for Full-Height Racks
The 30RU version is specifically designed for full-height network cabinets with its 1.8-metre cable length covering up to 30 rack units. This makes it ideal for enterprise server rooms, data centres, and large network installations where patch cables need to reach from top to bottom of the rack. The white colour option provides a clean, professional appearance perfect for visible installations or colour-coded infrastructure.
Professional Installation
Mounting the Patchbox One 30RU is straightforward with the included adjustable mounting rails. The system fits any standard 19-inch rack with threaded or square-punched holes, and supports both 2-post and 4-post rack configurations with installation depths up to 600mm.
What's in the Box
- 1 × Patchbox One Frame (1RU, 19-inch)
- 24 × Patchbox One Cassette 30RU with Cat.6a STP White cables (1.8m each)
- 2 × Adjustable mounting rails with flanges
- 4 × Hex nuts for rack mounting
- 6 × Patchcatch cable management clips
Full Specifications
Frame Dimensions
| Width |
481.5mm (19 inches) |
| Height |
44mm (1.73 inches / 1RU) |
| Depth |
365mm (14.37 inches) |
| Rack Compatibility |
19-inch, 2-post or 4-post, threaded or square-punched |
| Installation Depth |
Up to 600mm |
Cable Specifications (STP)
| Cable Type |
Flat Cat.6a U/FTP (shielded twisted pair) |
| Cable Length |
1.8m (6 feet) - covers 30RU |
| Cable Colour |
White |
| Bandwidth |
500MHz |
| Standards |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Conductor |
AWG36, 100% stranded copper |
| Jacket |
PVC, RoHS compliant |
| Connector |
RJ45 shielded, gold-plated pins, snagless booted |
| PoE Support |
Yes - PoE (802.3af) |
| Data Rate |
10 Gigabit Ethernet |
Cassette Specifications
| Number of Cassettes |
24 |
| Cassette Profile Material |
ABS, RAL9001 |
| Mechanism Material |
Polyoxymethylene (POM) |
| Retraction System |
Automatic pulley mechanism |
| Field Replaceable |
Yes - tool-free swap in seconds |
Environmental & Warranty
| Operating Temperature |
-20°C to 60°C |
| Humidity (Non-Condensing) |
10% to 90% |
| Warranty |
10 years (frame and cables) |
| Compliance |
RoHS |
| Manufacturing |
EU Made Product |
What's Included
| Frame |
1 × Patchbox One 1RU frame |
| Cassettes |
24 × Cat.6a STP White 30RU cassettes |
| Mounting Hardware |
2 × Mounting rails, 4 × Flanges, 4 × Hex nuts |
| Cable Management |
6 × Patchcatch clips |
Specifications are sourced from the manufacturer product page and may be updated.
