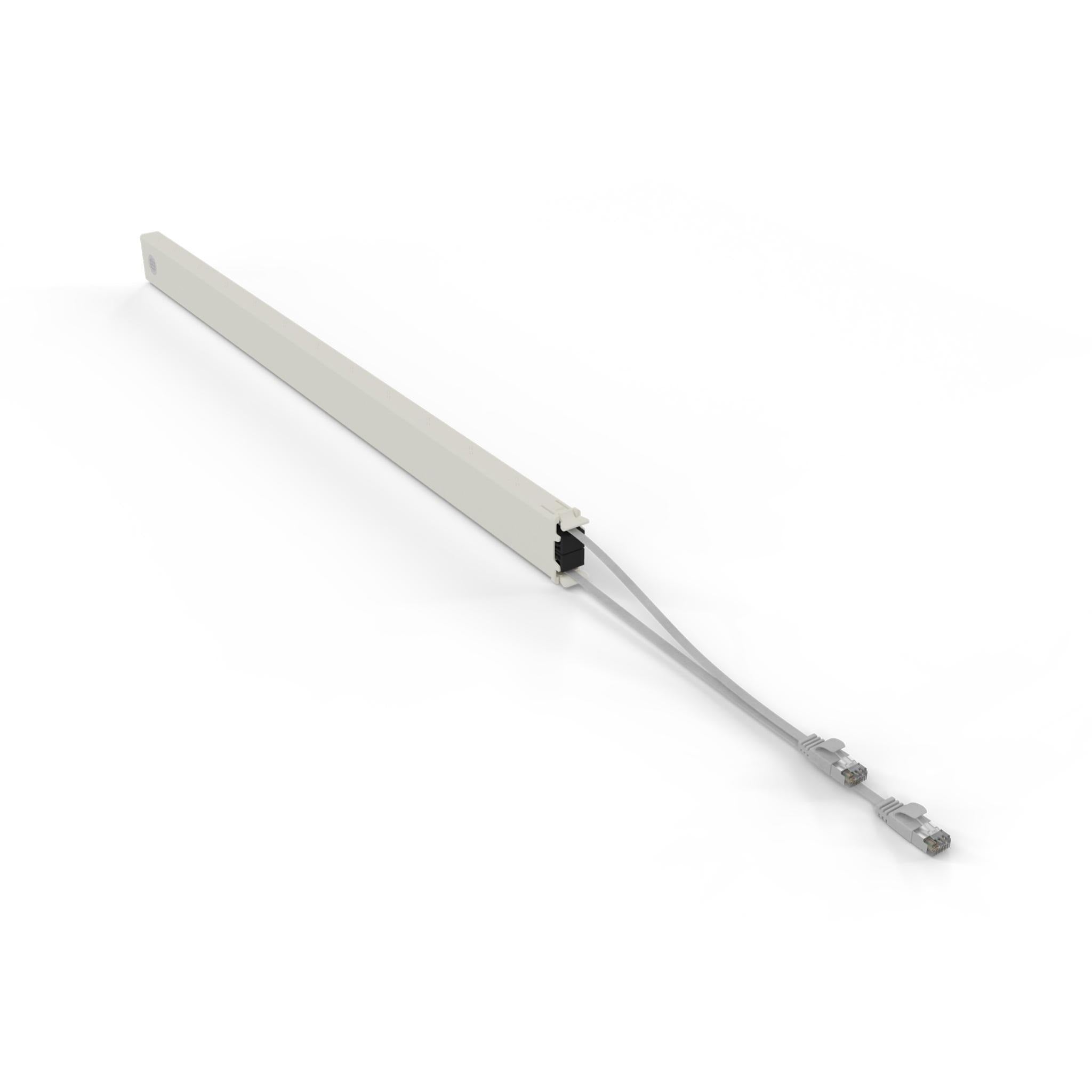

Patchbox One 46RU Cat.6a STP Grey Retractable Network Cable Cassette
The Patchbox One Cassette 46RU Cat.6a STP in Grey is the ultimate solution for organized, efficient network rack cable management. This innovative retractable cable cassette features a 2.5m shielded twisted pair (STP) Cat.6a cable that covers up to 46 rack units, delivering 10 Gigabit Ethernet performance with PoE support. Perfect for data centers, server rooms, and IT infrastructure where cable management, flexibility, and speed are critical.
Why You'll Love the Patchbox One Cassette
-
Retractable Cable Design: Store excess cable length inside the cassette for a clean, organized rack with improved airflow
-
10G Ethernet Performance: Cat.6a STP cable tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards
-
PoE Ready: Shielded (STP) cable supports Power over Ethernet (802.3af) to power network devices
-
Tool-Free Swapping: Replace or rearrange cassettes in seconds without tools or downtime
-
46RU Coverage: 2.5m cable length (1.8m extractable + 0.7m non-retractable) ideal for full-height racks
-
10-Year Warranty: Long-term reliability backed by manufacturer warranty on cassettes and cables
Modular Cable Management Solution
The Patchbox One system revolutionizes network cabling with its modular cassette design. Each cassette contains a flat Cat.6a cable with Patchbox's patented retractable mechanism. Simply pull out the cable to your desired length, patch your connection, and the cassette automatically stores any excess cable. The grey color-coded cable helps you implement structured cabling standards and simplifies troubleshooting across complex network installations.
High-Performance Cat.6a STP Specifications
The shielded twisted pair (STP) cable inside each cassette is engineered for professional network environments. The flat Cat.6a U/FTP cable uses AWG36, 100% stranded copper conductors with a PVC jacket and supports 500MHz bandwidth. With RJ45 shielded plugs featuring gold-plated pins and snagless boots, these cables are tested to the highest industry standards and are RoHS compliant.
Flexible Installation for Full-Height Racks
The 46RU cassette is designed for 30RU to 46RU rack installations and must be mounted using the Patchbox One Frame with mounting rails (sold separately). The cassette's compact dimensions (18mm width × 40mm height × 600mm depth) allow up to 24 cassettes to fit in a single Patchbox One Frame, providing complete coverage for network switches, patch panels, and server connections.
Ideal for Professional IT Environments
Whether you're managing a data center, server room, telecommunications closet, or enterprise network rack, the Patchbox One Cassette delivers unmatched cable management efficiency. The retractable design eliminates cable spaghetti, saves up to 50% rack space compared to conventional cable management, and reduces installation and troubleshooting time by up to 10x. The grey cable color is ideal for segregating different network zones or applications.
Compatibility & System Requirements
- Compatible with Patchbox One Frame (sold separately)
- Requires mounting rails for 46RU installation (included with Frame)
- Backward compatible with Patchbox Plus+ and 365 systems
- Works with standard 19-inch racks (2-post and 4-post)
- Suitable for threaded and square-punched rack rails
What's in the Box
- 1 × Patchbox One Cassette 46RU Cat.6a STP (Grey)
- Pre-installed 2.5m Cat.6a STP cable with RJ45 connectors
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP (Shielded Twisted Pair) |
| Cable Length |
2.5m total (covers 46RU) |
| Extractable Length |
1.8m retractable |
| Non-Retractable Overlength |
0.7m |
| Cable Color |
Grey |
| Conductor |
AWG36, 100% stranded copper |
| Jacket Material |
PVC |
| Bandwidth |
500MHz |
Performance & Standards
| Data Rate |
Up to 10 Gigabit Ethernet |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Power over Ethernet |
PoE (802.3af) - STP version |
| Environmental Compliance |
RoHS compliant |
Connector Specifications
| Connector Type |
RJ45 shielded plug |
| Pin Plating |
Gold plated |
| Boot Type |
Snagless |
Physical Specifications
| Cassette Width |
18mm (0.70 inches) |
| Cassette Height |
40mm (1.57 inches) |
| Cassette Depth |
600mm (23.62 inches) |
| Weight |
0.31kg (0.68 lbs) approximate |
| Operating Temperature |
-20°C to 60°C |
| Humidity Range |
10% to 90% relative humidity |
System Compatibility
| Frame Compatibility |
Patchbox One Frame (sold separately) |
| Rack Coverage |
Up to 46 rack units (46RU) |
| Mounting Method |
Requires mounting rails (included with Frame) |
| Backward Compatibility |
Patchbox Plus+ and 365 systems |
| Cassette Housing Material |
ABS and RAL9001, Polyoxymethylene (POM) |
Warranty
| Warranty Period |
10 years on cassettes and cables |
Specifications are sourced from the manufacturer product page and may be updated.
