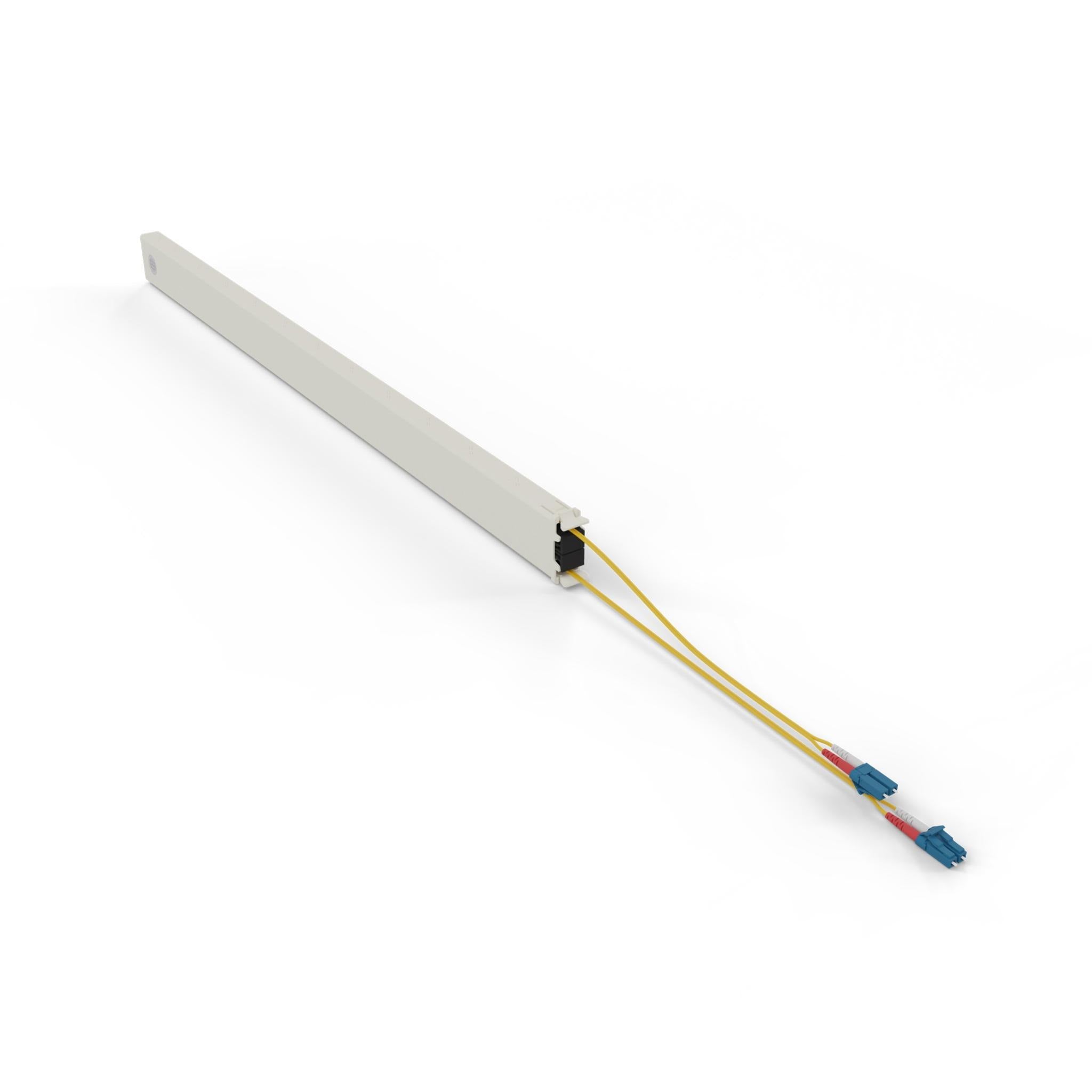

Patchbox One 46RU OS2 Fiber Optic Cassette with LC-LC Connectors
The Patchbox One Cassette 46RU with OS2 single-mode fiber and LC-LC duplex connectors is the ultimate retractable cable management solution for professional network racks. Featuring ultra-flexible Corning ClearCurve fiber optic technology, this cassette delivers 10/40/100 Gb/s performance with a 2.5m cable that covers up to 46RU, providing unmatched flexibility and organization in data centres, server rooms, and enterprise network environments across Australia.
Key Features
-
Corning ClearCurve Technology: Super flexible, bend-insensitive fiber optic cables deliver high performance with unrivaled cable flexibility
-
Retractable Cable Management: 2.5m cable (1.8m extractable + 0.7m non-retractable) automatically stores excess length for a clean, organized rack
-
High-Speed Performance: Supports 10/40/100 Gb/s data transmission for demanding network applications
-
OS2 Single-Mode Fiber: 9µ/125µ RBS fiber compliant with G.657.B3 standards for long-distance, high-bandwidth connections
-
Modular & Swappable: Easily swap cassettes in seconds without tools or downtime to adapt your infrastructure
-
10-Year Warranty: Backed by a comprehensive warranty on cassettes and cables
Built for Performance and Precision
The Patchbox One fiber optic cassette is engineered for professional data centres and network installations where performance and organization are critical. The OS2 single-mode fiber provides superior signal quality over long distances, while Corning ClearCurve technology allows for tighter bends without signal loss, making cable routing easier and more flexible than traditional fiber systems.
Retractable Design for Maximum Organization
Say goodbye to cable mess and wasted rack space. The patented retractable mechanism automatically stores unused cable length inside the cassette, ensuring your rack stays neat and accessible. Simply pull the cable to your desired length, and the cassette holds it securely. When you need to reconfigure, the cable retracts smoothly back into the housing.
Universal Compatibility
The Patchbox One 46RU cassette is backward compatible with Patchbox Plus+ and 365 frames, giving you flexibility to upgrade or expand your system. The cassette features LC-LC duplex connectors (LC-SC also available) and works seamlessly with standard fiber optic patch panels and network equipment.
Technical Specifications
-
Cable Type: OS2 Single-Mode Fiber (9µ/125µ)
-
Fiber Standard: G.657.B3, LSZH jacket, RoHS compliant
-
Connectors: LC Duplex to LC Duplex
-
Cable Length: 2.5m total (1.8m extractable + 0.7m non-retractable)
-
Rack Coverage: Up to 46RU
-
Data Rates: 10/40/100 Gb/s
-
Cable Color: Yellow (OS2 standard)
What's in the Box
- 1 × Patchbox One Cassette 46RU Fiber Optic with OS2 LC-LC connectors
Full Specifications
Cable & Connectors
| Cable Type |
OS2 Single-Mode Fiber |
| Fiber Specification |
9µ/125µ RBS, G.657.B3 |
| Jacket Material |
LSZH (Low Smoke Zero Halogen), Yellow |
| Connector Type |
LC Duplex – LC Duplex |
| Cable Length |
2.5m (8.2 ft) total: 1.8m (6 ft) extractable + 0.7m (2.3 ft) non-retractable |
| Rack Coverage |
Up to 46RU |
| Data Rate |
10/40/100 Gb/s |
| Compliance |
RoHS compliant |
Physical Specifications
| Cassette Width |
18mm (0.70 in) |
| Cassette Height |
40mm (1.57 in) |
| Cassette Depth |
600mm (23.62 in) |
| Weight |
0.28kg (0.61 lbs) |
| Frame Material |
ABS and RAL9001 |
| Mechanism Material |
Polyoxymethylene (POM) |
Environmental
| Operating Temperature |
-20°C to 60°C |
| Humidity |
10% – 90% (non-condensing) |
Packaging
| Package Dimensions |
689mm × 50mm × 47mm (W × H × D) |
| HS Code |
85447000 |
Warranty & Compatibility
| Warranty |
10 years on cassettes and cables |
| Frame Compatibility |
Patchbox One, Patchbox Plus+, Patchbox 365 |
| Mounting Requirements |
Must be mounted with mounting rails (Frame sold separately) |
Specifications are sourced from the official manufacturer product page and may be updated.
