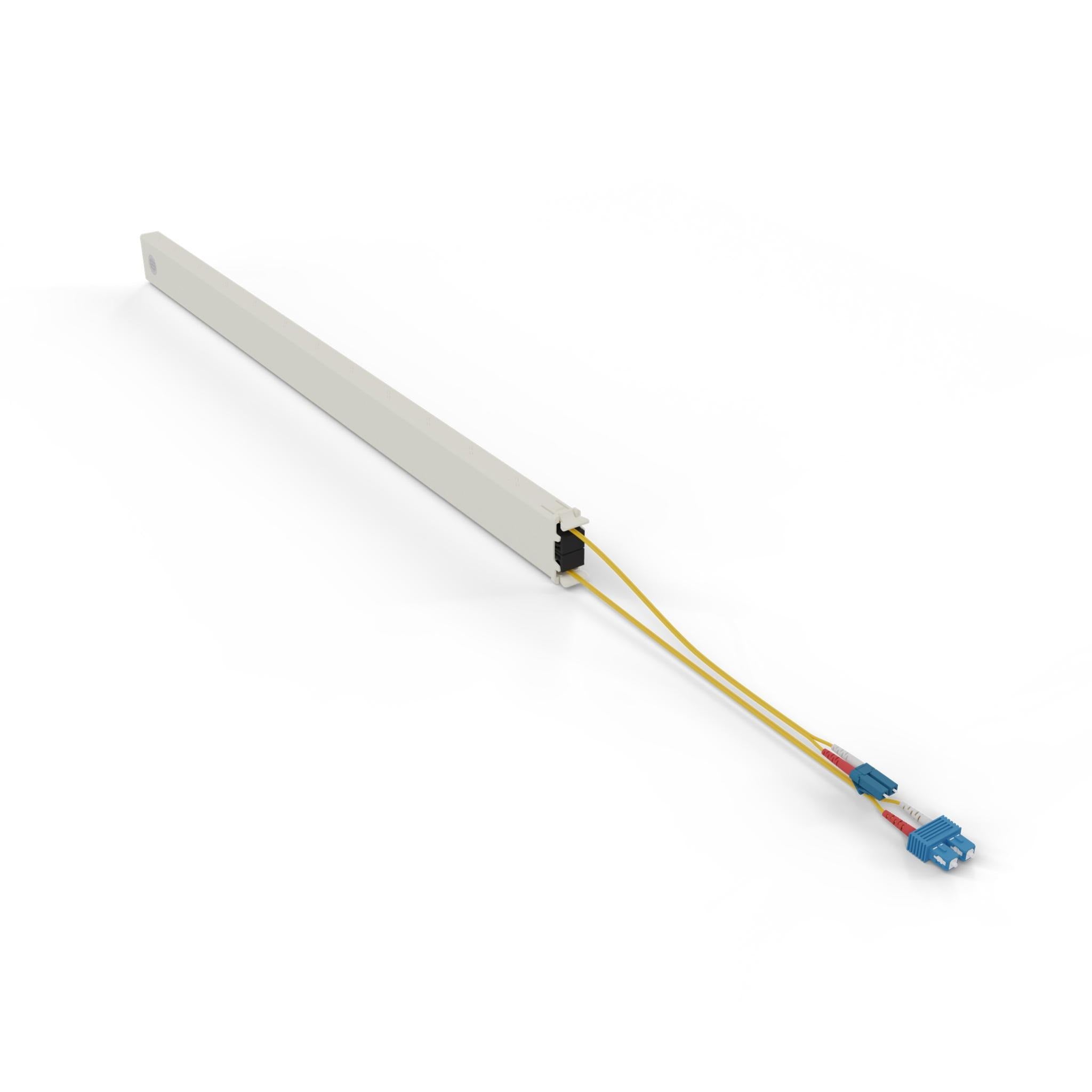

Patchbox One 46RU OS2 LC-SC Retractable Fiber Optic Cable Cassette 2.5m
The Patchbox One Cassette 46RU with OS2 single-mode fiber optic cable and LC-SC connectors is a premium retractable cable management solution designed for professional network racks. Featuring ultra-flexible Corning ClearCurve technology, this cassette delivers 10/40/100 Gbps performance in data centres, server rooms, and enterprise networks. The 2.5m cable covers up to 46RU, with 1.8m extractable and 0.7m non-retractable overlength, keeping your rack clean and organised while supporting mission-critical applications.
Key Features
-
OS2 Single-Mode Fiber: 9µ/125µ RBS G.657.B3 fiber for high-speed data transmission up to 100 Gbps
-
LC-SC Duplex Connectors: Ready for a wide range of fiber applications and configurations
-
Retractable Design: Keeps cables at the perfect length with no tangles or excess slack
-
Corning ClearCurve Technology: Bend-insensitive fiber provides unmatched flexibility and reliability
-
46RU Coverage: 2.5m total cable length (1.8m extractable + 0.7m non-retractable) for long-range patching
-
10-Year Warranty: Manufacturer-backed warranty on cassette, cable, and retraction mechanism
Superior Fiber Performance
The Patchbox One 46RU cassette uses OS2 single-mode fiber that meets G.657.B3 standards with LSZH (Low Smoke Zero Halogen) jacketing. The Corning ClearCurve fiber is significantly more flexible and durable than conventional fiber optics, reducing the risk of damage during installation and daily use. With support for 10/40/100 Gbps transmission speeds, this cassette is perfect for high-bandwidth applications in data centres, telecom, and enterprise networks.
Retractable Cable Management
Unlike traditional patch cables that create clutter and airflow restrictions, the Patchbox cassette features a spring-loaded retraction mechanism that allows you to pull out exactly the cable length you need and lock it in place with the integrated cable brake. When you need to reconfigure, simply release the brake and the cable retracts smoothly back into the cassette. This system has been tested for 300+ pulling cycles without performance degradation, ensuring long-term reliability in busy network environments.
Modular and Scalable Design
The Patchbox One cassette is fully compatible with the Patchbox One Frame (holds up to 24 cassettes) and is also backward compatible with Patchbox Plus+ and 365 frames. You can easily swap cassettes in seconds without tools, allowing you to adapt your rack configuration as your infrastructure evolves. Mix and match fiber cassettes with Cat.6a copper or blind panels for ultimate modularity. The 46RU cassette requires mounting rails for installation due to the longer cable length.
Built for Professional Installations
Each cassette is manufactured to exacting standards with ABS and RAL9001 housing and polyoxymethylene (POM) components for durability. The cassette dimensions are 18mm (W) × 40mm (H) × 600mm (D), and it operates reliably in temperatures from -20°C to 60°C with humidity tolerance of 10-90%. The fiber cable is RoHS compliant and features colour-coded management for easy identification and troubleshooting.
Ideal Applications
- Data centre fiber backbone connections
- Enterprise network rack patching
- Server room high-speed interconnects
- Telecommunications infrastructure
- AV and broadcast facilities
- Long-range rack connections up to 46RU
What's in the Box
- 1 × Patchbox One Cassette 46RU Fiber Optic (OS2 LC-SC)
Full Specifications
| Cable Type |
OS2 Single-Mode Fiber Optic |
| Fiber Specification |
RBS 9µ/125µ, G.657.B3 |
| Connector Type |
LC Duplex to SC Duplex |
| Cable Length |
2.5m / 8.2 ft (1.8m extractable + 0.7m non-retractable) |
| Coverage |
Up to 46RU |
| Data Rate |
10/40/100 Gbps |
| Fiber Technology |
Corning ClearCurve bend-insensitive fiber |
| Jacket Material |
LSZH (Low Smoke Zero Halogen), Yellow |
| Housing Material |
ABS and RAL9001 |
| Internal Mechanism |
Polyoxymethylene (POM) |
| Dimensions (W × H × D) |
18mm × 40mm × 600mm (0.70" × 1.57" × 23.62") |
| Weight |
0.28 kg / 0.61 lbs |
| Operating Temperature |
-20°C to 60°C |
| Humidity |
10% - 90% |
| Compliance |
ISO/IEC 11801-1:2017, RoHS |
| Durability |
300+ pulling cycles tested |
| Compatibility |
Patchbox One Frame, Plus+, and 365 frames |
| Mounting |
Requires mounting rails (Frame sold separately) |
| Warranty |
10 Years |
Specifications are sourced from the manufacturer product page and may be updated.
