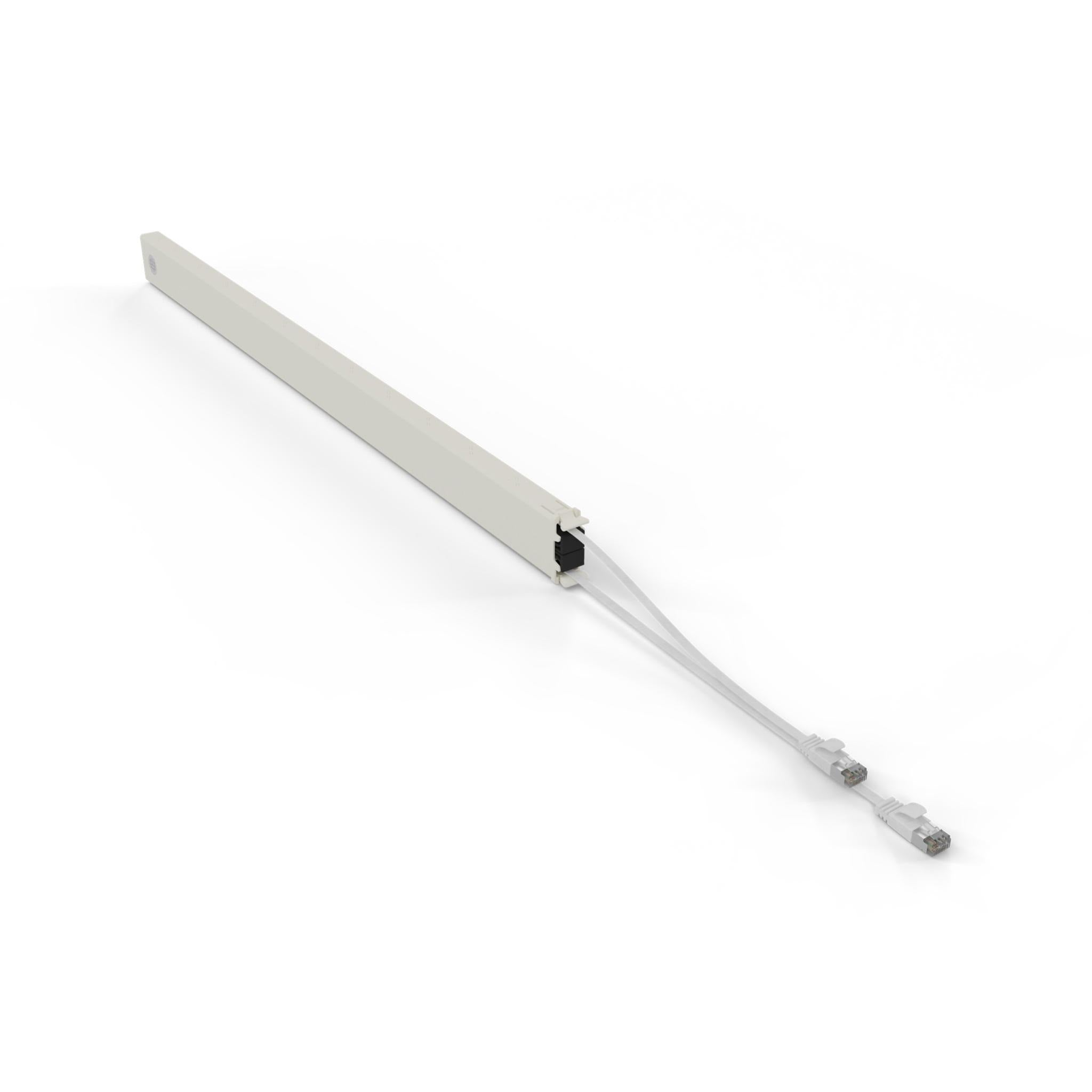

Patchbox One 46RU STP White Retractable Cat.6a Cable Cassette
The Patchbox One Cassette 46RU STP White is a revolutionary cable management solution designed for server racks and network cabinets. This modular cassette features a 2.5m retractable flat Cat.6a shielded twisted pair (STP) cable that covers up to 46 rack units, delivering up to 10 Gigabit Ethernet speeds with PoE capability. The innovative retractable design eliminates cable clutter, improves airflow, and reclaims up to 50% more rack space compared to conventional cabling.
Key Features
-
Retractable 2.5m Cat.6a STP cable: Covers up to 46RU with automatic cable length management to eliminate tangles and excess cabling
-
Hot-swappable modular design: Exchange cassettes in seconds without tools or downtime for maximum flexibility
-
High-performance 10 Gigabit Ethernet: ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel certified for reliable network performance
-
Power over Ethernet (PoE) ready: STP version supports PoE (802.3af) to power connected devices
-
White cable for color-coded identification: Available in 8 colors to visually organize and simplify troubleshooting
-
10-year warranty: Backed by Patchbox's comprehensive warranty for long-term reliability
Revolutionary Cable Management
The Patchbox One system transforms network rack organization with its patented retractable cassette mechanism. Simply pull the cable to your desired length and it locks automatically. When you need to remove or reorganize connections, the cable retracts smoothly back into the cassette, storing excess length neatly and maintaining perfect cable management at all times. This innovation delivers up to 10× faster installation and troubleshooting compared to traditional patch cables.
Modular Rack Customization
Each cassette installs into a Patchbox One Frame (sold separately), which holds up to 24 cassettes. Mix and match cable types (Cat.6a STP/UTP, fiber optic), lengths (8RU, 30RU, 46RU), and colors to create a completely customized cabling solution tailored to your exact infrastructure needs. Swap any cassette instantly as your network evolves without disrupting operations.
Professional-Grade Performance
The flat Cat.6a U/FTP cable inside each cassette features 100% stranded copper conductors, gold-plated RJ45 connectors with snagless boots, and delivers 500MHz bandwidth. Tested to the highest industry standards, these cables support 10GBASE-T Ethernet and are RoHS compliant for environmental safety.
Compatibility
- Designed for Patchbox One Frame with mounting rails (required for 46RU cassettes)
- Backward compatible with Patchbox Plus+ and 365 systems
- Works with all standard 19-inch server racks and network cabinets
- Compatible with any equipment requiring Cat.6a Ethernet connectivity
What's in the Box
- 1 × Patchbox One Cassette 46RU STP White with integrated 2.5m Cat.6a cable
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP (Shielded Twisted Pair) |
| Cable Length |
2.5m (covers up to 46 rack units) |
| Cable Color |
White |
| Conductor Material |
100% stranded copper |
| Wire Gauge |
AWG36 |
| Bandwidth |
500MHz |
| Jacket Material |
PVC |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Network Speed |
Up to 10 Gigabit Ethernet (10GBASE-T) |
| Power over Ethernet |
PoE (802.3af) |
| RoHS Compliant |
Yes |
Connector Specifications
| Connector Type |
RJ45 shielded plug |
| Contact Plating |
Gold-plated pins |
| Boot Type |
Snagless booted |
Physical Specifications
| Cassette Width |
18mm (0.70 in) |
| Cassette Height |
40mm (1.57 in) |
| Cassette Depth |
600mm (23.62 in) |
| Weight |
0.28kg (0.61 lbs) |
| Housing Material |
ABS and RAL9001 |
| Mechanism Material |
Polyoxymethylene (POM) |
Environmental
| Operating Temperature |
-20°C to 60°C |
| Operating Humidity |
10% to 90% (non-condensing) |
Warranty
| Warranty Period |
10 years on cassettes and cables |
Specifications are sourced from the manufacturer product page and may be updated.
