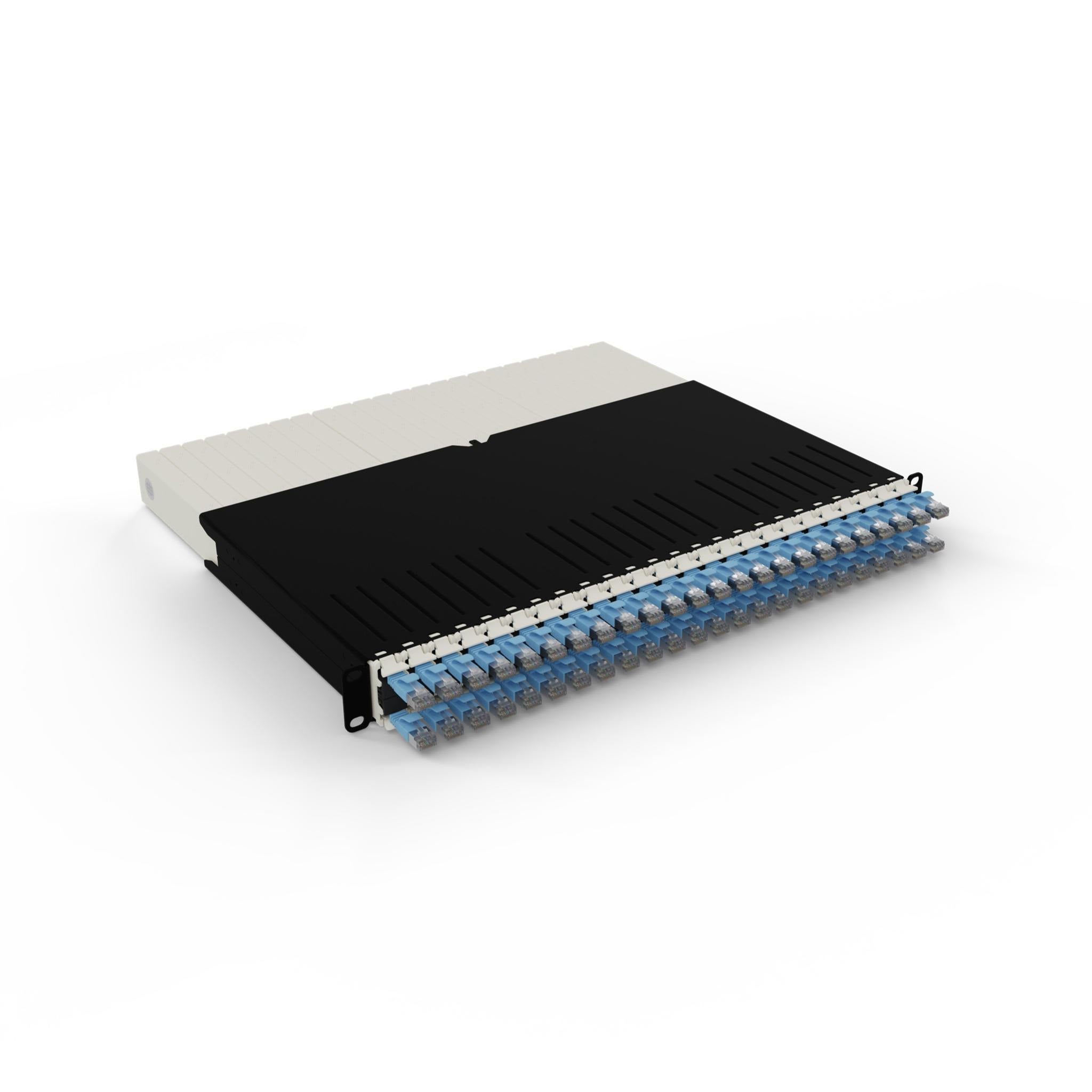

Patchbox ONE 8RU Cat.6a STP Blue 24-Port Retractable Cable Management System
The Patchbox ONE 8RU with Cat.6a STP shielded cables in Blue is the ultimate cable management solution for compact network racks and server cabinets. This innovative 24-port patch panel system features retractable 0.8m cables that automatically store excess length inside modular cassettes, eliminating cable clutter, improving airflow, and delivering up to 10x faster installation and maintenance. Designed for IT professionals who demand organization, efficiency, and reliability, the Patchbox ONE transforms chaotic racks into streamlined, professional installations that are faster to service and easier to troubleshoot.
Why Choose Patchbox ONE?
-
Retractable Cable System: 24 flat Cat.6a cables extend only as needed and retract into cassettes for a perpetually neat rack
-
50% More Rack Space: Replaces bulky 2RU cable managers with a sleek 1RU design, freeing up valuable space
-
10x Faster Deployment: Pre-terminated cables and modular cassettes reduce installation time dramatically
-
90% Less Downtime: Quickly trace, swap, or replace cables in seconds without tools or disruption
-
10 Gigabit Ready: STP Cat.6a cables deliver 10GbE performance and support PoE (802.3af) for powered devices
-
Color-Coded for Clarity: Blue cables simplify visual identification and network zone organization
-
Standards Compliant: Meets ISO/IEC 11801 Channel Class Ea and ANSI/TIA-568 Cat 6A Channel standards
-
10-Year Warranty: Built to last in mission-critical environments
Perfect for Compact Racks and Small Server Cabinets
The 8RU version with 0.8m cables is optimized for smaller server cabinets, wall-mount racks, and 2-post racks where space is at a premium. The STP shielded cables provide superior protection against electromagnetic interference, making them ideal for high-density environments, industrial settings, and PoE-powered devices like IP cameras, wireless access points, and VoIP phones.
Modular and Future-Proof Design
Each Patchbox ONE frame holds 24 modular cassettes that can be swapped, replaced, or rearranged in seconds without tools. Mix and match cable types, lengths, and colors as your infrastructure evolves. The system is backward compatible with Patchbox 365 and Plus+ frames, giving you flexibility for future upgrades and expansions across your network.
Easy Installation and Maintenance
The Patchbox ONE 8RU mounts effortlessly to 19-inch racks using the included /dev/mount toolless installation system. Simply slide the cassettes into the frame, click them into place, and you're ready to patch. The retractable cables eliminate the need for cable ties, velcro straps, or horizontal cable managers. Troubleshooting is faster than ever: cables are color-coded, labeled, and always at the perfect length.
Enhanced Airflow and Equipment Longevity
By storing excess cable length inside the cassettes rather than in messy loops behind switches and patch panels, Patchbox ONE dramatically improves airflow through your rack. Better airflow means cooler equipment, longer component life, and lower energy costs. This is especially critical in high-density server environments where thermal management is essential.
Ideal Applications
- Small server rooms and IT closets
- Wall-mount and 2-post network racks
- Edge computing and remote site deployments
- Surveillance networks with PoE-powered cameras
- Wireless access point distribution
- Industrial and warehouse networks
- Hospitality and retail backroom racks
- Educational and office IT installations
What's in the Box
- 1 × Patchbox ONE Frame (1RU, 19-inch)
- 24 × Patchbox ONE Cassettes with 0.8m Cat.6a STP cables (Blue)
- 6 × Patchcatch cable organizers (0RU alternative)
- 2 × /dev/mount toolless installation brackets
- 4 × Hex nuts for mounting
Full Specifications
System Overview
| Product Type |
24-port retractable patch panel system |
| Rack Units |
1RU (19-inch) |
| Number of Ports |
24 |
| Cable Length |
0.8m (covers up to 8RU) |
| Cable Type |
Cat.6a STP (Shielded Twisted Pair) |
| Cable Color |
Blue |
| Warranty |
10 years |
Cable Specifications
| Cable Standard |
Flat Cat.6a U/FTP |
| Performance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Bandwidth |
500MHz |
| Data Rate |
10 Gigabit Ethernet (10GbE) |
| Wire Gauge |
AWG36 |
| Conductor |
100% stranded copper |
| Jacket Material |
PVC |
| Power over Ethernet |
PoE (802.3af) supported |
| Connector Type |
RJ45 shielded plug, gold-plated pins, snagless boot |
| Compliance |
RoHS compliant |
Frame and Cassette Construction
| Frame Material |
RAL9005 powder-coated steel |
| Cassette Material |
ABS plastic (RAL9001) and stainless steel profiles |
| Plastic Components |
Polyoxymethylene (POM) |
| Installation Depth |
365mm (14.37 inches) |
| Mounting Compatibility |
2-post racks, 4-post racks, wall-mount racks |
Physical Specifications
| Dimensions (Frame) |
Width: 481.5mm (19 in), Height: 44mm (1.73 in), Depth: 365mm (14.37 in) |
| Dimensions (Cassette) |
Width: 18mm (0.70 in), Height: 40mm (1.57 in), Depth: 365mm (14.37 in) |
| Weight (Complete System) |
6.7kg (14.77 lbs) |
| Weight (Single Cassette) |
0.2kg (0.44 lbs) |
Environmental
| Operating Temperature |
-20°C to 60°C |
| Humidity (Non-Condensing) |
10% to 90% |
Specifications are sourced from the manufacturer product page and may be updated.
