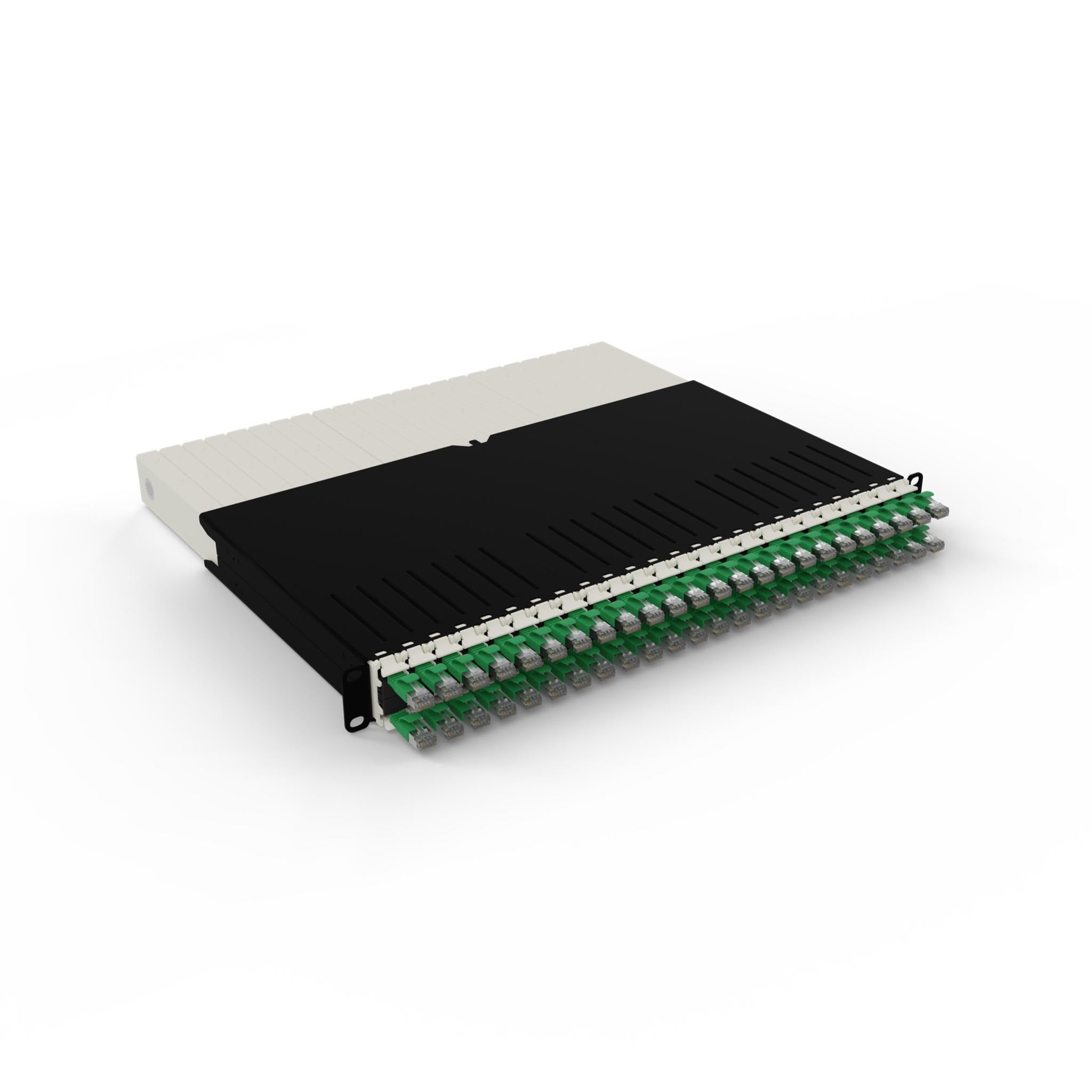

Patchbox One 8RU Cat.6a STP Green 24-Port Retractable Cable Management System
The Patchbox One 8RU is the ultimate cable management solution for your network rack. Featuring 24 retractable Cat.6a STP cables in green, this innovative system keeps your rack organized in the long term, making your IT infrastructure more cost-efficient. With this all-in-one solution, you can reclaim up to 50% more rack space, reduce server downtimes drastically, and make installation, maintenance, and troubleshooting up to 10x faster. The Cat.6a cables meet ISO/IEC 11801 Channel Class Ea standards and support PoE (802.3af) for powering devices, delivering up to 10 Gigabit Ethernet performance.
Key Features
-
24 Retractable Cat.6a STP Cables: 0.8m cables in green that automatically retract to your desired length, eliminating cable clutter and tangled cords
-
Up to 50% More Rack Space: Replaces bulky 2RU cable managers with a sleek 1RU design, freeing up valuable rack space for additional equipment
-
10x Faster Installation and Maintenance: No measuring, no zip ties, and up to 90% reduction in downtime duration during troubleshooting
-
Modular Cassette System: Swap cassettes in seconds without tools, adapting your rack to changing infrastructure needs
-
10 Gigabit Ethernet Performance: Cat.6a U/FTP cables support up to 10Gb/s data transfer, 500MHz bandwidth, with AWG36 100% stranded copper construction
-
PoE Capable: STP cables support PoE (802.3af) for powering network devices like IP cameras, VoIP phones, and wireless access points
-
Better Airflow and Cooling: Reduced cable overlength means improved airflow through your rack, keeping active equipment cooler and extending lifespan
-
10-Year Warranty: Complete system and cables backed by a comprehensive 10-year manufacturer warranty
Perfect for Compact Network Environments
The 8RU version is engineered specifically for smaller server cabinets and network closets. The 0.8m (2.6 ft) retractable cables can cover up to 8 rack units, making them ideal for compact installations where space is at a premium. Whether you're setting up a small business network, classroom network rack, or retail location server cabinet, the Patchbox One 8RU delivers professional cable management without the mess.
Modular and Future-Proof Design
Build your ideal rack setup by customizing the Patchbox One with exactly the cables you need. The system comes with 24 cassettes that can be replaced or rearranged in seconds, with no tools required and no downtime. Choose from 8 different cable colors for visual identification of different network zones, VLANs, or applications. The modular design is backward compatible with PATCHBOX Plus+/365 systems, protecting your infrastructure investment.
Professional-Grade Cable Specifications
Every cable in the Patchbox One 8RU system meets rigorous industry standards:
-
Cable Type: Flat Cat.6a U/FTP (shielded twisted pair)
-
Standards Compliance: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
-
Bandwidth: 500MHz for high-speed data transmission
-
Construction: AWG36, 100% stranded copper conductors with PVC jacket
-
Connectors: RJ45 shielded plug with gold-plated pins and snagless boots
-
Power over Ethernet: PoE (802.3af) capable for remote device power
-
RoHS Compliant: Environmentally responsible materials
Installation and Compatibility
The Patchbox One 8RU Frame can be mounted in 19-inch racks using the included /dev/mount hardware, fitting both 2-post and 4-post racks. The frame requires only 365mm (14.37 in) installation depth, making it suitable for shallow rack cabinets. Setup is fast and tool-free with the cassette click-in system, and each cable cassette features a retractable mechanism that keeps cables at the perfect length automatically.
Maximize Efficiency and Minimize Downtime
Traditional patch panels create cable chaos that costs time and money. The Patchbox One 8RU eliminates tangled cords, makes cable tracing instant, and allows technicians to work up to 8x faster during maintenance. With improved visibility and organization, you can patch a 24-port switch to 2 patch panels effortlessly. The result is a network rack that looks professional, performs better, and requires less maintenance labor.
What's in the Box
- 24 × Patchbox One Cassette 8RU Cat.6a STP Green (0.8m cables with RJ45 connectors)
- 1 × Patchbox One Frame (1RU, 19-inch rack mount)
- 6 × Patchcatch cable management clips
- 2 × /dev/mount toolless installation hardware
- 4 × Hex nuts for rack mounting
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP Shielded Twisted Pair (STP) |
| Cable Length |
0.8m / 2.6 ft (covers up to 8RU) |
| Cable Colour |
Green |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Bandwidth |
500MHz |
| Data Rate |
Up to 10 Gigabit Ethernet (10Gb/s) |
| Cable Construction |
AWG36, 100% stranded copper, PVC jacket |
| Connector Type |
RJ45 shielded plug, gold-plated pins, snagless booted |
| Power over Ethernet |
PoE (802.3af) |
| RoHS Compliant |
Yes |
Cassette Specifications
| Number of Cassettes |
24 |
| Cassette Profile Material |
ABS and RAL9001 |
| Plastic Parts |
Polyoxymethylene (POM) |
| Cassette Dimensions (W × H × D) |
18mm × 40mm × 365mm (0.70 in × 1.57 in × 14.37 in) |
| Cassette Weight |
0.2 kg / 0.44 lbs per cassette |
| Operating Temperature Range |
-20°C to 60°C |
| Ambient Humidity (Non-Condensing) |
10% to 90% |
Frame Specifications
| Frame Dimensions (W × H × D) |
481.5mm × 44mm × 365mm (19 in × 1.73 in × 14.37 in) |
| Rack Units |
1RU |
| Rack Compatibility |
19-inch, 2-post and 4-post racks |
| Installation Depth Required |
365mm (14.37 in) |
| Mounting Hardware |
2 × /dev/mount (toolless) with hex nuts |
System Specifications
| Total Ports |
24 ports |
| Warranty |
10 years (frame, cassettes, and cables) |
| Compatibility |
Backward compatible with PATCHBOX Plus+/365 |
| Country of Manufacture |
EU Made Product |
Specifications are sourced from the manufacturer product page and may be updated.
