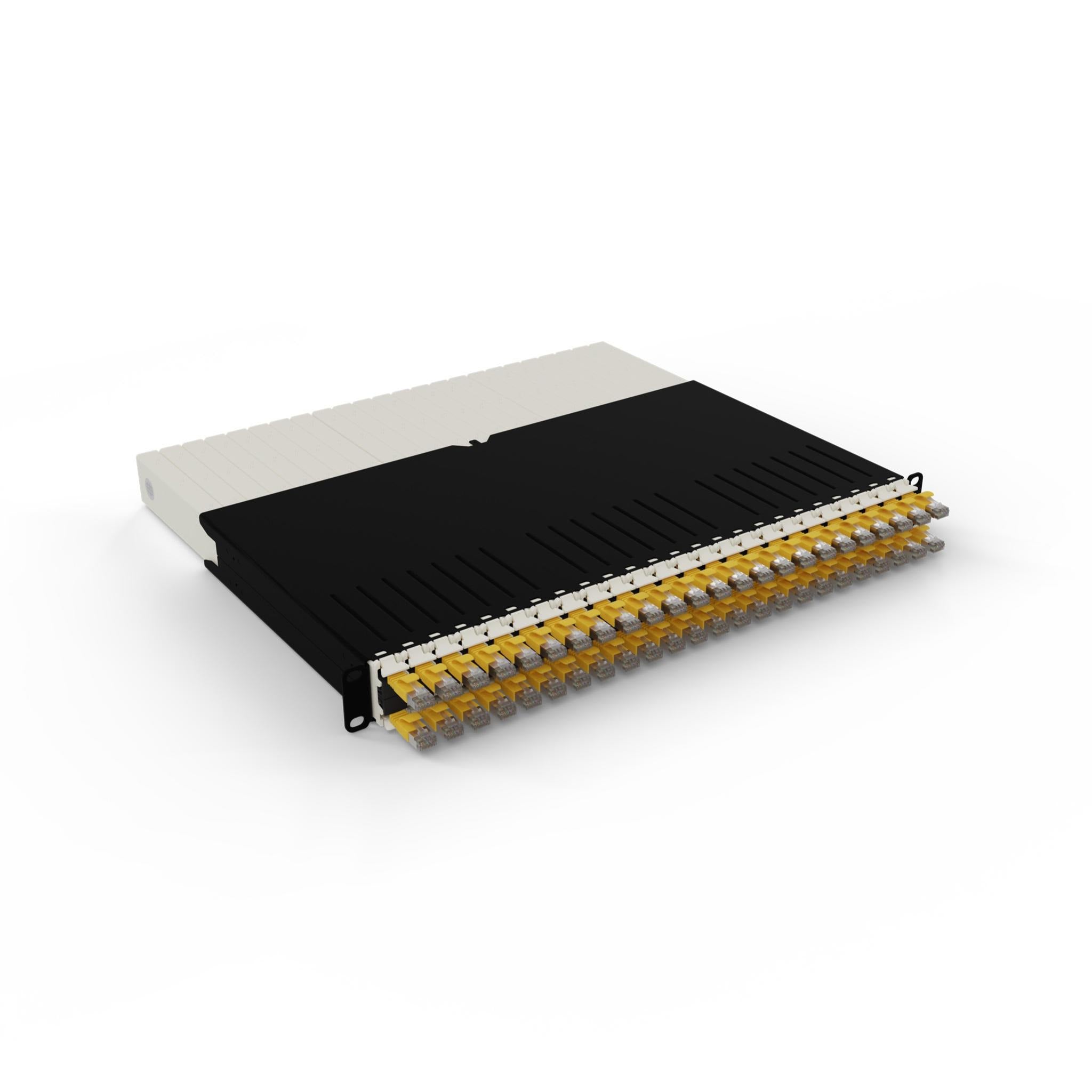

Patchbox One 8RU Cat.6a STP Yellow Retractable Cable Management System
Transform your network rack with the Patchbox One 8RU featuring 24 retractable Cat.6a STP cables in yellow for superior organization and efficiency. This innovative all-in-one cable management solution eliminates cable chaos, maximizes airflow, and reclaims up to 50% more rack space compared to traditional patch panels. Perfect for IT professionals managing smaller server cabinets, data centers, and network infrastructure who demand reliable 10 Gigabit Ethernet performance with PoE capability.
Why IT Professionals Choose Patchbox One
-
Retractable Cable System: 24 x 0.8m Cat.6a STP cables retract to exact length needed, covering up to 8 rack units
-
10x Faster Installation: Deploy and troubleshoot networks faster with no cable measuring or zip ties required
-
Space-Saving Design: 1RU height replaces bulky 2RU cable managers, freeing up valuable rack real estate
-
Color-Coded Organization: Yellow cables provide instant visual identification for structured cabling zones
-
PoE Ready: STP shielded cables support Power over Ethernet (802.3af) for powering devices
-
10 Gigabit Performance: Flat Cat.6a cables meet ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A standards
Modular Cassette System for Ultimate Flexibility
The Patchbox One Frame holds 24 individual cable cassettes that can be swapped in seconds without tools or downtime. Each cassette contains a retractable flat Cat.6a cable that's lightweight, flexible, and easy to handle. The modular design allows you to mix cable colors, types, and lengths as your network infrastructure evolves, making it fully customizable to your exact requirements.
Professional-Grade Network Performance
Engineered for mission-critical environments, the Cat.6a U/FTP STP cables deliver up to 10 Gigabit Ethernet at 500MHz bandwidth. Built with 100% stranded copper conductors (AWG36) and RJ45 gold-plated shielded plugs with snagless boots, these cables ensure reliable connectivity for switches, patch panels, servers, and network equipment. The shielded twisted pair design provides superior EMI protection in high-density rack environments.
Reduce Downtime and Boost Efficiency
Network technicians report up to 90% reduction in downtime thanks to the Patchbox One's organized, visible cable layout. No more tracing tangled patch cords through cable managers. The retractable system keeps cables at optimal length, improving airflow around active equipment and extending hardware lifespan. Installation depth of just 365mm fits 2-post racks, 4-post racks, and wall-mount configurations.
What's in the Box
- 24 x Patchbox One Cassette 8RU Cat.6a (STP, Yellow, 0.8m)
- 1 x Patchbox One Frame (1RU, 19-inch rack mount)
- 6 x Patchcatch cable management clips
- 2 x /dev/mount toolless mounting brackets
- 4 x Hex nuts for secure installation
Full Specifications
Cable Performance
| Cable Type |
Flat Cat.6a U/FTP STP |
| Bandwidth |
500MHz |
| Data Rate |
10 Gigabit Ethernet (10GBASE-T) |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Conductor |
AWG36, 100% stranded copper |
| Jacket Material |
PVC |
| Shielding |
STP (Shielded Twisted Pair) |
| PoE Support |
PoE (802.3af) |
| Connector |
RJ45 shielded plug, gold-plated pins, snagless booted |
| Cable Color |
Yellow |
Physical Specifications
| Cable Length (per cassette) |
0.8m / 2.6 ft (covers up to 8RU) |
| Frame Dimensions |
481.5mm (W) × 44mm (H) × 365mm (D)
19 in (W) × 1.73 in (H) × 14.37 in (D) |
| Cassette Dimensions (each) |
18mm (W) × 40mm (H) × 365mm (D)
0.70 in (W) × 1.57 in (H) × 14.37 in (D) |
| Rack Height |
1RU (1 rack unit) |
| Total System Weight |
6.7 kg / 14.77 lbs (complete kit) |
| Individual Cassette Weight |
0.2 kg / 0.44 lbs |
| Installation Depth |
365mm / 14.37 in |
| Rack Compatibility |
19-inch 2-post racks, 4-post racks, wall mount |
Construction & Environment
| Frame Material |
RAL9005 powder-coated steel |
| Cassette Profile Material |
ABS and RAL9001 |
| Plastic Components |
Polyoxymethylene (POM) |
| Operating Temperature |
-20°C to 60°C |
| Ambient Humidity |
10% to 90% (non-condensing) |
| RoHS Compliance |
Yes |
Warranty & Support
| Warranty Period |
10 years on cassettes and cables |
| Compatibility |
Backward compatible with Patchbox Plus+ and 365 systems |
Specifications are sourced from the manufacturer product page and may be updated.
