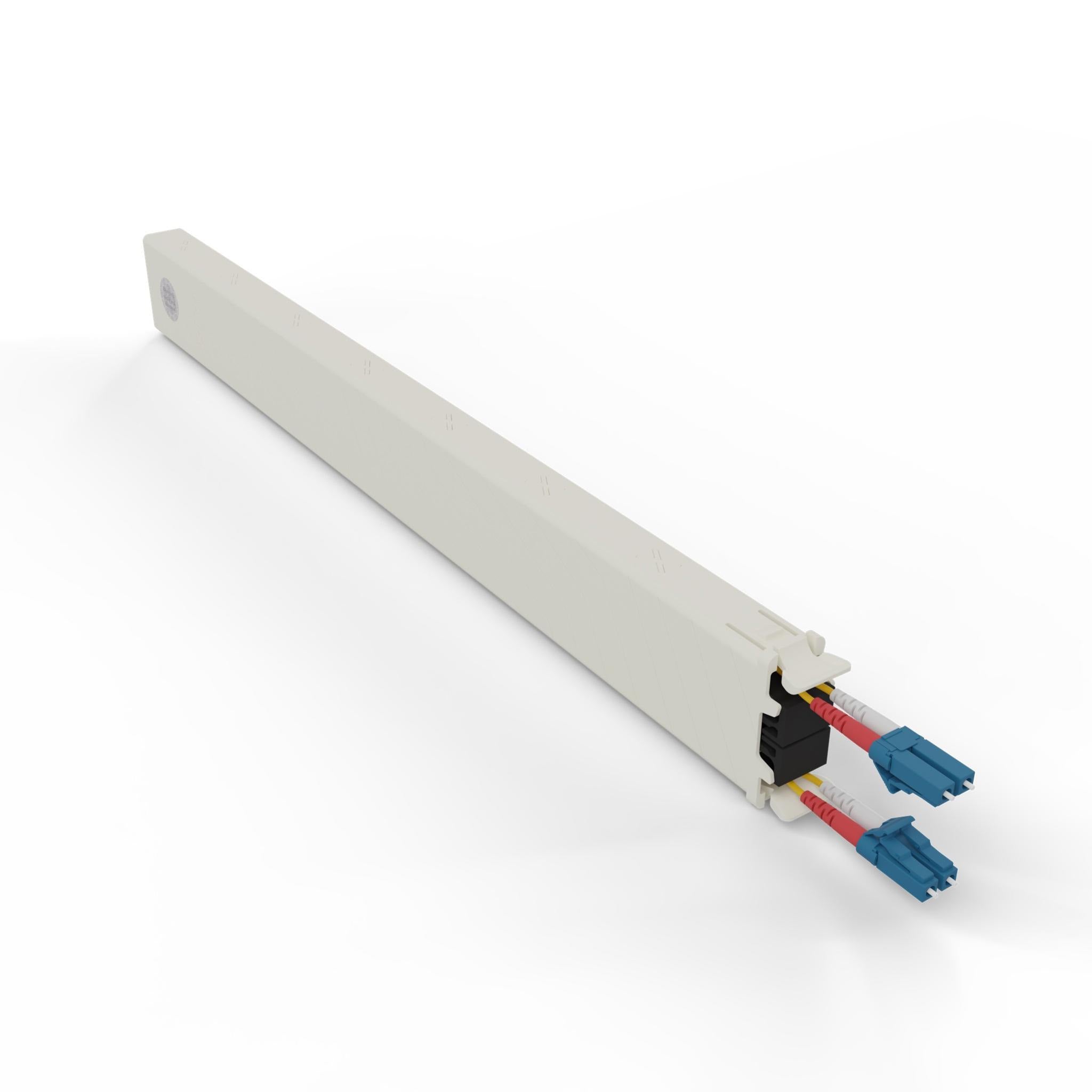

Patchbox one 8RU OS2 LC-LC Fiber Optic Cassette with Retractable Cable Management
The Patchbox one Cassette 8RU OS2 LC-LC is a revolutionary fiber optic cable management solution designed for 19-inch racks. Featuring Corning ClearCurve technology, this cassette delivers high-performance single-mode OS2 fiber connectivity with 0.8m retractable cables that cover up to 8RU. Perfect for data centres, server rooms, and network installations where space efficiency and cable organization are critical.
Why You'll Love the Patchbox one Cassette
-
Retractable Cable Design: Store excess cable length inside the cassette for a clean, organized rack with maximum airflow
-
Corning ClearCurve Fiber: World's most flexible, high-performance fiber optic cables with superior bend-insensitivity
-
Tool-Free Installation: Swap cassettes in seconds without any tools or downtime
-
Space Saving: Reclaim up to 50% more rack space compared to conventional cable management systems
-
High-Speed Performance: Supports 10/40/100 Gb/s data transmission for demanding network applications
-
10-Year Warranty: Built to last with comprehensive manufacturer warranty coverage
Superior Fiber Optic Performance
The cassette features OS2 single-mode fiber (9µ/125µ) with G.657.B3 specification, providing exceptional performance for long-distance, high-bandwidth applications. The yellow LSZH jacket ensures fire safety compliance while maintaining the cable's remarkable flexibility. LC Duplex connectors on both ends deliver reliable, low-loss connections for enterprise-grade networking.
Modular and Flexible System
Designed to work with the patchbox.one Frame (holds up to 24 cassettes), this modular system lets you mix fiber cassettes with copper cassettes or blind panels to create a custom network infrastructure that adapts as your needs evolve. The 8RU cassette can be mounted with the /dev/mount for easy integration into any standard 19-inch rack.
Professional Cable Management
Say goodbye to tangled cables and wasted rack space. The retractable design keeps cables at the exact length you need, while unused cables are safely stored inside the cassette. The system eliminates the need for conventional 1RU cable managers, giving you more space for active equipment and improved airflow throughout your rack.
Technical Specifications
| Cable Type |
OS2 Single-Mode Fiber Optic |
| Fiber Specification |
RBS 9µ/125µ, G.657.B3 |
| Connector Type |
LC Duplex to LC Duplex |
| Cable Length |
0.8m (2.6ft) - covers up to 8RU |
| Cable Jacket |
LSZH (Low Smoke Zero Halogen), Yellow |
| Data Rate Support |
10/40/100 Gb/s |
| Technology |
Corning ClearCurve |
| Cassette Width |
18mm (0.70in) |
| Cassette Height |
40mm (1.57in) |
| Cassette Depth |
365mm (14.37in) |
| Weight |
0.22kg (0.48 lbs) |
| Cassette Material |
ABS and RAL9001 |
| Operating Temperature |
-20°C to 60°C |
| Humidity (Non-Condensing) |
10% - 90% |
| Compliance |
RoHS compliant |
| Warranty |
10 Years |
| Made In |
EU |
What's in the Box
- 1 × Patchbox one Cassette 8RU OS2 LC-LC with integrated retractable fiber optic cable
Compatibility
This cassette is designed for use with the patchbox.one Frame system and is backward compatible with PATCHBOX Plus+ and 365 frames. You can mix patchbox.one cassettes with earlier generation PATCHBOX cassettes within the same frame for ultimate flexibility.
Specifications are sourced from the manufacturer product page and may be updated.
