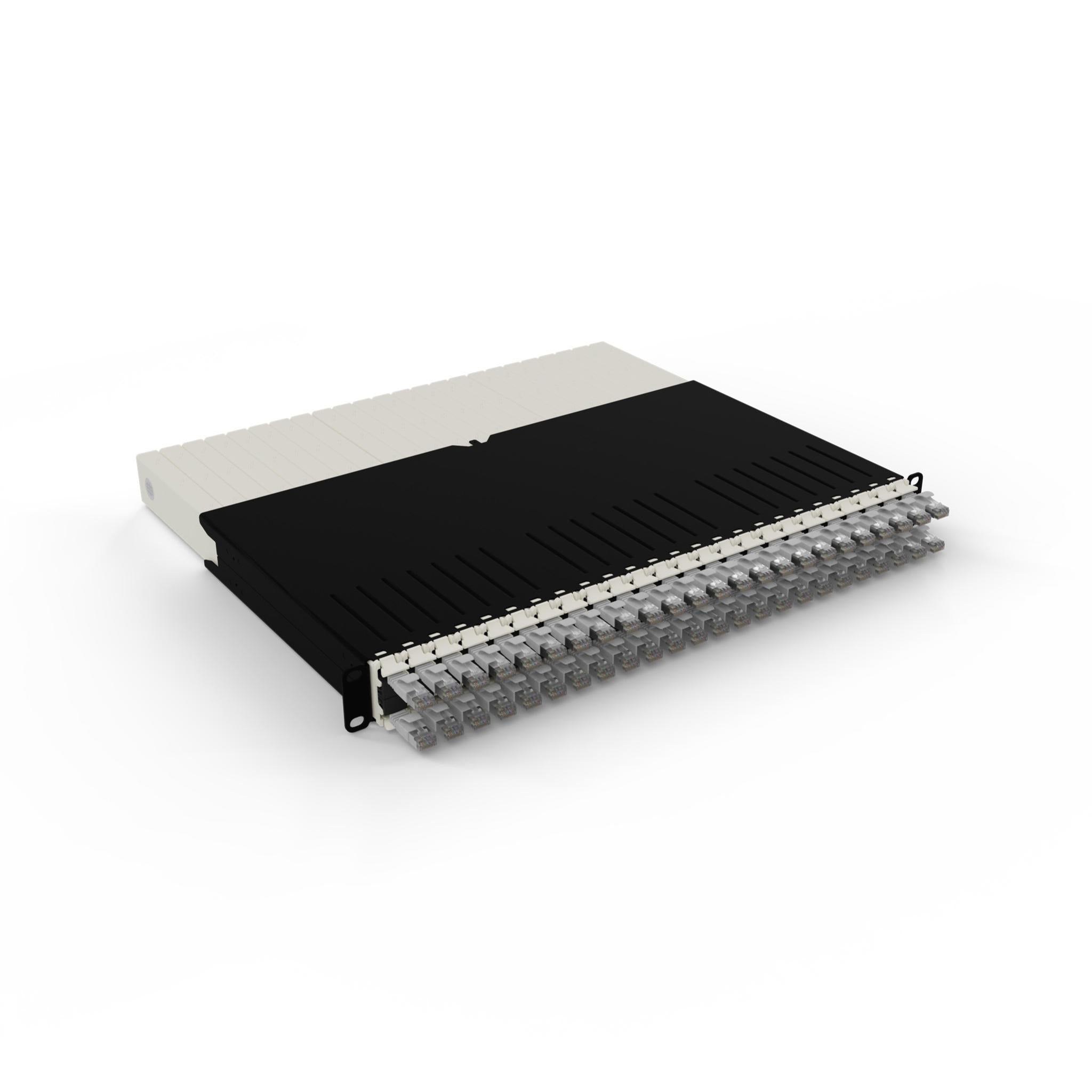

PATCHBOX one 8RU STP Grey 24-Port Retractable Cable Management System
The PATCHBOX one 8RU STP Grey revolutionizes network rack cable management with its innovative 24-port retractable Cat.6a cable system. Perfect for server rooms, data centres, and compact network cabinets, this all-in-one solution includes 24 pre-loaded 0.8m STP shielded cables in grey that automatically retract to your desired length, eliminating cable clutter and improving airflow. Engineered to cover up to 8 rack units, the PATCHBOX one transforms messy, time-consuming installations into streamlined efficiency while reclaiming up to 50% more rack space than conventional cable management solutions.
Why IT Professionals Choose PATCHBOX one
-
10x Faster Installation & Troubleshooting: Retractable cables extend only as needed - no measuring, no zip ties, no cable managers required
-
Up to 50% More Rack Space: Replaces bulky 2RU horizontal cable managers with a sleek 1RU design that stores excess cable length inside cassettes
-
10 Gigabit Performance: Cat.6a U/FTP cables meet ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A standards with 500MHz bandwidth
-
PoE Ready: STP cables support PoE (802.3af) to power switches, access points, IP cameras, and VoIP phones
-
Modular & Scalable: Swap any of the 24 cassettes in seconds without tools - adapt your rack as infrastructure needs change
-
Improved Airflow: Minimal cable overlength means better ventilation and cooler-running equipment with up to 90% reduced downtime
High-Performance Shielded Networking
Each of the 24 integrated cassettes contains a flat Cat.6a U/FTP shielded cable constructed with AWG36, 100% stranded copper conductors and a PVC jacket. These cables deliver up to 10 Gigabit Ethernet speeds and are fully RoHS compliant. The RJ45 shielded plugs feature gold-plated pins and snagless boots for reliable connections and easy insertion. The grey cable colour provides professional aesthetics and helps with visual organization in mixed network environments.
Perfect for Compact Racks
The 8RU version is engineered for smaller server cabinets and network closets where space is at a premium. With 0.8m (2.6ft) cables that cover up to 8 rack units, you get exactly the length you need without excess slack. The system features a compact 365mm installation depth and fits both 2-post and 4-post racks using the included /dev/mount toolless mounting system.
Built to Last
PATCHBOX one is constructed with durable ABS and RAL9001 cassette profiles and Polyoxymethylene (POM) plastic parts. Designed for mission-critical environments, it operates reliably across a -20°C to 60°C temperature range and 10% to 90% non-condensing humidity. Every component is backed by an industry-leading 10-year warranty, delivering peace of mind for long-term deployments.
Easy Maintenance & Future-Proofing
The modular cassette design means you can replace or reconfigure any cable in seconds - no need to re-cable the entire rack when changes are needed. Mix and match with PATCHBOX UTP cassettes, fiber optic cassettes, or blind panels to create a customized solution. The included 6 Patchcatch cable guides (0RU design) provide additional cable routing without consuming valuable rack space.
What's in the Box
- 24 × patchbox.one / Cassette / 8RU / STP / Grey (with 0.8m Cat.6a U/FTP cables)
- 1 × patchbox.one / Frame (1RU, 19-inch rack mount)
- 6 × Patchcatch cable management guides
- 2 × /dev/mount toolless mounting brackets
- 4 × Hex nuts
Full Specifications
System Overview
| Number of Ports |
24 (pre-loaded cassettes) |
| Rack Size |
1RU (1 Rack Unit) |
| Coverage |
Up to 8 rack units |
| Installation Depth |
365mm (14.37 in) |
| Rack Compatibility |
2-post and 4-post racks, 19-inch standard |
| Mounting System |
/dev/mount toolless brackets included |
Cable Specifications (STP)
| Cable Type |
Flat Cat.6a U/FTP (Shielded Twisted Pair) |
| Cable Length |
0.8m (2.6 ft) per cassette |
| Cable Colour |
Grey |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Bandwidth |
500MHz |
| Conductor |
AWG36, 100% stranded copper |
| Jacket Material |
PVC |
| PoE Support |
PoE (802.3af) |
| Data Rate |
Up to 10 Gigabit Ethernet |
| Connector Type |
RJ45 shielded plug, gold-plated pins, snagless boot |
| RoHS Compliance |
Yes |
Cassette Specifications
| Cassette Dimensions (each) |
Width: 18mm (0.70 in), Height: 40mm (1.57 in), Depth: 365mm (14.37 in) |
| Cassette Profile Material |
ABS and RAL9001 |
| Plastic Components |
Polyoxymethylene (POM) |
| Cassette Weight |
0.2kg (0.44 lbs) per cassette |
| Retractable Mechanism |
Spring-loaded pulley system |
| Tool-Free Replacement |
Yes, swap in seconds |
Environmental & Physical
| Operating Temperature |
-20°C to 60°C |
| Ambient Humidity |
10% to 90% (non-condensing) |
| Frame Material |
Powder-coated steel |
| Warranty |
10 years (frame, cassettes, and cables) |
| Custom Tariff Number |
85444210 |
Specifications are sourced from the official manufacturer product page and may be updated.
