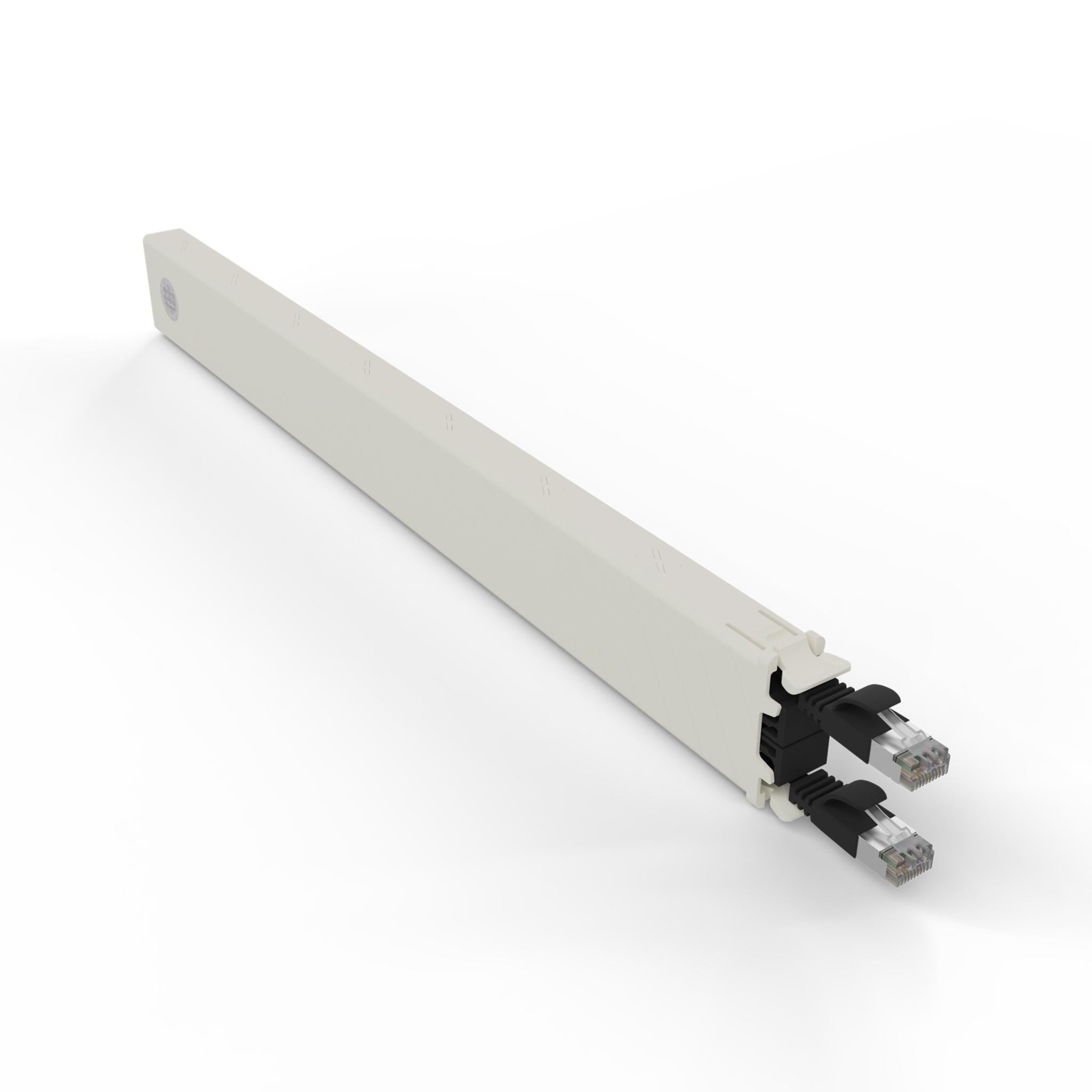

Patchbox one Cassette 8RU STP Black Retractable Cat.6a Cable Module
The Patchbox one Cassette 8RU STP Black is a modular cable management solution designed for professional network and server racks. Featuring a 0.8m retractable Cat.6a shielded twisted pair (STP) cable, this cassette covers up to 8 rack units with precision and efficiency. Perfect for data centres, server rooms, and IT infrastructure, it delivers 10 Gigabit Ethernet performance with PoE support, keeping your rack organised and clutter-free.
Key Features
-
Retractable 0.8m Cat.6a STP Cable: Flat, flexible cable extends only as needed and retracts neatly into the cassette for a clean, organised rack
-
10 Gigabit Ethernet Ready: ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A Channel compliant for high-speed data transmission up to 500MHz
-
PoE Support: Shielded STP cable supports Power over Ethernet (802.3af), enabling you to power network devices without separate power cables
-
Modular and Swappable: Swap cassettes in seconds without tools or downtime, adapting your rack to changing infrastructure needs
-
Black Cable Colour: Professional black finish, with additional colours available for colour-coded cable management
-
10-Year Warranty: Built to last with a comprehensive 10-year warranty on cassettes and cables
Perfect for Compact Server Racks
Designed for smaller 19-inch server cabinets and network racks, the 8RU cassette is ideal for installations where cable runs are up to 8 rack units. The retractable design eliminates cable slack, improving airflow and reducing clutter by up to 50% compared to traditional patch panels. IT technicians benefit from faster installation and troubleshooting, with maintenance times reduced by up to 90%.
High-Performance, Standards-Compliant Cabling
The flat Cat.6a U/FTP cable inside each cassette is engineered with 100% stranded copper conductors (AWG36), PVC jacket, and RJ45 shielded plugs with gold-plated pins. Tested to international standards, the cable delivers reliable, high-speed connectivity for modern network environments, supporting applications from server patching to switch interconnects.
Modular Cable Management System
The Patchbox one system is built around modular cassettes that slot into the Patchbox one Frame (sold separately), which accommodates up to 24 cassettes. This allows you to customise your rack setup by mixing cable lengths, types (UTP, STP, or fiber optic), and colours to suit your exact requirements. Change cassettes on the fly without disrupting your network.
Built for Professional IT Environments
The cassette is constructed from ABS and RAL9001 profiles with Polyoxymethylene (POM) plastic parts, designed to withstand demanding data centre environments. Operating temperature range is -20°C to 60°C, with non-condensing humidity tolerance of 10% to 90%. RoHS compliant for environmental responsibility.
What's in the Box
- 1 × Patchbox one Cassette 8RU with 0.8m Cat.6a STP Cable (Black)
Full Specifications
Cable Specifications
| Cable Type |
Flat Cat.6a U/FTP (Shielded Twisted Pair) |
| Cable Length |
0.8m / 2.6ft (covers up to 8RU) |
| Cable Colour |
Black |
| Conductor |
AWG36, 100% stranded copper |
| Jacket Material |
PVC |
| Frequency |
500MHz |
| Data Rate |
10 Gigabit Ethernet (10GBASE-T) |
| Standards Compliance |
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| PoE Support |
PoE (802.3af) - STP only |
| Environmental Compliance |
RoHS compliant |
Connector
| Connector Type |
RJ45 shielded plug |
| Contact Plating |
Gold-plated pins |
| Boot Type |
Snagless |
Cassette Physical
| Width |
18mm / 0.70in |
| Height |
40mm / 1.57in |
| Depth |
365mm / 14.37in |
| Weight (Gross) |
0.2kg / 0.44lbs |
| Cassette Profiles |
ABS and RAL9001 |
| Plastic Parts |
Polyoxymethylene (POM) |
Environmental & Operating Conditions
| Operating Temperature |
-20°C to 60°C |
| Ambient Humidity (Non-Condensing) |
10% to 90% |
Packaging
| Packaging Dimensions |
Width: 433mm / 17.04in, Height: 50mm / 1.96in, Depth: 28mm / 1.10in |
| Custom Tariff Number |
85444210 |
Compatibility
| Compatible Frame |
Patchbox one Frame (sold separately) |
| Rack Compatibility |
19-inch racks (2-post and 4-post) |
| Mounting |
Frame with 8RU cassettes can be mounted with /dev/mount |
| Backward Compatibility |
Compatible with Patchbox Plus+ and 365 systems |
Warranty
| Warranty Period |
10 years on cassettes and cables |
Specifications are sourced from the manufacturer product page and may be updated.
