Patchbox One Frame Modular 19" Rack Mount for Network Cable Management
The Patchbox One Frame is the foundation of your modular cable management system, designed to transform your network rack from chaos to complete organization. This 1RU 19-inch rack-mountable frame holds up to 24 cable cassettes, offering full flexibility and future-proof modularity for data centres, server rooms, and IT installations across Australia.
Key Features
-
Modular Design: Holds up to 24 Cable Cassettes for customizable network configurations
-
Universal Compatibility: Works with patchbox.one, PATCHBOX Plus+, and PATCHBOX 365 Cassettes
-
Tool-Free Installation: Quick, efficient mounting in any 19" rack with included /dev/mount brackets
-
10-Year Warranty: Built for long-term performance and reliability
-
Durable Construction: RAL9005 powder-coated steel frame with precision POM plastic components
-
Zero Rack Space Waste: Integrated Patchcatch cable management eliminates need for separate 1RU managers
Complete Modularity for Growing Networks
The patchbox.one Frame enables full modularity for long-term rack organization. Build your very own patchbox.one system by configuring the Frame with a variety of Cat.6a Cable Cassettes, Fiber Optic Cassettes, or Blind Panels to fit your setup and scale with your needs. Each cassette can be replaced or swapped within seconds, allowing for rapid reconfiguration without downtime.
Fast, Tool-Free Installation
Designed for efficient mounting in any 19-inch rack, the Frame enables rapid IT deployment with the included /dev/mount tool-free brackets. Compatible with both threaded and square-punched racks, installation takes just seconds. The Frame can be mounted with /dev/mount (for 8RU cassettes) or with the included mounting rails (for 30RU or 46RU cassettes), giving you complete flexibility based on your cable length requirements.
Built to Last a Decade
Constructed from RAL9005 powder-coated steel with high-quality Polyoxymethylene (POM) plastic parts, this lightweight yet robust frame is designed for heavy-duty use while maintaining a compact 1RU footprint. The frame's robust construction is backed by a 10-Year Warranty, ensuring durability and performance for years to come.

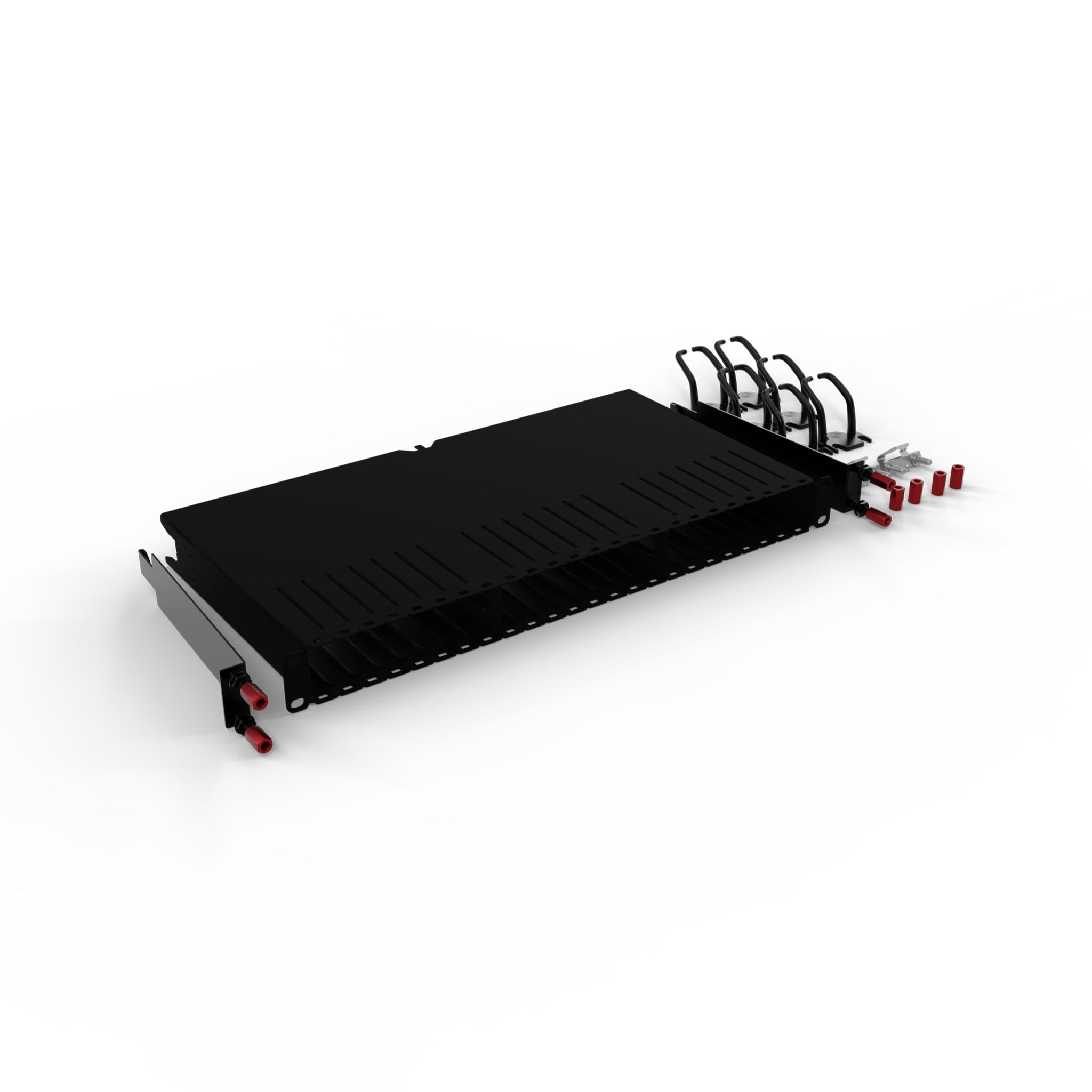

What's in the Box
- 1 × patchbox.one Frame
- 2 × Mounting rails
- 2 × /dev/mount brackets
- 4 × Flanges
- 8 × Hex nuts
- 6 × Patchcatch cable guides
Full Specifications
Construction
| Frame Material |
RAL9005 powder-coated steel |
| Plastic Components |
Polyoxymethylene (POM) |
| Mounting Rails |
Stainless steel, RAL9005 finish |
| Cassette Capacity |
Up to 24 cable cassettes |
| Rack Compatibility |
19" threaded and square-punched racks |
Physical Dimensions
| Width |
481 mm (18.93 in) |
| Height |
50 mm (1.96 in) / 1RU |
| Depth |
240 mm (9.44 in) |
| Weight |
2.65 kg (5.84 lbs) |
Environmental
| Operating Temperature |
-10°C to 60°C (14°F to 140°F) |
| Ambient Humidity (Non-Condensing) |
10% to 90% |
Package Information
| Packaging Dimensions (W×H×D) |
520 mm × 50 mm × 250 mm (20.47 in × 1.96 in × 9.84 in) |
| Country of Origin |
Thailand |
| Customs Tariff Number |
85389099 |
| Warranty |
10 years |
Specifications are sourced from the manufacturer product page and may be updated. Cable cassettes sold separately.
