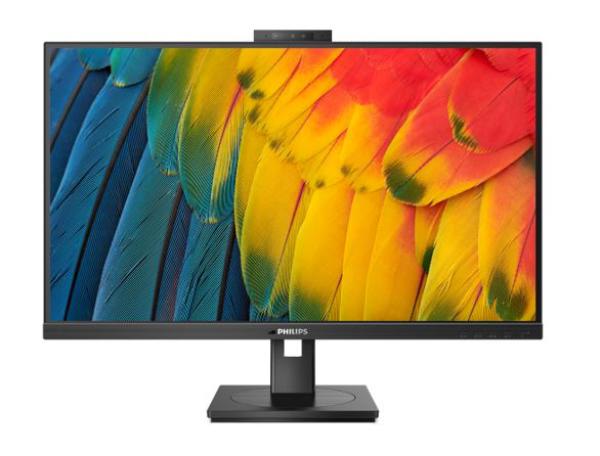

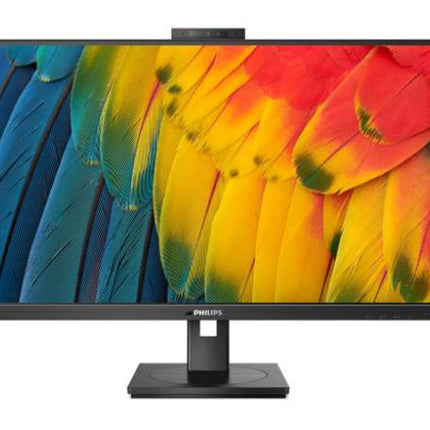

Philips 24B1U5301H 24 Inch Full HD USB-C Docking Monitor with Pop-Up Webcam
The Philips 24B1U5301H is a premium business monitor that simplifies your workspace with one-cable USB-C docking, 90W power delivery, and an integrated 5 MP pop-up webcam with Windows Hello support. Featuring a 23.8-inch Full HD IPS display with 75Hz refresh rate and 4ms response time, this versatile monitor delivers crisp visuals and seamless connectivity for the modern hybrid workplace.
Key Features
-
USB-C Docking with 90W Power Delivery: Single cable solution for video, data, networking, and charging your notebook
-
5 MP Pop-Up Webcam: Secure, retractable webcam with Windows Hello facial recognition support
-
Full HD IPS Display: 23.8-inch (60.5 cm) panel with 1920 × 1080 resolution and 178° viewing angles
-
75Hz Refresh Rate: Smoother visuals for productivity and light gaming
-
Built-in KVM Switch: Control two PCs with one monitor, keyboard, and mouse setup
-
MultiView Technology: View content from two sources simultaneously
-
DisplayPort-Out: Daisy-chain multiple displays for expanded workspace
-
RJ45 LAN via USB-C: Fast, secure network connection through the USB-C cable
-
Dual 5W Speakers: Integrated stereo speakers with noise-cancelling microphone
-
SmartErgoBase: Height adjust, tilt, swivel, and pivot for optimal ergonomics
Display Performance
The IPS panel delivers accurate colours and wide 178° viewing angles, making it ideal for professional applications, photo editing, and content creation. With 300 cd/m² brightness and 1000:1 contrast ratio (50,000,000:1 SmartContrast), images remain vivid and clear. The 4ms gray-to-gray response time ensures smooth motion with minimal ghosting.
USB-C Docking & Connectivity
Simplify your desktop with one-cable USB-C docking that combines video, data transfer, Ethernet networking, and 90W power delivery to charge your notebook. The monitor includes RJ45 Ethernet pass-through via USB-C, eliminating the need for dongles. Additional connectivity includes HDMI 1.4, DisplayPort 1.4, and DisplayPort-out for daisy-chaining displays, plus USB 3.2 ports for high-speed peripherals.
Collaboration Features
The innovative pop-up 5 MP webcam emerges when needed and securely tucks away for privacy. It supports Windows Hello facial recognition for fast, secure login in less than 2 seconds. The noise-cancelling microphone and dual 5W speakers provide clear audio for video calls and collaboration.
Productivity Enhancements
-
MultiView: Display content from two sources simultaneously for efficient multitasking
-
KVM Switch: Control two PCs with one set of peripherals
-
PowerSensor: Reduces brightness when you step away to save up to 75% energy costs
-
LightSensor: Automatically adjusts brightness based on ambient lighting
-
TUV Eye Comfort Certified: Flicker-free, low blue mode, and ergonomic design reduce eye strain
Ergonomic Design
The SmartErgoBase provides full ergonomic adjustability with height adjustment, tilt, swivel, and 90° pivot rotation. VESA 100 × 100 mm mounting compatibility offers flexible installation options. The monitor meets TUV Rheinland Eye Comfort standards for extended comfortable viewing.
What's in the Box
- Philips 24B1U5301H Monitor
- SmartErgoBase Stand
- USB-C Cable
- HDMI Cable
- DisplayPort Cable
- Power Cable
- Quick Start Guide
Full Specifications
Display
| Panel Type |
IPS Technology |
| Backlight |
W-LED |
| Panel Size |
23.8 inch / 60.5 cm |
| Aspect Ratio |
16:9 |
| Resolution |
1920 × 1080 (Full HD) |
| Refresh Rate |
75 Hz |
| Response Time |
4 ms (Gray to Gray) |
| Brightness |
300 cd/m² |
| Contrast Ratio |
1000:1 (Typical), 50,000,000:1 (SmartContrast) |
| Pixel Density |
93 PPI |
| Pixel Pitch |
0.2745 × 0.2745 mm |
| Viewing Angle |
178° (H) / 178° (V) |
| Screen Coating |
Anti-Glare, 3H, Haze 25% |
| Effective Viewing Area |
527.04 (H) × 296.46 (V) mm |
Connectivity
| USB-C |
1 × USB-C (90W Power Delivery, DisplayPort Alt Mode, USB 3.2, RJ45 LAN pass-through) |
| HDMI |
1 × HDMI 1.4 |
| DisplayPort Input |
1 × DisplayPort 1.4 |
| DisplayPort Output |
1 × DisplayPort-out (for daisy-chaining) |
| USB Upstream |
1 × USB-C / 1 × USB-B |
| USB Downstream |
4 × USB 3.2 (2 × with fast charging) |
| Ethernet |
RJ45 LAN (via USB-C docking) |
| Audio Out |
1 × 3.5mm headphone jack |
Audio & Webcam
| Speakers |
Dual 5W integrated speakers |
| Microphone |
Noise-cancelling microphone |
| Webcam |
5 MP pop-up webcam with Windows Hello support |
| Webcam Features |
Windows Hello facial recognition, physical privacy switch |
Features
| MultiView |
Picture-by-Picture, Picture-in-Picture |
| KVM Switch |
Yes, control 2 PCs with 1 set of peripherals |
| PowerSensor |
Yes, infrared presence sensor |
| LightSensor |
Yes, automatic brightness adjustment |
| Low Blue Mode |
Yes |
| Flicker-Free |
Yes |
| Adaptive Sync |
Yes |
Ergonomics
| Stand Type |
SmartErgoBase |
| Height Adjustment |
150 mm |
| Tilt |
-5° to +20° |
| Swivel |
-65° to +65° |
| Pivot |
90° (Portrait mode) |
| VESA Mount |
100 × 100 mm |
Physical Specifications
| Dimensions with Stand (W × H × D) |
540 × 473 × 215 mm |
| Dimensions without Stand (W × H × D) |
540 × 323 × 51 mm |
| Weight with Stand |
3.9 kg |
| Weight without Stand |
3.2 kg (approx.) |
| Colour |
Black |
Power & Environmental
| Power Supply |
Built-in |
| Power Consumption (Typical) |
18.1W |
| Power Consumption (Standby) |
< 0.3W |
| Power Voltage |
100-240V AC, 50/60Hz |
| Energy Rating |
ENERGY STAR 8.0, EPEAT |
| Certifications |
CB, CE, FCC Class B, TUV/GS, TUV Eye Comfort, CU-EAC, RoHS |
Warranty
| Warranty Period |
3 years (36 months) |
| Coverage |
Parts, labour, and backlight |
Specifications are sourced from the manufacturer product page and may be updated.
