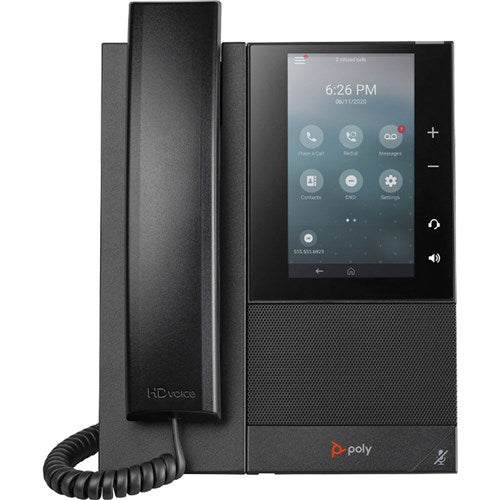

Poly CCX 505 Open SIP Business Media Phone with 5-Inch Touchscreen
The Poly CCX 505 is a high-performance business media phone designed to meet the demands of modern workers in office and home environments. Featuring a 5-inch color touchscreen with smartphone-like orientation, integrated Wi-Fi and Bluetooth 4.2, and legendary Poly HD Voice quality, this VoIP phone delivers professional communication with intuitive one-touch access to contacts and meetings. Powered by Android 9 and supporting Open SIP, the CCX 505 offers flexible compatibility with a wide range of IP PBX systems and hosted VoIP providers.
Crystal-Clear Audio Quality
Experience professional voice communication with Poly HD Voice, Poly Acoustic Clarity, and Poly Acoustic Fence technologies that eliminate background noise and deliver rich, lifelike sound quality. The full-duplex speakerphone with advanced echo cancellation ensures clear conversations whether you're in a home office or busy call center environment.
Key Features
-
5-inch Multi-Touch Display: 720 × 1280 pixel resolution color LCD touchscreen with 9:16 aspect ratio, gesture-based controls, and adjustable display modes including dark mode and high contrast
-
Integrated Wireless Connectivity: Built-in dual-band Wi-Fi (2.4 GHz and 5.0 GHz) and Bluetooth 4.2 for wireless headset pairing and mobile contact synchronization
-
Flexible Headset Options: Support for Bluetooth, USB-A, USB-C, and RJ9 analog headsets with EHS (Electronic Hook Switch) compatibility
-
Dual Gigabit Ethernet: Two 10/100/1000 Mbps RJ-45 ports for reliable network connectivity and PC pass-through
-
PoE-Enabled: Built-in IEEE 802.3af Power over Ethernet (Class 3) support with 13W maximum power consumption
-
HD Voice Codecs: Supports G.711, G.729AB, G.722, G.722.1 iLBC, and OPUS for superior voice quality
Simple and Intuitive Design
By design, the CCX 505 is simple and intuitive to use with one-touch access to your contacts and meetings. The dynamic touchscreen interface lets you adjust font size, contrast, and display modes to suit your preferences. Get right to work with a familiar smartphone-like interface that reduces training time and boosts productivity.
Versatile Connectivity Options
The CCX 505 gives you multiple ways to connect and communicate:
-
Network: Dual Gigabit Ethernet ports (PoE-enabled) or integrated Wi-Fi
-
USB Expansion: 1 USB-A and 1 USB-C port for headsets, media storage, and expansion modules
-
Wireless: Bluetooth 4.2 for headsets and mobile device integration
-
Handset: RJ9 port for included analog handset
Enterprise-Grade Management
IT teams will appreciate robust provisioning and management capabilities including Poly Lens, Zero Touch Provisioning, web UI management, and support for 802.1X authentication, SRTP media encryption, HTTPS secure provisioning, and TLS security.
What's in the Box
- Poly CCX 505 console
- Handset with handset cord
- Network (LAN) cable (CAT-5E)
- Desk stand
- Setup sheet
- Note: Power supply not included (optional accessory for Wi-Fi operation when not using PoE)
Full Specifications
Display
| Screen Size |
5-inch (12.7 cm) diagonal |
| Resolution |
720 × 1280 pixels |
| Aspect Ratio |
9:16 |
| Technology |
Color LCD, backlit |
| Touch Interface |
Gesture-based, multi-touch capable |
Audio
| Voice Technologies |
Poly HD Voice, Poly Acoustic Clarity, Poly Acoustic Fence, NoiseBlockAI |
| Frequency Response |
100 Hz to 20 kHz |
| Codecs |
G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC, OPUS |
| Speakerphone |
Full-duplex with advanced echo cancellation |
| Hearing Aid Compatibility |
ITU-T P.370 and TIA 504A standards |
Connectivity
| Ethernet |
Dual Gigabit Ethernet (10/100/1000 Mbps) RJ-45 ports |
| Wi-Fi |
Dual-band: 2.4-2.4835 GHz (802.11b/g/n HT-20), 5.15-5.825 GHz (802.11a/n HT-20/HT-40) |
| Bluetooth |
Bluetooth 4.2 for headsets and mobile sync |
| USB Ports |
1 USB 2.0 Type-A, 1 USB 2.0 Type-C (for headsets, media storage, expansion) |
| Headset Port |
1 RJ9, 1 EHS (Electronic Hook Switch) port for optional adapter |
Power
| PoE |
Built-in auto sensing IEEE 802.3af Power over Ethernet (Class 3) |
| Power Consumption |
13 W (maximum) |
| External Power |
Optional 48 VDC, 0.52 A, 25 W adapter (sold separately, required for Wi-Fi when not using PoE) |
Physical
| Dimensions |
7.0 in × 8.5 in × 2.0 in (17.8 cm × 21.6 cm × 5.1 cm) |
| Weight (with handset) |
1.28 kg (2.82 lbs) |
| Operating Temperature |
0 to 40°C (32 to 104°F) |
System
| Operating System |
Android 9 |
| Protocol Support |
Open SIP |
| Management |
Poly Lens, Poly Zero Touch Provisioning, PDMS-SP Cloud Management, Web UI |
| Security |
802.1X Authentication, SRTP media encryption, digest authentication, HTTPS secure provisioning, TLS |
| Compliance |
ADA Section 508 Subpart B 1194.23 |
Warranty & Support
| Warranty |
1 year manufacturer warranty |
| Wall Mount |
Optional CCX 500 wall mount kit (2200-49713-001) sold separately |
Specifications are sourced from the manufacturer product page and may be updated. Wi-Fi operation requires phone to be powered by optional power adapter when not powered by PoE. Most software-enabled features must be supported by the service provider platform.
