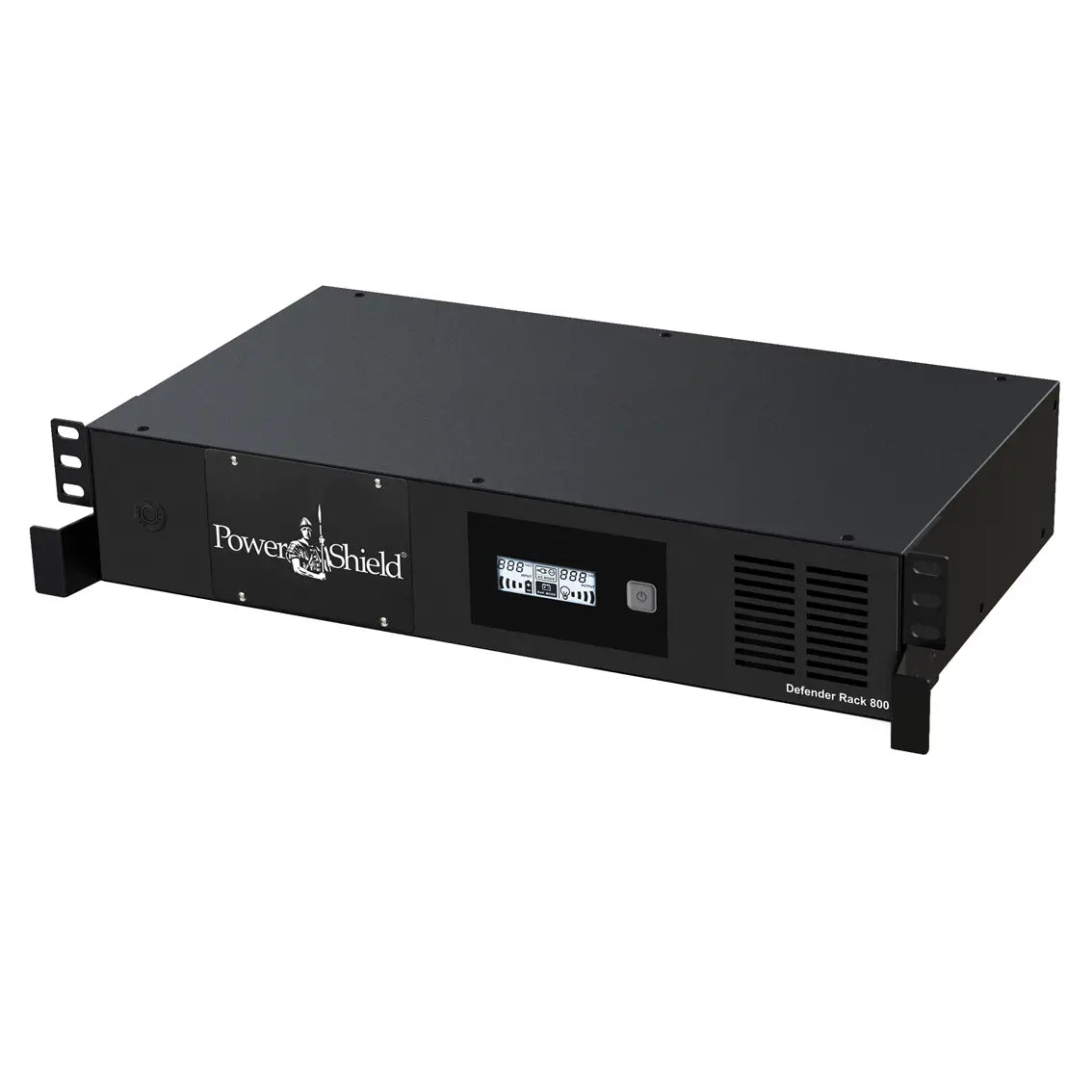

Powershield Defender 800VA Rackmount UPS with AVR for Shallow Racks
The Powershield Defender PSDR800 is a line-interactive 800VA/480W rackmount UPS designed specifically for shallow, wall-mounted communications cabinets. At just 230mm deep, this compact 2RU unit delivers reliable power protection with Automatic Voltage Regulation (AVR) to safeguard your valuable network equipment from blackouts, brownouts, and power line disturbances.
Automatic Voltage Regulation & Surge Protection
The Defender PSDR800 uses Automatic Voltage Regulation (AVR) to automatically buck and boost unstable input voltages, bringing them within 10% of nominal voltage range. This protects connected equipment from damaging voltage fluctuations without switching to battery power. The unit also incorporates best-in-class surge protection to defend against power spikes and transients.
Ideal for Shallow Rack Installations
With its 230mm shallow depth, the Defender PSDR800 is the perfect UPS solution for wall-mounted communications cabinets, network closets, and compact server installations where space is at a premium. The all-metal enclosure provides durability and EMI shielding, while the silent, fanless operation ensures noise-free performance in office environments.

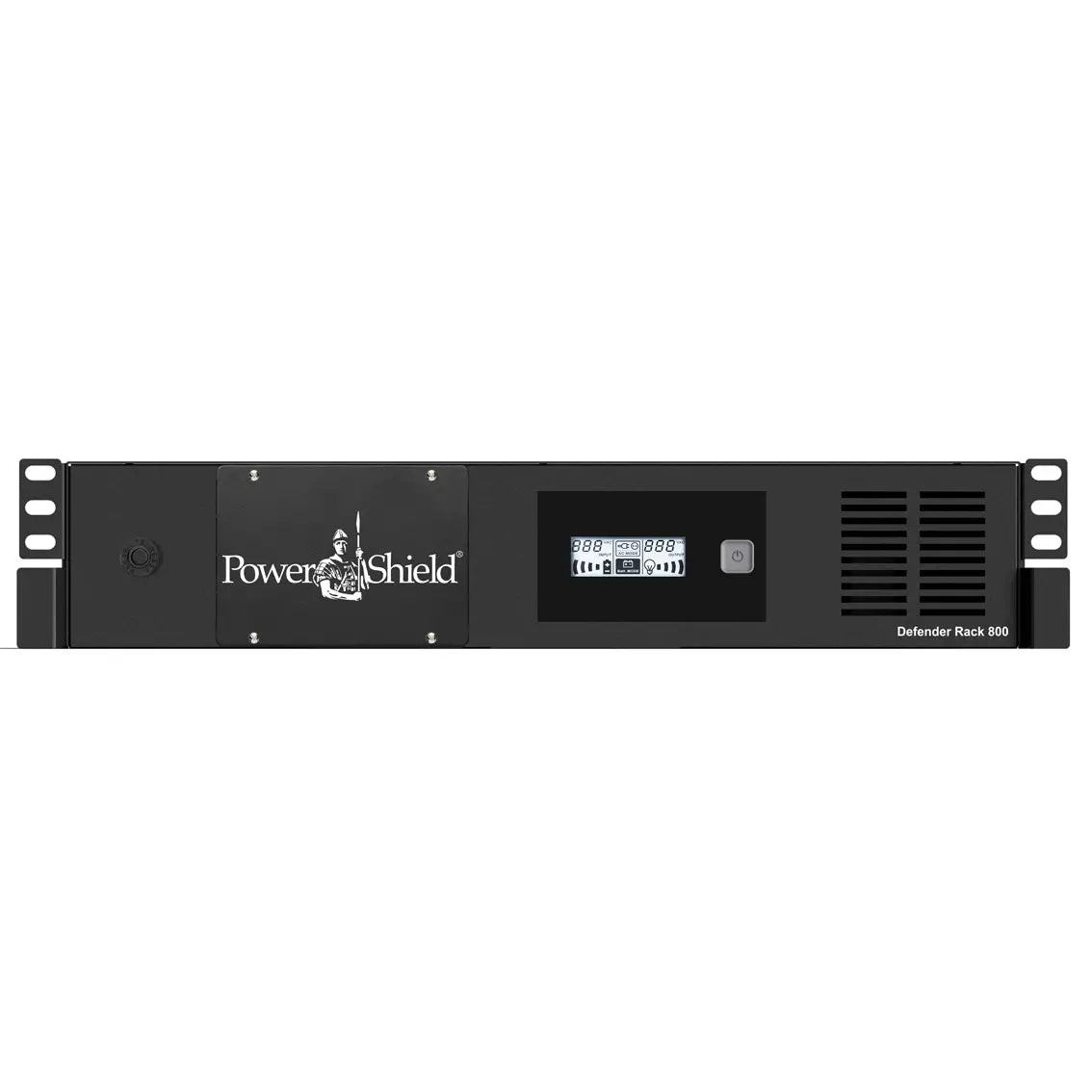

User-Friendly LCD Display
The front-panel LCD display provides real-time monitoring of input voltage, output voltage, battery capacity, and load level. Visual and audible alarms alert you to AC mode, battery mode, low battery, faults, and overload conditions, ensuring you're always aware of power status.
Key Features
-
Compact 230mm depth: Perfect for shallow, wall-mounted communications cabinets
-
User-replaceable batteries: 12V 9Ah battery with 6-hour recharge time to 90% capacity
-
Silent operation: Fanless design for noise-free performance
-
Intelligent SNMP slot: Optional network management card support
-
USB monitoring: Includes USB cable for NetGuard monitoring software
-
Cold start capability: Turn on equipment when mains power is off
-
All-metal enclosure: Durable construction with EMI shielding

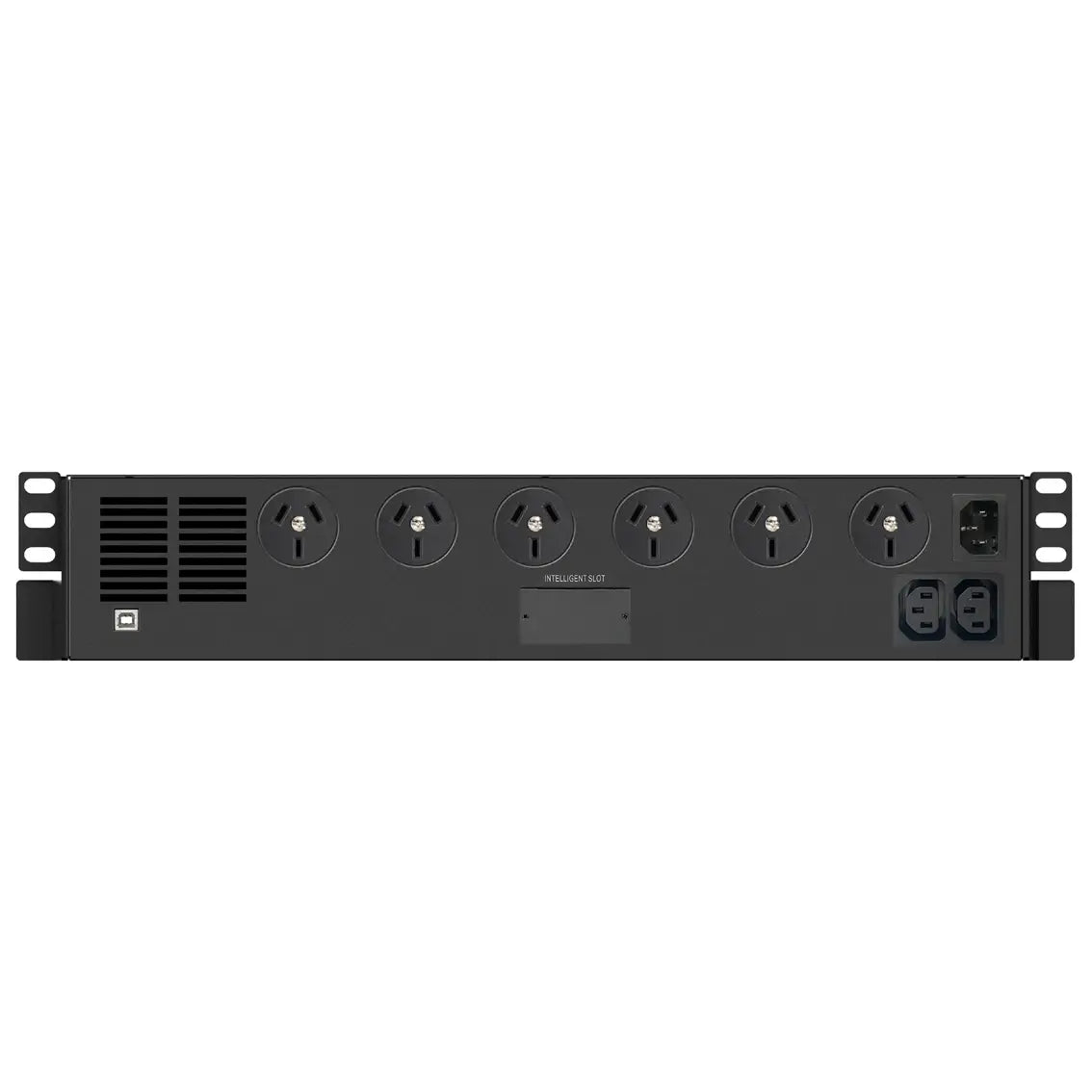

Multiple Outlets for Flexibility
-
6 x Australian AS/NZS 3112 sockets (4 suitable for plug packs)
- 2 x 10A IEC C13 sockets
- All outlets provide UPS battery backup and surge protection
Advanced Protection & Compliance
The PSDR800 provides comprehensive overload, discharge, and overcharge protection for both the UPS and connected equipment. The unit meets international safety standards including EN62040-1:2008 and IEC60950-1:2006, and EMC compliance to EN62040-2:2006.
What's in the Box
- Powershield Defender Rackmount 800 unit
- Rackmount ears
- USB communication cable
- User manual
Full Specifications
| Model |
PSDR800 |
| Capacity |
800VA / 480W |
| Topology |
Line Interactive |
| Waveform (Battery Mode) |
Simulated Sine Wave |
| Input Voltage (Nominal) |
240VAC |
| Input Voltage Range |
177-290VAC |
| Frequency Range |
50/60Hz ± 5Hz (auto sensing) |
| Output Voltage |
240VAC ± 10% |
| Frequency Range (Battery Mode) |
50Hz or 60Hz ± 1Hz |
| Transfer Time |
2-6ms typical, 10ms max |
| Australian Outlets |
6 x AS/NZS 3112 sockets (10A) |
| IEC Outlets |
2 x IEC C13 sockets (10A) |
| Battery Type & Number |
12V 9Ah (x1) |
| Typical Recharge Time |
6 hours to 90% capacity |
| Battery Protection |
Overload, discharge, and overcharge protection |
| Communication |
USB (HID), Intelligent SNMP slot |
| LCD Display |
Voltage in/out, load level, battery capacity |
| LCD Alarm |
AC Mode, Battery Mode, Low Battery, Fault, Overload |
| Audible Alarm |
Battery Mode, Low Battery, Fault, Overload |
| Noise Level |
<40dB (fanless) |
| Operating Environment |
0-40°C, 0-90% RH (non-condensing) |
| Safety Standards |
EN62040-1:2008, IEC60950-1:2006 |
| EMC Standards |
EN62040-2:2006 |
| Dimensions (W × D × H) |
438 × 230 × 86mm (2RU) |
| Weight |
7.7kg |
| Form Factor |
Rack mount / Tower convertible |
| Warranty |
2 years |
Specifications are sourced from the manufacturer product page and may be updated.
