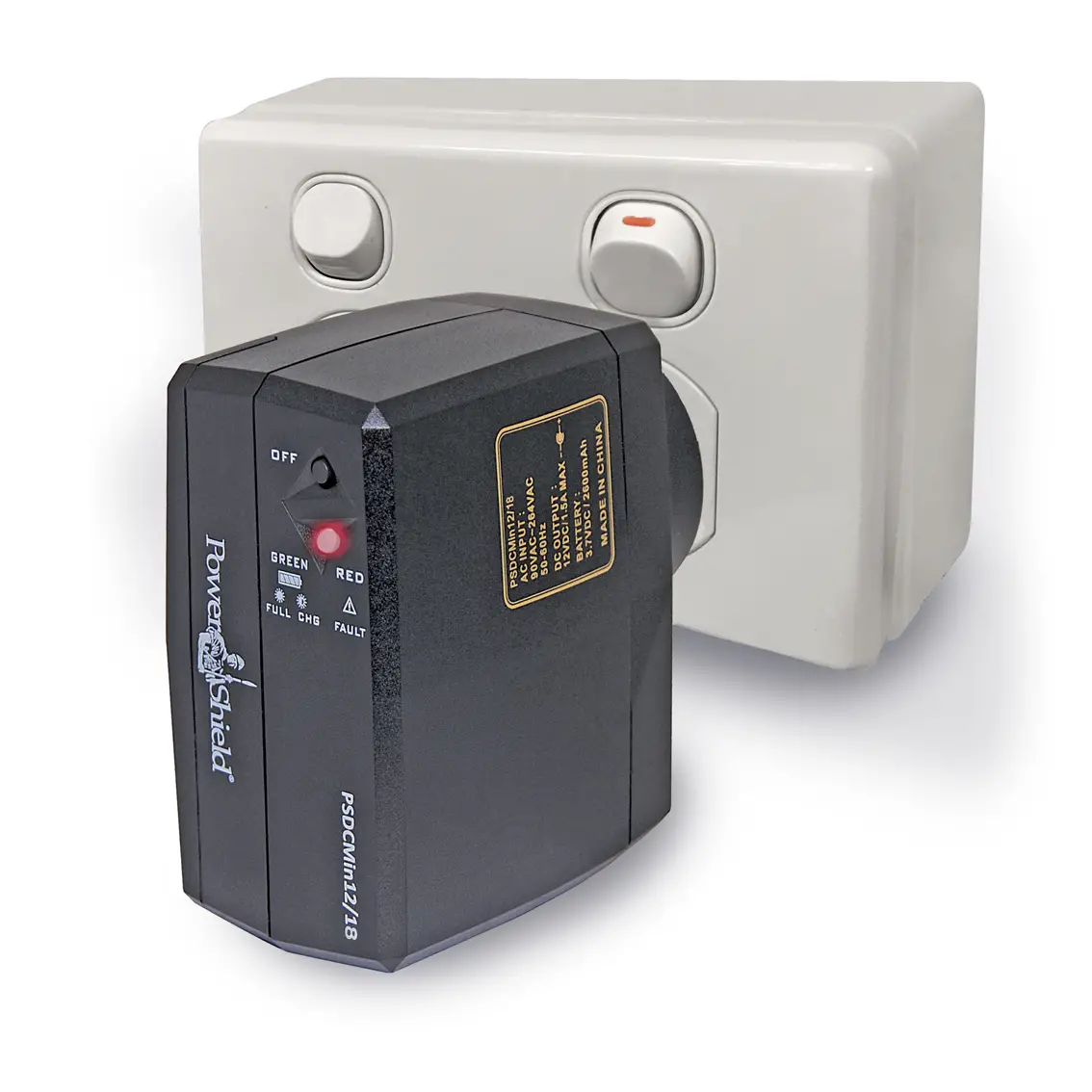

PowerShield PSDCMINI12/18 DC Mini 12V 18W UPS with Lithium-ion Battery
The PowerShield DC Mini is a compact plug-pack style uninterruptible power supply designed to provide emergency backup power to all kinds of DC powered equipment including routers, modems (including fibre optic ONT), VOIP phone systems, surveillance equipment, alarm systems and critical telecommunications devices. With a built-in 2600 mAh lithium-ion battery, the DC Mini can economically provide hours of operation during power failure, protecting your devices from data loss, corruption or damage.
Key Features
-
12V DC Output: Delivers 18W (1.5A) maximum power with ±5% voltage stability
-
Built-in Replaceable Li-ion Battery: 3.7V DC, 2600 mAh capacity for extended runtime
-
Auto Start: Automatically starts when plugged in for instant protection
-
Multi-colour LED Indicator: Easy status monitoring - green solid (full battery), green slow flash (charging), green quick flash (discharging), red solid (fault)
-
Embedded Microcontroller: Intelligent power management and monitoring
-
Manual Power Off Switch: Convenient manual control when needed
-
Comprehensive Protection: Overload, short-circuit, over-charge and over-discharge protection
-
Wide AC Input Range: 90-265 VAC, 50/60Hz with 125J surge protection at 4500A
-
Versatile Connectivity: Supplied with wide range of power connectors including NBN Molex connector
Extended Runtime Performance
The PowerShield DC Mini provides reliable backup power when you need it most. With typical runtime of 150 minutes for small routers and 120 minutes for large routers, you'll have plenty of time to safely shutdown equipment or wait out short power interruptions. The battery charges quickly, recovering to 90% capacity in just 3 hours.
Compact & Silent Design
Measuring just 78mm (D) × 42mm (W) × 74mm (H) and weighing only 280g, the DC Mini features a space-saving plug-pack design that fits discreetly near your equipment. With completely silent operation and no fans, it's ideal for home offices, small businesses, and anywhere quiet operation is essential.
What's in the Box
- PowerShield DC Mini UPS (PSDCMINI12/18)
- Assortment of DC power jack tip adaptors
- NBN Molex connector
- User manual
Full Specifications
AC Input
| Voltage Range |
90 VAC ~ 265 VAC |
| Frequency |
50Hz or 60Hz |
| Surge Protection |
125 J @ 4500 A |
DC Output
| Voltage |
12V DC ± 5% |
| Maximum Power |
18W (1.5A) |
Battery
| Battery Type |
Lithium-ion Battery |
| Voltage |
3.7V DC |
| Capacity |
2600 mAh |
| Typical Charging Time |
3 hours recover to 90% capacity |
| User Replaceable |
Yes |
Protection
| Battery Protection |
Deep discharge, over-charge and short circuit protection |
| Input/Output Protection |
Fuse for short circuit and overload protection |
Indicators
| Display Type |
Multi-colour LED |
| Full Battery |
Green - Solid |
| Battery Charging |
Green - Slow flashing |
| Battery Discharging |
Green - Quick flashing |
| Fault |
Red - Solid |
Physical Specifications
| Dimensions (D × W × H) |
78mm × 42mm × 74mm |
| Net Weight |
280g |
| Model Number |
PSDCMINI12/18 (PSDCMin 12/18) |
Warranty & Compliance
| Warranty Period |
2 Years |
| Design Origin |
Designed in Western Australia |
Specifications are sourced from the manufacturer product page and may be updated.
