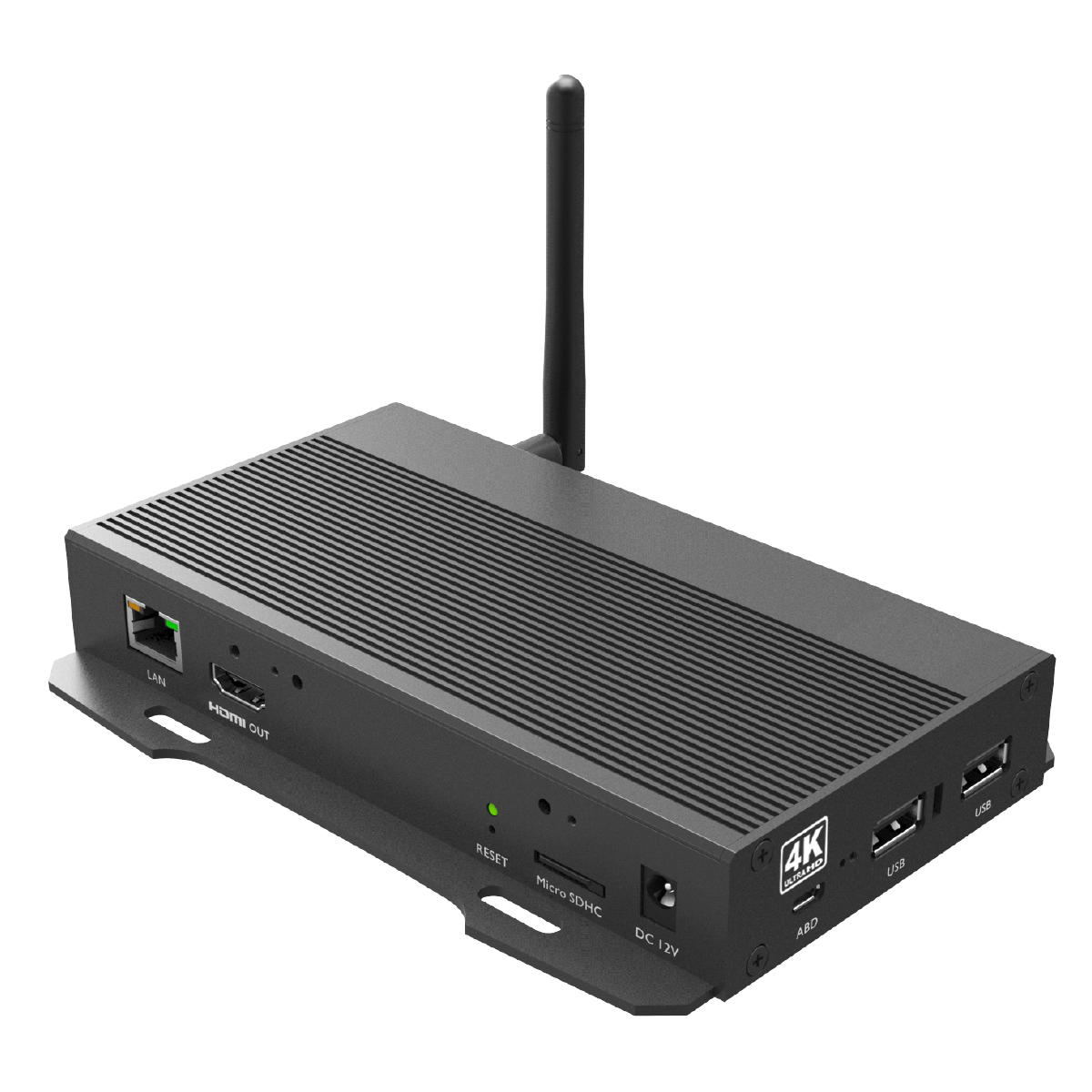

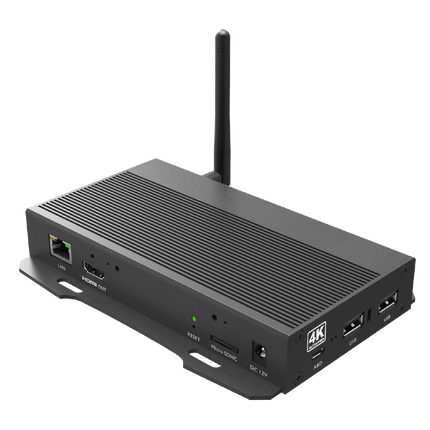

Qbic BXP-300 4K UHD Digital Signage Media Player
The Qbic BXP-300 is a rugged, solid-state 4K UHD digital signage media player designed to transform any HDMI display into a stunning high-resolution sign. With H.265 4K@60p decoding, Android 12, and a wide operating temperature range, it delivers reliable, plug-and-play signage for retail, hospitality, and outdoor environments.
Butter-Smooth 4K Decoding
The BXP-300's powerful video processor handles H.265 4K at 60fps and H.264 4K at 30fps, alongside HTML5 content. Fast-paced video, animations, and high-frame-rate signage all play back with stunning clarity and zero stutter.
-
Display Resolution: 4K UHD (3840 × 2160 @ 60fps)
-
Video Engine: H.265 4K@60p / H.264 4K@30p / HTML5
-
HDMI Output: 1 × HDMI 2.0 with HDCP support and CEC
Wide Temperature Range
Built for tough environments, the BXP-300 operates from -40°C to 70°C, making it ideal for outdoor signage, transport hubs, factory floors, and any installation where conditions can swing dramatically.
Beacon Inside
The integrated BLE beacon lets you push context-aware advertisements and notifications directly to nearby customers' devices. Perfect for proximity marketing in retail and hospitality settings.
Ultra-Rugged Aluminium Design
The anodised aluminium housing combined with commercial-grade components and a solid-state design delivers long-term reliability with no moving parts. An anti-theft lock slot and included cable retention kit make it ideal for fixed installations.
Comprehensive Connectivity
- 1 × HDMI 2.0 output (HDCP, CEC)
- 1 × Gigabit Ethernet (10/100/1000 BASE-T)
- Wi-Fi 802.11 b/g/n
- Bluetooth with BLE Beacon
- 2 × USB 2.0
- 1 × Micro USB for ADB
- 1 × 3.5 mm combo jack (stereo headphone out / mic in)
- 1 × S/PDIF digital audio output
- 1 × RS-232 control port
- 1 × Micro SDHC slot
Easy Installation
- VESA 10 × 10 cm wall mount compatible
- Anti-theft lock slot
- Cable retention kit included
- Compact 165 × 118.5 × 27 mm chassis
Full Specifications
Media
| Video Playback Engine |
H.265 4K@60p / H.264 4K@30p / HTML5 |
| Display Resolution |
4K (3840 × 2160 @ 60fps) |
| HDMI Output |
1 × HDMI 2.0 / supports HDCP |
| HDMI CEC |
Yes |
System
| Operating System |
Android 12 |
| Programming API |
HTML5, W3C SMIL |
| CPU |
ARM Quad-core / 1.8GHz |
| GPU |
Mali-T764 |
| Memory |
2GB |
| Storage |
32GB eMMC |
I/O Interface
| Ethernet |
10/100/1000 Gigabit BASE-T |
| WLAN |
802.11 b/g/n |
| Bluetooth |
Yes, BLE Beacon |
| USB |
2 × USB 2.0 |
| ADB |
1 × Micro USB for ADB |
| Analog Audio |
1 × 3.5mm stereo headphone output / Mic-in (combo jack) |
| Digital Audio |
1 × S/PDIF output |
| COM port |
1 × RS-232 control port |
| Storage Expansion |
1 × Micro SDHC slot |
| Reset Button |
Yes |
| Power Status LED |
Yes |
Mechanical & Environment
| Dimensions (W × D × H) |
165 × 118.5 × 27 mm (6.49" × 4.66" × 1.06") |
| Mounting |
Easy wall mount / VESA mount 10 × 10 cm |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Storage Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Housing |
Durable Aluminium |
| Anti-theft Lock Compatible |
Yes |
| Cable Retention Kit |
Included |
Power & Regulatory
| Power Adapter |
DC 12V, 1.5A |
| Regulatory |
CE / FCC / RoHS / BSMI / VCCI / CB |
Specifications are sourced from the official manufacturer product page and may be updated.
