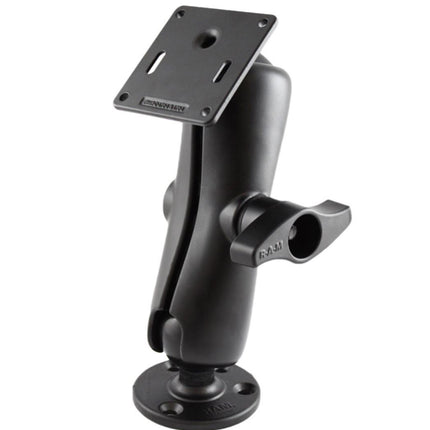

RAM Mount Double Ball 75x75mm VESA Plate Short Arm C Size Mount
The RAM-102U-B-2461 is a versatile double ball mounting system featuring a short double socket arm with two 3.625" square VESA plates (75mm × 75mm hole pattern). Engineered with RAM's patented ball and socket technology, this mount delivers near-infinite adjustability for perfect viewing angles with a single knob adjustment. Constructed from marine-grade aluminum for durability in demanding environments, this C size mount supports devices up to 4 lbs in standard use.
Key Features
-
Double Ball & Socket System: C Size 1.5" rubber balls provide near-infinite adjustability at both ends of the arm for optimal positioning
-
75mm × 75mm VESA Compatibility: Industry-standard mounting pattern fits monitors, small displays, and VESA-compatible devices
-
Single Knob Adjustment: Adjust your mount to the perfect viewing angle with just one knob - no tools required
-
Marine-Grade Construction: Powder-coated aluminum construction ensures reliability in harsh environments
-
Modular Design: Compatible with RAM's extensive ecosystem of interchangeable mounting components
-
Compact Short Arm: 2.5" socket-to-socket length ideal for space-constrained installations
Specifications
-
Weight Capacity: 4 lbs (standard use), 3 lbs (heavy-duty use)
-
Ball Size: C Size 1.5" diameter rubber balls
-
Socket-to-Socket Length: 2.5"
-
Overall Height: 5.225"
-
VESA Plate Size: 3.625" × 3.625" (two plates included)
-
Hole Pattern: 75mm × 75mm VESA
-
Ball Position: 0.88" from the center of one edge
Applications
Perfect for mounting small monitors, tablets with VESA adapters, GPS devices, and other VESA-compatible equipment in vehicles, boats, industrial settings, and workstations. The short arm design is ideal for dashboard mounting, desktop installations, and any application where space is at a premium.
Installation & Adjustability
The patented rubber ball and socket system incorporates non-slip features plus shock and vibration dampening. The dual adjustment points at both socket ends allow for precise positioning, while the single-knob tightening system makes on-the-fly adjustments quick and easy without requiring tools.
What's in the Box
- RAM 75mm × 75mm VESA 3.625" Plate with 1.5" Ball - RAM-2461U (Qty: 2)
- RAM Short Length Double Socket Arm For C Size 1.5" Balls - RAM-201U-B
- Hardware and mounting instructions
Full Specifications
| Model Number |
RAM-102U-B-2461 |
| Ball/Socket Size |
C Size (1.5" diameter) |
| Arm Length |
Short (2.5" socket-to-socket) |
| Overall Height |
5.225" |
| VESA Plate Size |
3.625" × 3.625" |
| Hole Pattern |
75mm × 75mm VESA |
| Quantity of Plates |
Two (2) VESA plates included |
| Weight Capacity (Standard) |
4 lbs |
| Weight Capacity (Heavy-Duty) |
3 lbs |
| Material |
Powder-coated marine-grade aluminum |
| Ball Material |
Rubber with non-slip dampening |
| Weight |
1.27 lbs (0.58 kg) |
| Packaging |
Poly bag |
| UPC |
793442907616 |
| Country of Manufacture |
USA |
Specifications are sourced from the manufacturer product page and may be updated.
