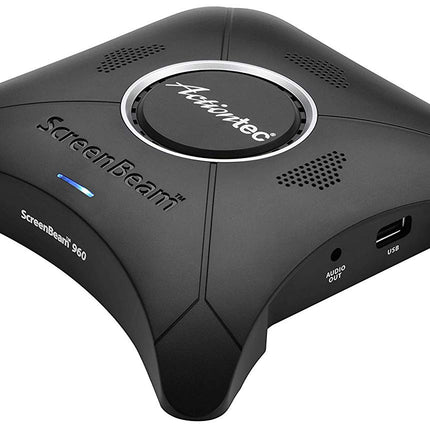

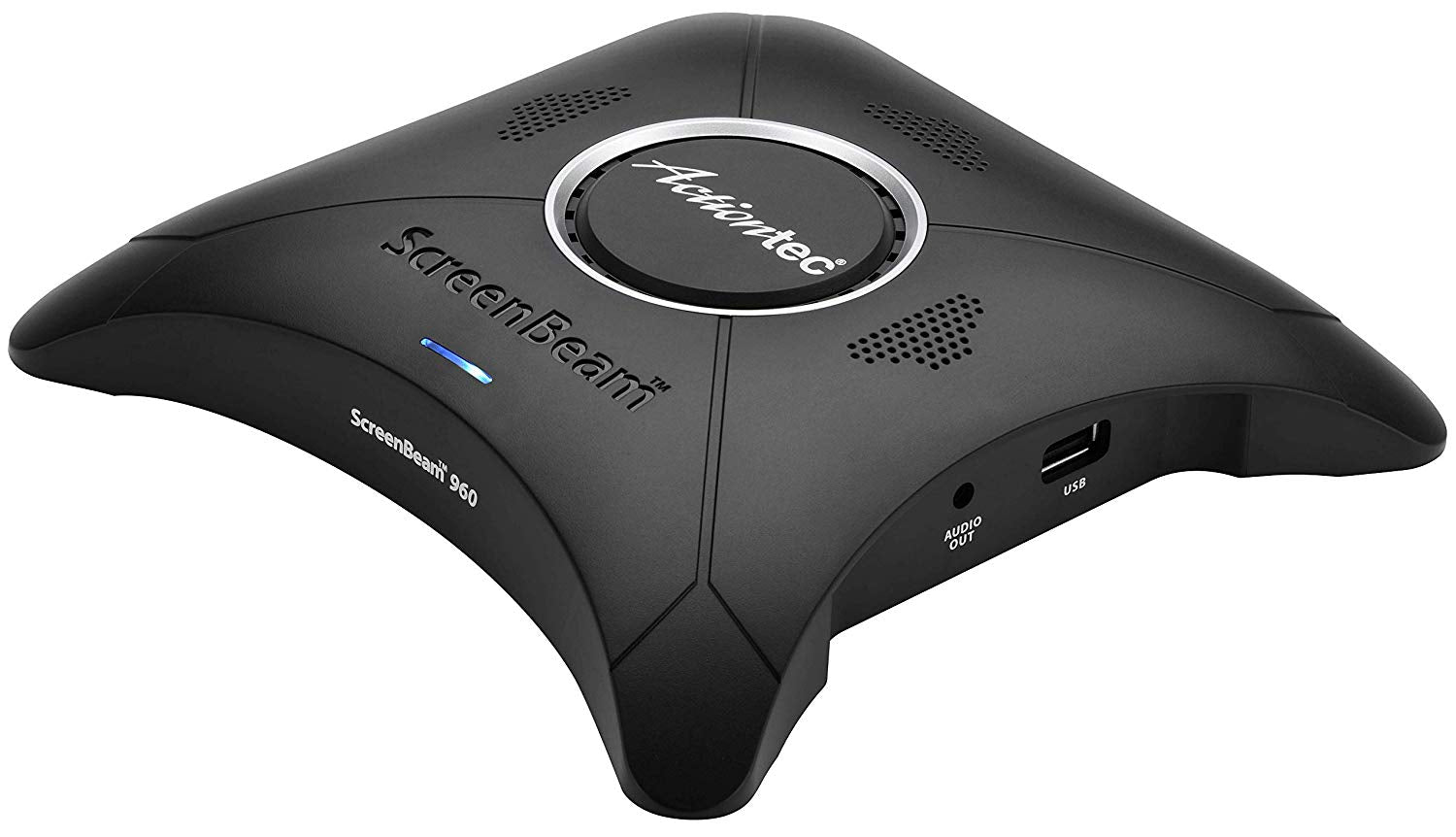

ScreenBeam 960 Full HD Wireless Display Receiver with Central Management System
The ScreenBeam 960 wireless display receiver enables seamless, app-free screen mirroring from Windows, Android, and Apple devices to any room display. Designed for small businesses, conference rooms, and education environments, the 960 makes wireless collaboration effortless with support for Miracast, AirPlay, and network infrastructure connectivity. Simply connect your laptop, tablet, or smartphone with a single click or swipe - no apps, dongles, or cables required. With Full HD 1080p resolution and included Central Management System (CMS) software, IT departments can remotely deploy, manage, and secure receivers at scale.
Key Features
-
Universal wireless screen sharing: Native Miracast and AirPlay support for Windows, macOS, iOS, and Android devices without downloading apps
-
Extended desktop mode: Maintain device use for other tasks while presenting, ensuring content privacy and multitasking
-
Interactive touch display support: Windows Ink compatibility allows annotations on touch displays to be instantly captured and saved to the presenter's device
-
Enterprise-grade Central Management System: Free perpetual CMS license included for remote configuration, firmware updates, policy deployment, and monitoring across all receivers
-
Flexible connectivity options: Miracast P2P, local Wi-Fi mode, and network infrastructure (LAN) connectivity for diverse deployment needs
-
Full HD 1080p resolution: Crisp, clear video up to 1080p30 with H.264 compression and 5.1 audio support
Perfect for Modern Collaboration
Whether you're running a business meeting, classroom presentation, or medical consultation, the ScreenBeam 960 eliminates the frustration of cable hunting and seating constraints. Users can present from anywhere in the room, sharing videos, images, slides, and documents wirelessly. The receiver supports both screen mirroring and extended desktop modes, giving presenters flexibility and privacy. With USB HID support, interactive projectors and touch displays become powerful collaboration tools for brainstorming and annotation.
Enterprise IT Management Made Simple
The ScreenBeam Central Management System (CMS) Enterprise software is included with every receiver, providing a free perpetual license for the life of the product. IT administrators can easily deploy, manage, remotely configure, group, customize, apply security policies, and push firmware updates to all ScreenBeam receivers within the network. The receiver can also run in stand-alone unmanaged mode for simple plug-and-play installations. Local Management Interface (LMI) allows quick setup and configuration via web browser for device renaming, display port management, and PIN password changes.
Connectivity & Compatibility
The ScreenBeam 960 offers comprehensive connectivity for any room setup:
-
HDMI output: Connect to modern displays, projectors, and HDTVs with full video and audio
-
VGA output: Legacy display support with VGA video output and VGA bypass input
-
3.5mm audio output: High-quality analog audio to room speakers (available for both HDMI and VGA)
-
USB 2.0 Type-A: USB HID touch support for interactive displays and USB-over-IP (UoIP) control
-
Gigabit Ethernet: 10/100/1000 RJ-45 LAN for network infrastructure connectivity and CMS management
-
Dual-band Wi-Fi: 802.11a/b/g/n/ac for Miracast wireless display and local Wi-Fi mode
Technical Highlights
-
Resolution: Up to Full HD 1080p30
-
Video compression: H.264
-
Audio: LPCM 2.0, 5.1 audio support
-
Content protection: HDCP 2.x compliant
-
Wireless: Miracast (Wi-Fi Direct P2P), 802.11a/b/g/n/ac dual-band
-
Power consumption: Less than 5W (5VDC, 2A input)
-
Operating temperature: 0°C to 40°C (32°F to 104°F)
What's in the Box
- ScreenBeam 960 wireless display receiver
- 5V DC power adapter
- HDMI cable
- Quick start guide
- ScreenBeam Central Management System (CMS) software (download)
Full Specifications
Video & Audio
| Maximum Resolution |
Full HD 1080p30 (1920 × 1080 at 30fps) |
| Video Compression |
H.264 |
| Audio Format |
LPCM 2.0, 5.1 audio support |
| Content Protection |
HDCP 2.x |
Wireless Connectivity
| Wireless Standards |
802.11a/b/g/n/ac dual-band |
| Miracast Support |
Wi-Fi Direct P2P, Miracast over Infrastructure |
| AirPlay Support |
Yes (iOS and macOS native) |
| Authentication |
WPA-PSK (TKIP), WPA2-PSK (AES) |
| Wi-Fi Protected Setup |
WPS supported |
I/O Interfaces
| HDMI Output |
1 × HDMI (video and audio) |
| VGA Output |
1 × VGA D-Sub (video only) |
| VGA Input |
1 × VGA D-Sub (bypass mode) |
| Audio Output |
1 × 3.5mm stereo analog output |
| USB |
1 × USB 2.0 Type-A (HID touch, UoIP, provisioning) |
| Ethernet |
1 × 10/100/1000 RJ-45 Gigabit LAN |
| Power Input |
DC power jack (5VDC, 2A) |
Power & Environment
| Power Input |
5VDC, 2A |
| Power Consumption |
Less than 5W |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
0°C to 70°C (32°F to 158°F) |
| Operating Humidity |
10% to 85%, non-condensing |
| Storage Humidity |
5% to 90%, non-condensing |
Physical Specifications
| Dimensions (W × D × H) |
168 × 168 × 34.5 mm (6.61 × 6.61 × 1.36 inches) |
| Weight |
Approximately 0.9 kg (2 lbs shipping weight) |
| Colour |
Black |
Management & Security
| Central Management System |
ScreenBeam CMS Enterprise (free perpetual license included) |
| Local Management Interface |
Web-based LMI via browser |
| Remote Management |
CMS for deployment, configuration, firmware updates, policy enforcement |
| Standalone Mode |
Plug-and-play unmanaged mode supported |
| PIN Security |
8-digit PIN pairing for secure connections |
Device Compatibility
| Windows |
Windows 7, 10, 11 (Miracast-enabled devices from 2020 or newer recommended) |
| macOS |
macOS X 10.0 or later (AirPlay) |
| iOS |
iOS 11 or later (AirPlay) |
| Android |
Android 4.2 or later (Miracast-enabled) |
Certifications
| North America |
FCC, IC, UL |
| Europe |
CE, RED, RoHS |
| Asia Pacific |
NCC, WPC, MIC/TELEC, SRRC, RCM |
| Latin America |
COC, NOM-NYCE, MTC, CRC, SUBTEL |
What's in the Box
| ScreenBeam 960 Receiver |
1 |
| 5V DC Power Adapter |
1 |
| HDMI Cable |
1 |
| Quick Start Guide |
1 |
| CMS Software |
Download (free perpetual license) |
Warranty
| Manufacturer Warranty |
1 Year Limited Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
