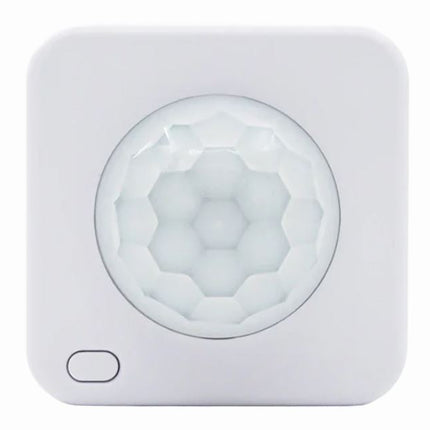

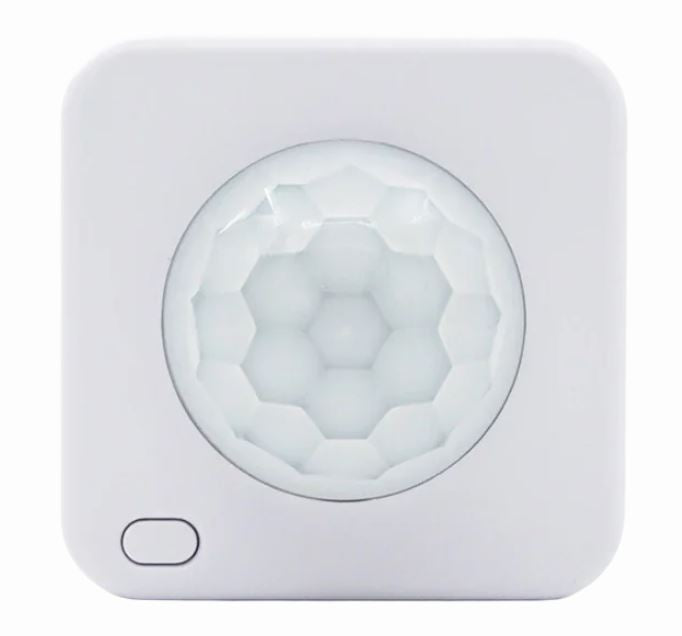

Shelly BLU MOTION Bluetooth PIR Motion Sensor with Lux Meter
The Shelly BLU MOTION is a smart Bluetooth motion detection sensor featuring an integrated lux meter for light measurement. Detecting motion in less than 100 milliseconds, this ultra-responsive sensor delivers instant alerts to keep you informed of activity in your home, office, or warehouse in real time. Perfect for home automation, security monitoring, and smart lighting control, the Shelly BLU MOTION works seamlessly with popular platforms including Home Assistant, the Shelly Smart Control app, and the BTHome protocol.
Key Features
-
Lightning-Fast Motion Detection: Detects motion in less than 100 milliseconds, faster than the blink of an eye, triggering instant automations
-
Built-In Lux Sensor: Measure ambient light levels to create smart automations based on room brightness
-
Up to 5 Years Battery Life: Powered by a CR2477 3V battery (included) with remarkable energy efficiency for hassle-free operation
-
9-Metre Detection Range: Catch motion up to 9 metres away with a 120-degree detection angle
-
Adjustable Sensitivity: Customize the sensor's response to distinguish between pet movements and potential threats
-
No Hub Required: Easy control through the Shelly Smart Control app, as well as most platforms and protocols, including BTHome
Instant Home Security & Automation
The Shelly BLU MOTION provides real-time security alerts for your living space. Set up custom alarm zones, defining specific regions where motion detection is critical, enabling the sensor to instantly alert you on your phone the moment any unauthorized movement is detected. Ideal for monitoring entry points, hallways, garages, and restricted areas, this smart sensor integrates seamlessly into your existing home automation ecosystem.
Use the lux meter to create intelligent lighting automations that respond to both motion and natural light levels. Automatically turn lights on when you enter a dark room, or trigger notifications when motion is detected in low-light conditions.
Advanced Bluetooth Connectivity
The Shelly BLU MOTION uses Bluetooth BLE 4.2 with the BTHome protocol and AES-CCM encryption for secure, reliable communication. Operational range is up to 30 metres outdoors and up to 10 metres indoors (depending on local conditions). Connect it to any Shelly Plus, Pro, or Gen3 device to use as a gateway, or pair it with the Shelly BLU Gateway for extended range and integration with your broader smart home network.
The sensor supports two operating modes: Regular mode, which broadcasts status changes as they happen, and Beacon mode, which transmits updates every 30 seconds for continuous monitoring.
Long-Lasting & Reliable Performance
Its low-power CPU ensures remarkable battery efficiency, with regular use extending battery life up to 5 years. The compact, lightweight design (just 26 grams) includes an adhesive wall sticker for easy, tool-free installation anywhere you need motion detection. Operating reliably in temperatures from -20°C to 40°C, this sensor is suitable for Australian homes, offices, warehouses, and outdoor covered areas.
What's in the Box
- 1 × Shelly BLU MOTION sensor
- 1 × CR2477 3V battery (pre-installed)
- 1 × Adhesive wall sticker
- User guide
Full Specifications
Physical
| Model |
SBMO-003Z |
| Dimensions (H × W × D) |
32 × 42 × 27 mm (±0.5 mm) |
| Weight |
26 g (±1 g) with battery |
| Shell Material |
Plastic |
| Colour |
White |
Sensors & Detection
| Motion Sensor Type |
PIR (Passive Infrared) |
| Detection Range |
Up to 9 metres |
| Detection Angle |
120 degrees |
| Detection Speed |
Less than 100 milliseconds |
| Lux Meter |
Yes (ambient light measurement) |
| Adjustable Sensitivity |
Yes |
Connectivity & Protocol
| Radio Protocol |
Bluetooth BLE 4.2 |
| Supported Protocol |
BTHome |
| RF Band |
2400 – 2483.5 MHz |
| Max. RF Power |
4 dBm |
| Encryption |
AES encryption (CCM mode) |
| Bluetooth Range (Indoor) |
Up to 10 metres |
| Bluetooth Range (Outdoor) |
Up to 30 metres |
| Beacon Mode |
Yes |
| Gateway Required |
Yes (Shelly Plus, Pro, Gen3 devices, or BLU Gateway) |
Power & Battery
| Power Supply |
1 × CR2477 3V battery (included) |
| Battery Life |
Up to 5 years (regular use) |
Environmental
| Operating Temperature |
-20°C to 40°C (-5°F to 105°F) |
| Humidity Range |
30% to 70% RH |
Compatibility
| Compatible Platforms |
Shelly Smart Control app, Home Assistant, BTHome protocol |
| Compatible Gateways |
Shelly BLU Gateway, Shelly Plus devices, Shelly Pro devices, Shelly Gen3 devices (excluding sensors) |
Specifications are sourced from the manufacturer product page and may be updated.
