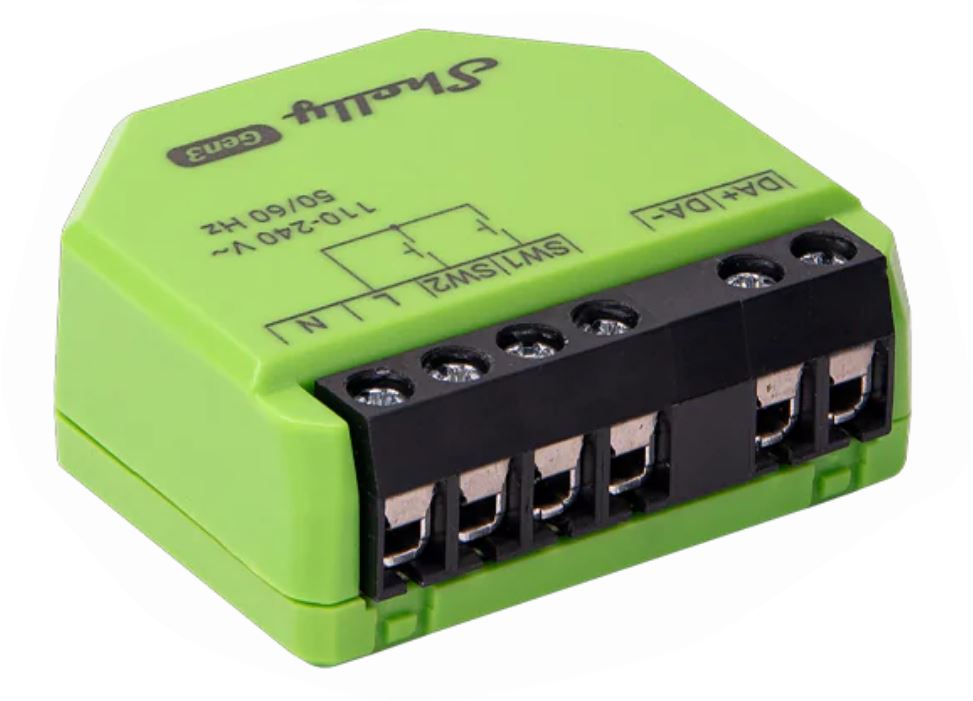

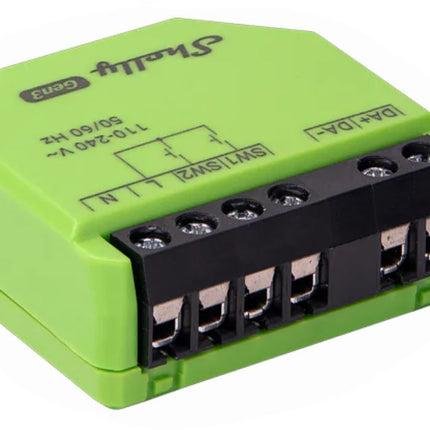

Shelly DALI Dimmer Gen3 Smart WiFi DALI Gateway Controller for LED Lighting
The Shelly DALI Dimmer Gen3 is a smart DALI gateway controller that seamlessly integrates high-end DALI lighting systems into your Shelly smart home ecosystem. With WiFi and Bluetooth connectivity, this compact controller allows you to remotely control, monitor, and automate up to 5 DALI luminaires from anywhere with internet access. Designed for professional lighting control in homes, offices, and commercial spaces, the DALI Dimmer Gen3 offers precise brightness control, advanced automation features, and compatibility with leading smart home platforms including Home Assistant, MQTT, KNX, and voice assistants.
Key Features
-
DALI Master Controller: Acts as a single-master application controller for DALI Part 207 LED control gear, managing all connected devices as a single group with broadcast messages
-
Controls Up to 5 DALI Devices: Integrated bus power supply (10 mA) allows control of up to 5 DALI luminaires without additional power supply modules
-
Dual Connectivity: WiFi 802.11 b/g/n and Bluetooth 4.2, with BLE gateway and WiFi range extender functionality
-
No Hub Required: Works standalone or via cloud-based control through the Shelly Smart Control app
-
Advanced Automation: Supports scripting, up to 20 schedules, webhooks (20 hooks × 5 URLs), night mode, and scene activation
-
Wide Compatibility: Integrates with Home Assistant, KNX systems, MQTT, voice assistants, and other smart home platforms
-
Flexible Input Control: Switch/button input mode with one/dual button dimming control for any wall switch configuration
-
Compact Design: Small form factor (42 × 37 × 17 mm) for easy in-wall or suspended ceiling mounting
-
3-Year Warranty: Gen3 devices come with extended warranty coverage
Professional DALI Lighting Control
The Shelly DALI Dimmer Gen3 serves as a bridge between your existing Shelly ecosystem and professional DALI lighting networks. It provides predictable and repeatable brightness control with additional functions for easy maintenance and diagnostics. The device supports DALI control gear (DT6) for light intensity control, though colour temperature control is not supported. With its embedded web interface, you can monitor and adjust settings locally without needing cloud connectivity, making it ideal for professional installations.
Smart Home Integration
Integrate your DALI lighting into comprehensive smart home automations with support for multiple platforms. The DALI Dimmer Gen3 is compatible with Shelly Plus Add-ons, allowing connection with sensor interfaces to create advanced lighting scenes triggered by motion, temperature, or humidity. The device can also function as a Bluetooth gateway for Shelly BLU sensors and a WiFi range extender, enhancing your entire smart home network. With scripting support and webhooks, you can create custom automations tailored to your specific needs.
Easy Installation and Setup
Despite its professional capabilities, the Shelly DALI Dimmer Gen3 is straightforward to install. The compact unit fits easily into in-wall boxes or suspended ceilings, with screw terminals supporting conductor cross sections from 0.5 to 1.5 mm² (20 to 16 AWG). The device operates on 110-240 VAC ±10% 50/60Hz power supply and consumes less than 2 W. Simply connect to your DALI bus and configure via the Shelly Smart Control app or embedded web interface for immediate control of your DALI lighting network.
Remote Access and Control
Control your DALI lighting from anywhere with the Shelly Smart Control mobile app (available for iOS, Android, and Huawei AppGallery). The device provides remote monitoring and control from any location with internet connectivity, making it perfect for commercial buildings, rental properties, or holiday homes. Set schedules to automate lighting based on time of day, use night mode to set specific brightness levels during nighttime hours, and adjust min/max brightness ranges for more precise dimming control. The button fade rate and transition duration settings allow you to customise how quickly brightness changes occur.
What's in the Box
- 1 × Shelly DALI Dimmer Gen3 (S3DM-0A1WW)
- 1 × User Guide
Full Specifications
Physical
| Dimensions (H × W × D) |
42 × 37 × 17 mm / 1.65 × 1.46 × 0.66 in |
| Weight |
18 g / 0.63 oz |
| Shell Material |
Plastic |
| Shell Colour |
Green |
| Mounting |
In-wall, suspended ceilings |
| Screw Terminals Max Torque |
0.4 Nm / 3.5 lbin |
| Conductor Cross Section |
0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules) |
| Conductor Stripped Length |
5 to 6 mm / 0.20 to 0.24 in |
Electrical
| Power Supply |
110-240 VAC ±10% 50/60Hz |
| Power Consumption |
< 2 W |
| Bus Power Supply |
Guaranteed 10 mA (up to 5 DALI control devices), Short circuit current < 35 mA |
| Bus Voltage |
16 V nominal |
DALI Features
| DALI Standard |
Part 207 LED control gear |
| Control Type |
Single-master application controller |
| Control Method |
Broadcast messages (all devices as single group) |
| Maximum DALI Bus Units |
Up to 5 non-powered bus units |
| Light Intensity Control |
Yes (DT6) |
| Colour Temperature Control |
Not supported |
| Internal Temperature Sensor |
Yes |
Wireless Connectivity
| WiFi |
802.11 b/g/n (2.4 GHz only) |
| WiFi Range |
Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions) |
| Bluetooth |
Bluetooth 4.2 |
| Bluetooth Range |
Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
| RF Power |
< 4 dBm |
| BLE Gateway |
Yes |
| WiFi Range Extender |
Yes |
Smart Features
| Control Methods |
Shelly Smart Control app, web interface, voice assistants, home automation platforms |
| Schedules |
Up to 20 |
| Webhooks |
20 hooks × 5 URLs |
| Scripting |
Yes |
| Night Mode |
Yes |
| Min/Max Brightness Control |
Yes |
| Button Fade Rate |
Adjustable |
| Transition Duration |
Adjustable |
| Shelly Plus Add-on Compatible |
Yes |
Platform Compatibility
| Shelly Smart Control App |
iOS, Android, Huawei AppGallery |
| Home Assistant |
Yes (official integration) |
| KNX Integration |
Yes |
| MQTT |
Yes |
| Voice Assistants |
Compatible |
| No Hub Required |
Yes |
Environmental
| Ambient Working Temperature |
-20 °C to 40 °C / -5 °F to 105 °F |
| Humidity |
30% to 70% RH |
| Maximum Altitude |
2000 m / 6562 ft |
| Indoor Use Only |
Yes |
Device Information
| Device Name |
Shelly DALI Dimmer Gen3 |
| Model Number |
S3DM-0A1WW |
| Device SSID |
ShellyDDimmerG3-XXXXXXXXXXXX |
| BLE Model ID |
0x1071 |
| Warranty |
3 years (Gen3 devices) |
Specifications are sourced from the manufacturer product page and may be updated.
