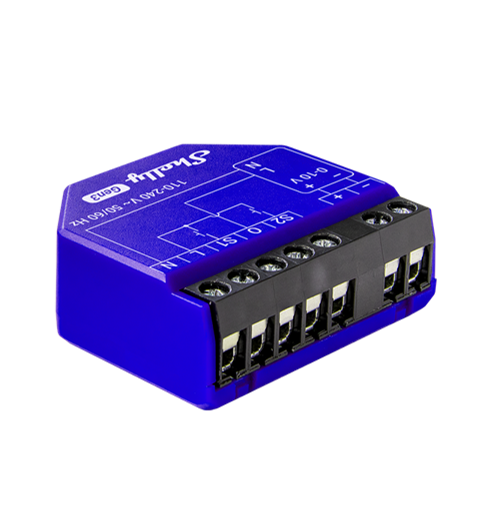

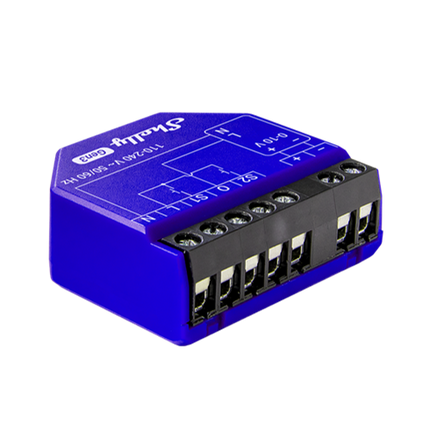

Shelly DIMMER 0/1-10V GEN3 Smart Lighting Controller with Power Monitoring
Take complete control of your lighting with the Shelly DIMMER 0/1-10V PM GEN3, a smart dimming controller designed for 0-10V and 1-10V compatible LED drivers, lights, motors, and valves. This compact, retrofit-ready device integrates seamlessly into your existing electrical system, allowing you to control dimming drivers remotely via smartphone, tablet, PC, or your favourite home automation platform. With built-in power monitoring, you can track real-time energy consumption and optimise your lighting for maximum efficiency and cost savings.
Why You'll Love It
-
0-10V and 1-10V driver support: Compatible with a wide range of dimmable LED drivers, motors, valves, and lighting control gear for flexible installation options.
-
Built-in power metering: Monitors voltage (V), current (A), and power consumption (W) in real time to help you identify energy-efficient setups and reduce utility costs.
-
No hub required: Connects directly to your Wi-Fi network and works standalone or via cloud-based home automation services.
-
Works with your existing switches: Retrofit into your current lighting system and continue using single or dual button switches for manual dimming control.
-
Smart scheduling and Night Mode: Sync lights with sunrise and sunset times, create custom schedules, and automatically lower brightness during nighttime hours.
-
Voice assistant and smart home integration: Compatible with Alexa, Google Home, Home Assistant, SmartThings, and other platforms for seamless automation and voice control.
Advanced Automation and Control
The Shelly DIMMER 0/1-10V PM GEN3 is powered by the Shelly ESP32 C3 chip with 8 MB flash memory, enabling advanced features like scripting, weekly schedules, webhooks, and virtual components. Create custom automation scenarios to dim lights up or down with a single or double button press, set specific brightness levels for different times of day, and integrate with third-party systems for expanded control. The device also functions as a Bluetooth gateway and Wi-Fi range extender, facilitating communication between BLE and Wi-Fi-enabled devices and extending your network coverage.
Compact, Retrofit Design
Measuring just 38.5 × 43.5 × 17 mm and weighing only 28.5 grams, the Shelly DIMMER 0/1-10V PM GEN3 fits discreetly behind switches or inside junction boxes. Its current-sourcing control type supports both 0-10V and 1-10V modes, automatically adapting to the LED driver connected to it. With a wide 110-240 V~ 50/60 Hz power supply and ultra-low 1.5 W power consumption, it's ideal for energy-conscious smart home and commercial installations.
Seamless Integration and Expandability
The dimmer is Shelly Plus Add-On compatible, allowing you to connect external sensors to measure temperature, humidity, and light levels. Set customizable thresholds and offsets to trigger automated actions based on environmental conditions. The device supports up to 20 schedules and 20 webhooks, providing powerful automation capabilities for homes, offices, classrooms, and commercial buildings.
Safety and Reliability
Designed with overcurrent, overvoltage, and overpower protection, the Shelly DIMMER 0/1-10V PM GEN3 ensures safe operation in demanding environments. It operates reliably in ambient temperatures from -20°C to 40°C and humidity levels between 30% to 70% RH. Backed by a 3-year manufacturer warranty and Shelly's commitment to free firmware updates, this smart dimmer is built to last.
What's in the Box
- Shelly DIMMER 0/1-10V PM GEN3 smart dimming controller
- User and safety guide (multilingual)
Full Specifications
Electrical
| Power supply |
110-240 V~ 50/60 Hz |
| Power consumption |
< 1.5 W |
| Neutral required |
No |
| 0-10V/1-10V control type |
Current sourcing |
| External protection |
16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Max. switching voltage |
240 V~ |
| Max. switching current |
13 A |
Wireless Connectivity
| Wi-Fi protocol |
802.11 b/g/n |
| Wi-Fi frequency |
2.4 GHz |
| Wi-Fi range |
Up to 50 m / 160 ft indoors; up to 150 m / 490 ft outdoors (depends on local conditions) |
| Bluetooth |
Yes (BLE 5.0) |
| Bluetooth range |
Up to 10 m / 33 ft indoors; up to 30 m / 100 ft outdoors (depends on local conditions) |
Microcontroller
| CPU |
Shelly ESP32 C3 |
| Clock frequency |
40 MHz |
| Flash memory |
8 MB |
Firmware Capabilities
| Schedules |
20 |
| Webhooks (URL actions) |
20 hooks, up to 5 URLs per hook |
| Scripting |
Yes |
| MQTT support |
Yes |
Environmental
| Ambient working temperature |
-20°C to 40°C / -5°F to 105°F |
| Humidity |
30% to 70% RH |
Physical
| Dimensions (H × W × D) |
38.5 × 43.5 × 17 mm / 1.52 × 1.71 × 0.67 in |
| Weight |
28.5 g / 0.99 oz |
| Conductor cross section |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Screw terminals max torque |
0.4 Nm / 3.5 lbin |
Warranty
| Warranty period |
3 years (Shelly Gen3 devices) |
Specifications are sourced from the manufacturer product page and may be updated.
