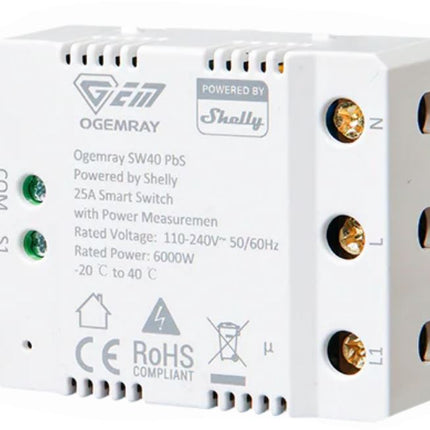

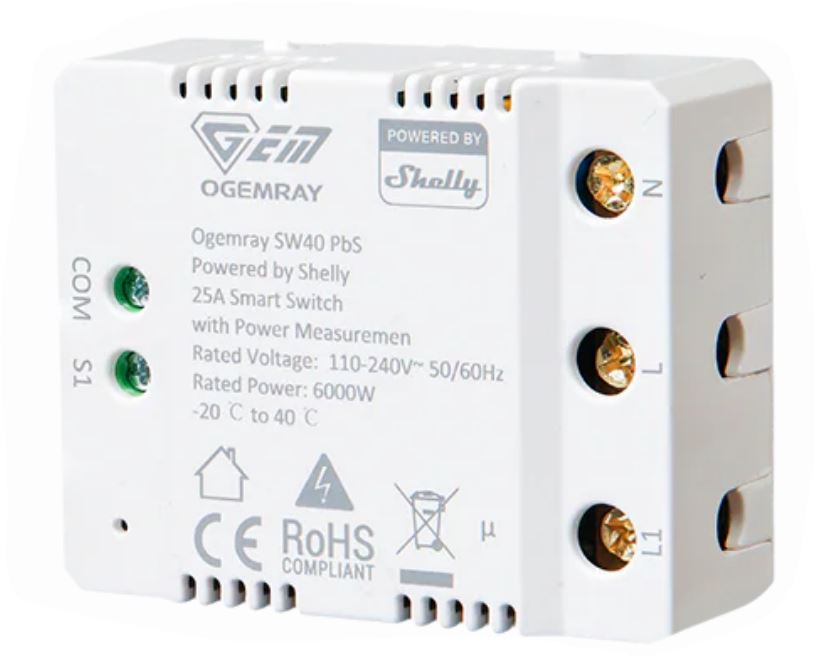

Shelly Ogemray 25A Wi-Fi Smart Relay with Power Metering 6000W
The Shelly Ogemray 25A Smart Relay is a high-capacity Wi-Fi and Bluetooth smart relay designed for precise control and automation of high-power devices up to 25A / 6000W. Powered by Shelly's advanced ShellyX chip, this relay is perfect for water heaters, industrial machines, water pumps, and other large appliances in both residential and industrial environments. With built-in power metering accurate to within 1%, you can monitor real-time energy consumption, optimise usage, and reduce utility costs. No hub required - simply connect to your 2.4 GHz Wi-Fi network and enjoy full smart home integration with Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, and over 200 other platforms.
Why You'll Love the Shelly Ogemray 25A Smart Relay
-
High-Load Control: Manage appliances up to 25A and 6000W - ideal for water heaters, pumps, industrial machinery, and more
-
Real-Time Energy Monitoring: Track power consumption and voltage with 1% accuracy to identify energy-hungry devices and cut costs
-
No Hub Required: Connects directly to your Wi-Fi network for seamless control via the free Shelly Smart Control app
-
Advanced Automation: Create custom schedules, scenes, and sunrise/sunset routines; supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, and TLS
-
Built-In Safety: Overvoltage and overpower protection with auto recovery keeps your devices safe and reliable
-
Compact & Easy to Install: Fits in standard electrical wall boxes, fuse boxes, or mounts directly on the wall with included bracket
Powerful Automation for Heavy-Duty Appliances
The Ogemray 25A is designed to handle more demanding applications than typical smart relays. While standard Shelly devices like the Mini 1PM can manage up to 8A, the Ogemray handles up to 25A, making it suitable for heavy-duty residential and light industrial use. Control and automate water heaters, water pumps, fans, lights, HVAC systems, and other high-power devices remotely from anywhere via the Shelly app or your preferred smart home platform. Set custom schedules to optimise energy use, or trigger actions based on time of day, sensor inputs, or other connected Shelly devices.
Precision Energy Monitoring
Keep a close eye on your energy consumption with the Ogemray's built-in power metering. Monitor real-time power draw, voltage, and cumulative energy use for connected appliances. The relay tracks usage patterns and helps you identify opportunities to reduce waste and lower your electricity bills. Perfect for Australian households and businesses looking to improve energy efficiency and meet sustainability goals.
Seamless Smart Home Integration
Powered by Shelly's proprietary ShellyX chip, the Ogemray 25A is natively compatible with the entire Shelly ecosystem and integrates effortlessly with major smart home platforms including Google Home, Amazon Alexa, Apple HomeKit (via third-party bridges), Samsung SmartThings, Home Assistant, Hubitat, and over 200 others. Advanced users will appreciate support for MQTT, WebSocket, HTTPS, UDP, TLS, scripting (mJS), webhooks, custom certificates, and KNXnet/IP communication. All primary functions operate 100% locally, so your automation continues to work even if your internet connection drops.
Wi-Fi & Bluetooth Connectivity
The Ogemray connects to your 2.4 GHz Wi-Fi network (802.11 b/g/n) with a range of up to 50m outdoors and 30m indoors. Bluetooth 4.2 allows for local setup, direct communication with Shelly BLU battery devices, and backup control. The relay features a potential-free input for connecting physical switches and supports flexible configuration for classic toggle or push-button switches.
Robust Construction & Safety Features
Built for reliability, the Ogemray 25A includes overvoltage protection with auto recovery, overpower protection, and an internal temperature sensor to ensure safe, long-term operation. The device is rated for 110-240V AC ±10%, 50/60Hz and consumes less than 1.2W when idle. Large screw terminals accommodate cables from 0.2 to 4 mm² (24 to 11 AWG), making installation straightforward and secure. The compact white plastic housing measures just 51.4 × 60 × 26.5 mm and weighs 82 g, ensuring it fits easily into tight spaces.
Flexible Installation Options
Install the Ogemray 25A in standard electrical wall boxes, control panels, fuse boxes, or directly on the wall using the included mounting bracket and anchors. No rewiring is required - simply wire it in line with your existing appliance. The device supports one input with flexible configuration for controlling the relay output via a connected switch.
What's in the Box
- 1 × Shelly Ogemray 25A Smart Relay
- 1 × Wall mounting bracket
- 2 × Wall mounting anchors
- 1 × User guide
Full Specifications
Electrical
| Power Supply |
110-240V AC ±10%, 50/60Hz |
| Max Switching Voltage (AC) |
240V |
| Max Switching Current (AC) |
25A |
| Max Switching Power (AC) |
6000W |
| Power Consumption |
< 1.2W |
| Relay Type |
1 channel, SPST |
Connectivity
| Wi-Fi Protocol |
802.11 b/g/n (2.4 GHz) |
| Wi-Fi RF Band |
2401-2486 MHz |
| Wi-Fi Max RF Power |
< 20 dBm |
| Wi-Fi Range |
Up to 50m outdoors / 30m indoors |
| Bluetooth Protocol |
4.2 |
| Bluetooth RF Band |
2400-2483.5 MHz |
| Bluetooth Max RF Power |
< 4 dBm |
| Bluetooth Range |
Up to 30m outdoors / 10m indoors |
Features
| Power Metering |
Yes (voltage, current, power) |
| Overvoltage Protection |
Yes, with auto recovery |
| Overpower Protection |
Yes |
| Internal Temperature Sensor |
Yes |
| Schedules |
Up to 20 |
| Webhooks (URL Actions) |
20 with 5 URLs per hook |
| MQTT |
Yes |
| UDP |
Yes |
| Scripting |
Yes (mJS) |
| Input Support |
1 potential-free input with flexible configuration |
Physical
| Dimensions (H × W × D) |
51.4 × 60 × 26.5 mm / 2.03 × 2.36 × 1.04 in |
| Weight |
82 g / 2.89 oz |
| Screw Terminals Max Torque |
1.2 Nm / 10.6 lbin |
| Conductor Cross Section |
0.2 to 4 mm² / 24 to 11 AWG (solid, stranded, bootlace ferrules) |
| Conductor Stripped Length |
6 to 7 mm / 0.24 to 0.28 in |
| Mounting |
Wall mount, wall box, control panel, fuse box |
| Shell Material |
Plastic |
| Shell Color |
White |
Environmental
| Operating Temperature |
-20°C to 40°C / -5°F to 105°F |
| Humidity |
30% to 70% RH |
| Max Altitude |
2000 m / 6562 ft |
| Indoor Use Only |
Yes |
Compatibility
| Smart Home Platforms |
Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, Hubitat, Apple HomeKit (via bridge), and 200+ others |
| Advanced Protocols |
MQTT, WebSocket, HTTPS, UDP, TLS, KNXnet/IP, custom certificates |
Warranty & Support
| Warranty |
2 years (Australian warranty) |
| Device Model |
S3PB-000001 / SW40 PbS |
Specifications are sourced from the manufacturer product page and may be updated.
