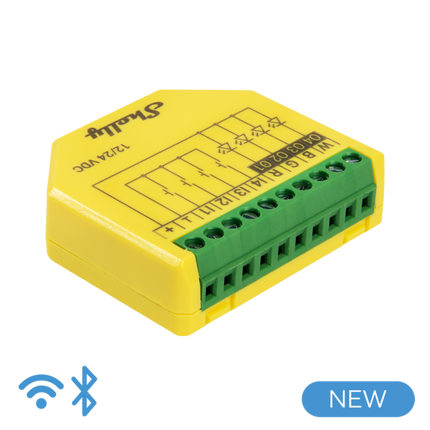

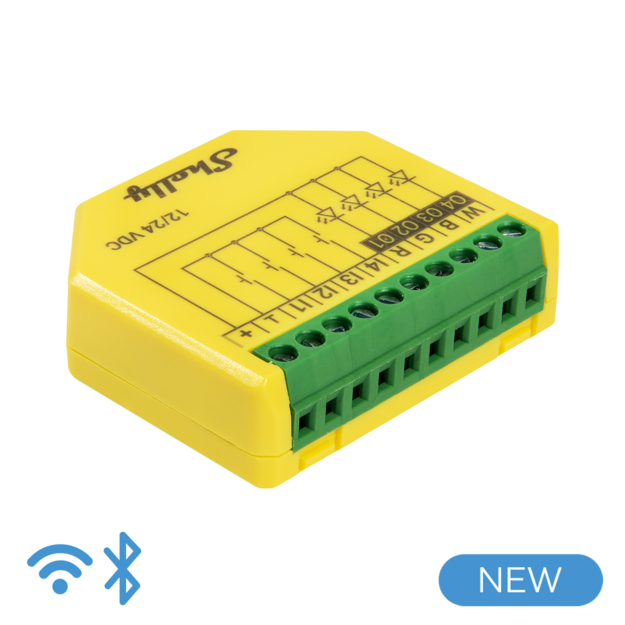

Shelly Plus RGBW PM WiFi Smart LED Controller with Power Monitoring
The Shelly Plus RGBW PM is a compact Wi-Fi and Bluetooth-operated RGBW controller designed for effortless control of LED strips and dimmable LED lights. Supporting 12-24V DC LED strips in RGBW, RGB, and Lights x4 profiles, this versatile smart controller enables you to create the perfect ambiance with 16 million colors and dynamic lighting effects. With built-in power monitoring, the Shelly Plus RGBW PM tracks voltage, current, and energy consumption in real-time, helping you optimize efficiency without compromising on style. Perfect for smart home automation, retail displays, accent lighting, and creative installations across Australia.
Key Features
-
3 Flexible Profiles: Choose RGBW for full-color white control, RGB for vibrant colors, or Lights x4 to control 4 independent LED strips or bulbs
-
Real-Time Power Monitoring: Track voltage, current, and power consumption for each channel, enabling energy-efficient lighting management
-
No Hub Required: Connects directly to your Wi-Fi network with quick inclusion and works with Alexa, Google Assistant, and Home Assistant
-
16 Million Colors & Effects: Set the mood with full-spectrum dimming, custom color scenes, and unique lighting effects
-
BLE Gateway & WiFi Extender: Acts as a gateway for Bluetooth devices and extends your Wi-Fi signal reach
-
Advanced Scheduling & Scripting: Create custom automations, weekly schedules, sunrise/sunset routines, and local control via scripting
Versatile LED Strip Control
The Shelly Plus RGBW PM works with any 12V or 24V DC white, RGB, or RGBW LED strips, supporting up to 10A combined output. With three distinct operating profiles, you can tailor the controller to your exact needs. The RGBW profile gives you independent control over red, green, blue, and white channels. The RGB profile controls three-color LED strips. The Lights x4 profile allows you to control four separate single-color LED strips or LED bulbs independently, ideal for multi-zone lighting setups in homes, offices, or retail spaces.
Smart Home Integration
Designed for seamless integration with popular smart home platforms, the Shelly Plus RGBW PM works with Alexa, Google Home, Home Assistant, SmartThings, and other automation systems. Control your lighting via the Shelly Smart Control app, voice commands, or through automation routines. The controller supports MQTT, webhooks, HTTP, and local scripting, giving advanced users the freedom to create complex automations and integrate with third-party sensors and devices.
Power Monitoring & Energy Efficiency
Unlike standard LED controllers, the Shelly Plus RGBW PM includes precise power measurement functionality. Monitor real-time voltage, current, and power consumption for all connected LED loads. This feature is invaluable for understanding energy usage patterns, identifying inefficiencies, and reducing electricity costs. Perfect for commercial installations, smart buildings, and energy-conscious homeowners across Australia.
Compact & Easy Installation
With ultra-compact dimensions of just 42 x 37 x 12 mm and weighing only 17 grams, the Shelly Plus RGBW PM is one of the smallest Wi-Fi LED controllers on the market. It fits easily behind light switches, inside junction boxes, or in tight spaces where traditional controllers won't fit. The controller features 4 switch/button inputs, allowing you to use existing wall switches (single, dual, or 4-button) for local control, and supports analog input mode with potentiometers for manual dimming.
Advanced Features for Professionals
-
High Frequency PWM Mode: Adjustable PWM frequency up to 22kHz to reduce acoustic noise from DC drivers (default 833 Hz)
-
Independent RGB & White Control: Separately adjust color brightness and white brightness for precise lighting control
-
Night Mode: Set specific brightness levels during nighttime hours for gentle, sleep-friendly lighting
-
Min/Max Brightness Control: Fine-tune the dimming range for precise output control
-
Custom Fade Rates: Control how quickly brightness changes when holding buttons
-
Wake-Up & Sleep Routines: Simulate sunrise and sunset with gradual color and brightness transitions
Connectivity & Inputs
- Wi-Fi 802.11 b/g/n (2.4 GHz)
- Bluetooth Low Energy (BLE) Gateway
- 4 x Switch/Button/Analog Inputs (10kΩ potentiometer recommended)
- 4 x PWM Outputs (RGBW, RGB, or 4 independent channels)
- 12-24V DC power supply inputs
- Screw terminals (0.1-1 mm² / 30-16 AWG conductor)
What's in the Box
- 1 x Shelly Plus RGBW PM Controller
- User Guide
Full Specifications
Technical
| Model |
Shelly Plus RGBW PM |
| Connectivity |
Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth Low Energy |
| Supported Profiles |
RGBW, RGB, Lights x4 |
| Power Monitoring |
Yes (voltage, current, power consumption per channel) |
| Voice Control |
Alexa, Google Assistant |
| Smart Home Integration |
Home Assistant, SmartThings, MQTT, HTTP, Webhooks |
Electrical
| Operating Voltage |
12-24V DC |
| Max Combined Output Current |
10A |
| PWM Frequency |
833 Hz (default), up to 22 kHz (high frequency mode) |
| Outputs |
4 x PWM channels (RGBW / RGB / 4 independent) |
| Inputs |
4 x Switch/Button/Analog (10kΩ analog input recommended) |
Physical
| Dimensions (H x W x D) |
42 x 37 x 12 mm (±0.5 mm) |
| Dimensions (H x W x D) |
1.65 x 1.46 x 0.66 in (±0.02 in) |
| Weight |
17 g (0.60 oz) |
| Screw Terminal Torque |
0.2 Nm / 1.8 lb-in (max) |
| Conductor Cross Section |
0.1-1 mm² / 30-16 AWG (solid, stranded, crimp terminals) |
| Operating Temperature |
-20°C to 40°C / -5°F to 105°F |
Warranty
| Warranty Period |
3 years (Shelly Plus series) |
Specifications are sourced from the manufacturer product page and may be updated.
