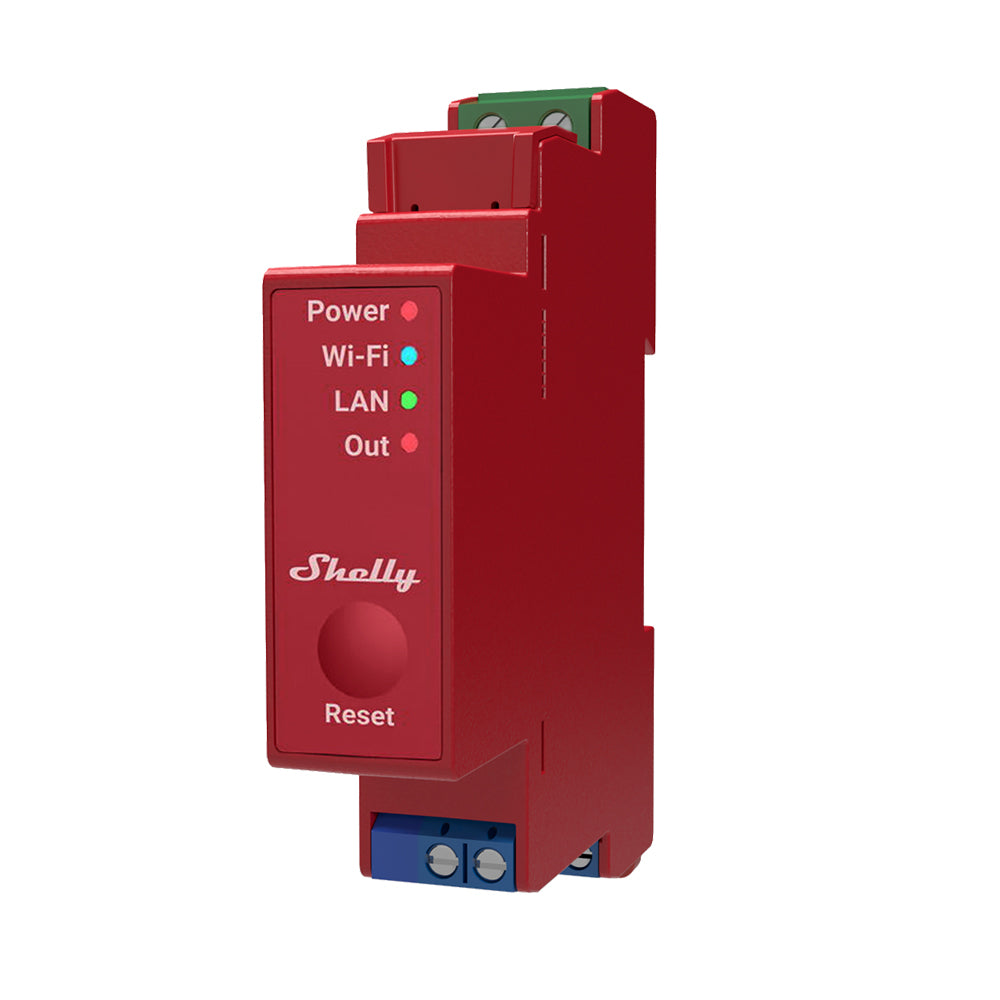

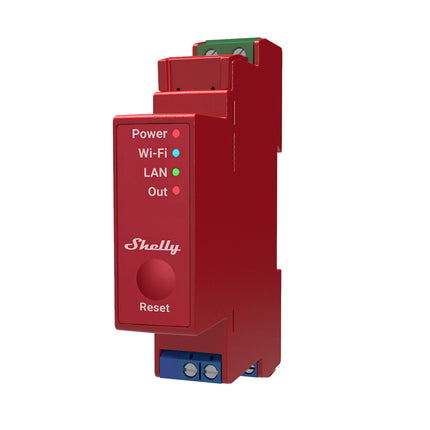

Shelly Pro 1PM DIN Rail Smart Relay Switch with Wi-Fi and Power Metering
The Shelly Pro 1PM is a professional-grade DIN rail mountable smart relay switch with integrated power metering capabilities. Designed for installation inside breaker boxes, this 1-channel relay supports up to 16A and offers Wi-Fi, LAN, and Bluetooth connectivity for flexible smart home and commercial automation. Enhanced with Gen2 firmware flexibility, it provides professional integrators and DIY enthusiasts with extensive control options for automating lights, HVAC systems, appliances, and more.
Key Features
-
DIN Rail Mounting: Professional installation inside standard electrical panels alongside circuit breakers
-
Integrated Power Metering: Real-time monitoring of energy consumption with ±1% accuracy
-
Triple Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Ethernet 100 Mbit/s, and Bluetooth 4.2
-
16A Maximum Load: Control up to 3500W of connected devices and appliances
-
Advanced Safety Features: Temperature, overpower, and overvoltage load protection with instant notifications
-
No Hub Required: Works standalone or integrates with cloud home automation services
-
Voice Control Compatible: Works with Amazon Alexa, Google Home, and other smart assistants
-
mJS Scripting: Create custom automation scenes based on external data or schedules
Professional-Grade Automation
The Shelly Pro 1PM delivers precise power monitoring that allows you to track energy consumption in real time, predict monthly costs, and identify inefficient appliances before they waste energy. Set smart schedules to power off office equipment during weekends, control floor heating based on weather forecasts, or receive alerts if appliances are left running outside business hours.
Flexible Connectivity Options
Unlike standard smart relays, the Pro 1PM offers simultaneous Wi-Fi and LAN connectivity, providing backup redundancy when reliability is critical. The Ethernet connection ensures high security for professional installations, while Bluetooth functionality acts as a gateway for other Shelly BLE devices. Control remotely via the Shelly Smart Control app, embedded web interface, or integrate with platforms like Home Assistant, Samsung SmartThings, and more.
Enhanced Safety & Protection
Shelly Pro devices feature flame-retardant materials (V-0 rated) and multiple protection systems:
-
Temperature Protection: Internal sensor measures heat every 100ms, switching off outputs if unsafe levels are detected
-
Overpower Protection: Automatically disconnects load and sends notification if power exceeds safe thresholds
-
Overvoltage Protection: Detects voltage peaks and switches off to protect connected appliances
-
Improved Thermal Performance: 4-layer PCBs for better heat dissipation
Smart Home & Commercial Applications
Perfect for homes, offices, retail stores, restaurants, and manufacturing facilities. Automate lighting systems, HVAC units, water heaters, commercial kitchen equipment, and more. The Pro 1PM works with existing wall switches and requires no additional wiring beyond standard DIN rail installation.
Advanced Automation Features
- HTTP/HTTPS webhooks for 3rd party system integration
- Sunrise/sunset actions with offsets
- Weekly scheduling
- Custom mJS scripts for complex automations
- Grouping and scene creation
- KNXnet / IP communication support
- TLS 1.2 security for secure cloud and local integrations
What's in the Box
- Shelly Pro 1PM smart relay switch
- User guide and safety instructions
Full Specifications
| Model Number |
SNPM-001PE16EU (Pro 1PM v.1) |
| Power Supply |
110-240V AC, 50/60 Hz |
| Maximum Load |
16A / 3500W |
| Channels |
1-phase, 1-channel relay |
| Power Metering |
Yes, ±1% accuracy |
| Wi-Fi |
802.11 b/g/n (2.4 GHz only) |
| Ethernet |
100 Mbit/s LAN connection |
| Bluetooth |
BLE 4.2 (also functions as gateway) |
| Operating Temperature |
-20°C to +40°C |
| Mounting |
DIN rail (4 modules wide) |
| Safety Features |
Temperature, overpower, and overvoltage protection |
| Flame Retardant Rating |
V-0 |
| Firmware |
Gen2 with mJS scripting support |
| Control Methods |
Shelly app (iOS/Android), web interface, voice assistants, API, MQTT |
| Compatibility |
Alexa, Google Home, Home Assistant, SmartThings, and more |
| Hub Required |
No |
| Certifications |
CE, RoHS |
| Warranty |
5 years manufacturer warranty |
Specifications are sourced from the manufacturer product page and may be updated. Professional installation by a licensed electrician is recommended. Always follow local electrical codes and safety regulations.
