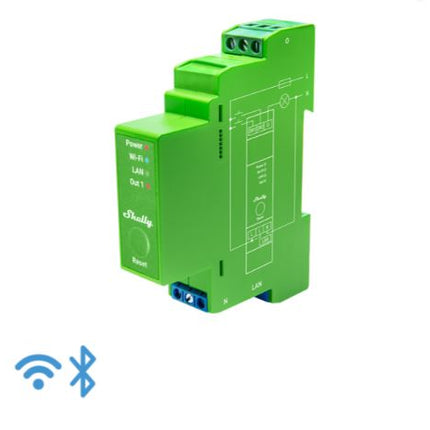

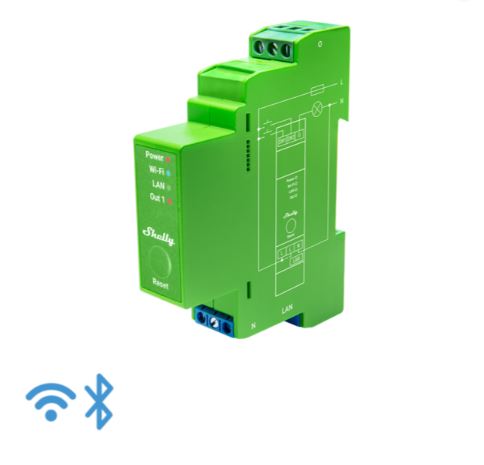

Shelly Pro 1PM DIN Rail Smart Relay Switch with Wi-Fi & Power Metering
The Shelly Pro 1PM is a professional-grade DIN rail mountable smart relay switch designed for home and facility automation. This single-phase, 1-channel relay supports up to 16A and features an integrated precision power meter that enables real-time monitoring of energy consumption. Enhanced with Wi-Fi, LAN, and Bluetooth connectivity, the Shelly Pro 1PM provides professional integrators with flexible options for end-customer solutions, offering both cloud-based and local network control.
Key Features
-
Precise Power Metering: Built-in power meter allows you to track and measure energy consumption of connected lights and appliances in real-time
-
Triple Connectivity: Wi-Fi, LAN (Ethernet), and Bluetooth connections provide reliable communication with simultaneous Wi-Fi and LAN usage as backup
-
Professional DIN Rail Mounting: Designed to be installed inside the breaker box on standard DIN rail, next to circuit breakers
-
16A Load Capacity: Handles up to 16A of power for controlling a wide range of electrical devices and appliances
-
Enhanced Safety Features: Includes overpower protection, overvoltage protection, and overheating protection with internal temperature monitoring every 100ms
-
5-Year Warranty: All Shelly Pro devices come with an industry-leading 5-year manufacturer warranty
Smart Home Integration
The Shelly Pro 1PM works standalone in a local Wi-Fi network or can be operated through cloud home automation services. Control and monitor your appliances remotely from anywhere using the Shelly Smart Control app on your smartphone or tablet. Compatible with popular voice assistants like Amazon Alexa and Google Home, as well as home automation platforms including Home Assistant, MQTT, and other protocols. The embedded web interface allows direct device monitoring and settings adjustment.
Advanced Automation Capabilities
Set custom automation scenes, schedules, and scenarios to sync your lighting and appliances to your daily activities or business needs. The Shelly Pro 1PM features scripting functionalities that allow you to create custom automation based on external data sources or various triggers. Monitor power consumption to predict monthly costs, manage energy spending effectively, and receive alerts if appliances are left running unnecessarily.
Commercial & Residential Applications
Perfect for automating and measuring consumption of lights, dishwashers, washing machines, HVAC systems, and other electrical appliances in homes, offices, stores, restaurants, and manufacturing facilities. The flame-resistant construction ensures safety even when exposed to high heat levels. Suitable for new construction projects or retrofitting existing installations.
What's in the Box
- Shelly Pro 1PM DIN rail smart relay switch
- Multi-language printed user manual
- Quick installation guide
Full Specifications
| Mounting Type |
DIN rail |
| Dimensions (H × W × L) |
68.5 × 18.5 × 89.5 mm |
| Power Supply |
110-240V AC, 50/60 Hz |
| Max Load per Channel |
16A |
| Channels |
1-phase, 1-channel relay |
| Power Metering |
Yes, integrated precision power meter |
| Electrical Consumption |
<3W |
| Wireless Connectivity |
Wi-Fi 802.11 b/g/n (2.4 GHz), LAN (Ethernet), Bluetooth |
| Wireless Frequency |
2400-2500 MHz |
| Working Temperature |
-40°C to +40°C |
| Warranty |
5 years manufacturer warranty |
| Safety Features |
Overpower protection, overvoltage protection, overheating protection |
| Control Methods |
Smartphone app, web interface, voice control, home automation platforms |
| Voice Assistant Compatibility |
Amazon Alexa, Google Home |
| Automation Platform Support |
Home Assistant, MQTT, and other protocols |
Specifications are sourced from the manufacturer product page and may be updated.
