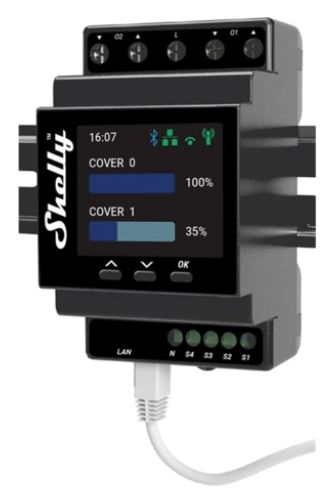

Shelly Pro Dual Cover/Shutter PM DIN Rail Smart Controller with Power Metering
The Shelly Pro Dual Cover/Shutter PM is a DIN rail mountable smart dual cover controller with integrated precise power metering for each of two channels, supporting up to 16A load per cover. Enhanced with Gen2 firmware flexibility, Wi-Fi, LAN, and Bluetooth connectivity, this professional-grade automation controller is perfect for roller shutters, curtains, awnings, gates, barriers, sliding doors, garage doors, and bi-directional AC motors in residential, commercial, and industrial settings.
Why You'll Love the Shelly Pro Dual Cover PM
-
Dual Channel Control: Independently control and monitor two separate motorized covers with precise power measurement for each
-
Professional Installation: DIN rail mountable design for clean, permanent installation inside breaker boxes
-
Triple Connectivity: Wi-Fi, LAN (RJ45), and Bluetooth support with simultaneous Wi-Fi and LAN operation for maximum reliability
-
Advanced Protection: Built-in overvoltage, overcurrent, overpower, and overtemperature protection to safeguard your equipment
-
Smart Automation: Create custom scripts based on time, weather forecasts, power consumption, or other triggers
-
Energy Monitoring: Integrated precise power meters track consumption of each cover separately
Professional-Grade Smart Home Integration
The Shelly Pro Dual Cover PM works standalone in a local Wi-Fi network or integrates seamlessly with cloud home automation platforms including Home Assistant, Shelly Smart Control app, and other popular automation systems. Access, control, and monitor your covers remotely from anywhere with internet connectivity. The embedded web interface allows direct device monitoring and configuration without requiring cloud services.
Advanced Automation Capabilities
Use scripting functions to create sophisticated automation scenarios based on weather forecasts, time schedules, power consumption patterns, or sensor inputs. For example, automatically close awnings when wind sensors detect high speeds, or open roller shutters at sunrise and close them at sunset. Set custom scenes by combining the Shelly Pro Dual Cover PM with your other smart devices for complete environmental control.
Enhanced Safety & Reliability
All Shelly Pro components are manufactured with flame-resistant materials and feature comprehensive protection systems. Overvoltage protection switches off outputs when voltage peaks are detected, overpower protection prevents equipment damage from excessive loads, and obstacle detection can stop motor operation when obstructions are encountered. TLS 1.2 support enables secure cloud-connected and local integrations.
Connectivity & Control
-
Wi-Fi: 802.11 b/g/n (2.4 GHz, 2400-2495 MHz) with range up to 30m indoors, 50m outdoors
-
LAN: RJ45 Ethernet connector for wired network connection
-
Bluetooth: For easy initial setup and inclusion
-
4 switch/button inputs: Screw terminals S1, S2, S3, S4 for physical controls
-
2 power supply inputs: Neutral (N) and Line (L) screw terminals
-
4 relay outputs: Up and down direction control for O1 and O2
Ideal Applications
The Shelly Pro Dual Cover PM is perfect for controlling roller shutters, curtains, awnings, gates, barriers, sliding doors, garage doors, parking barriers, and window blinds in homes, multi-dwelling units (apartments, condominiums, hotels), light commercial buildings (offices, retail, restaurants), government/municipal facilities, and university/college campuses. Its professional DIN rail mounting makes it especially suitable for new construction and retrofit projects.
What's in the Box
- Shelly Pro Dual Cover/Shutter PM controller
- Installation guide
- User manual
Full Specifications
Physical
| Dimensions (H × W × D) |
96 × 53 × 59 mm ±0.02 mm (3.78 × 2.01 × 2.32 in) |
| Weight |
150 g (5.30 oz) |
| Mounting |
DIN rail |
| Shell Material |
Plastic (flame-resistant) |
| Color |
Dark gray |
| Screw Terminals Max Torque |
0.4 Nm / 3.5 lbin (green connectors) |
| Conductor Cross Section |
0.5 to 2.5 mm² / 20 to 14 AWG |
| Conductor Stripped Length |
6 to 7 mm / 0.24 to 0.28 in |
Electrical
| Power Supply Voltage |
110-240V AC |
| Power Consumption |
< 3 W |
| Neutral Wire Required |
Yes |
| Max Switching Voltage AC |
240V AC |
| Max Switching Current AC |
16A per output |
| Total Device Output |
32A (2 × 16A) |
| Number of Channels |
2 independent covers |
Environmental
| Operating Temperature |
-20°C to 40°C (-5°F to 105°F) |
| Humidity |
30% to 70% RH |
| Max Altitude |
2000 m / 6562 ft |
Connectivity & Radio
| Wi-Fi Protocol |
802.11 b/g/n |
| RF Band |
2400-2495 MHz |
| Max RF Power |
<20 dBm |
| Wi-Fi Range |
Up to 30m / 100 ft indoors, 50m outdoors |
| LAN Connection |
RJ45 Ethernet connector |
| Bluetooth |
Yes (for setup and inclusion) |
Sensors & Meters
| Voltmeter (AC) |
Yes |
| Ammeter (AC) |
Yes |
| Power Metering |
Integrated precise power meters for each cover |
| Internal Temperature Sensor |
Yes |
Inputs & Outputs
| Switch/Button Inputs |
4 screw terminals (S1, S2, S3, S4) |
| Power Supply Inputs |
2 screw terminals (N, L) |
| Relay Outputs |
4 (up/down for O1, up/down for O2) |
| Network Port |
1 × RJ45 connector |
Warranty & Compliance
| Manufacturer Warranty |
5 years (hardware and firmware) |
| Safety Features |
Overvoltage, overcurrent, overpower, overtemperature protection |
| Security |
TLS 1.2 support |
Specifications are sourced from the manufacturer product page and may be updated.
