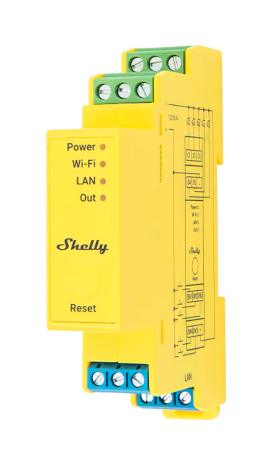

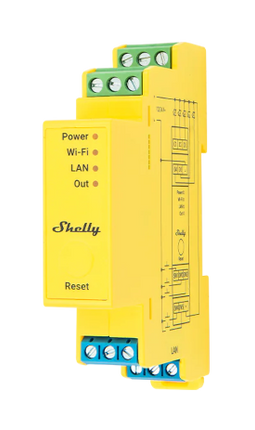

Shelly PRO RGBWW PM 5-Channel DIN Rail Smart LED Controller with Power Metering
The Shelly PRO RGBWW PM is a professional-grade, DIN-rail mountable smart light controller designed for advanced LED strip automation in homes, offices, and commercial installations. Featuring 5 independent channels, this versatile controller manages RGB, CCT (tunable white), and individual LED strips with precision. Built-in real-time power metering tracks voltage, current, and energy consumption, making it ideal for energy management and professional lighting projects. Control your lighting from anywhere via Wi-Fi, Ethernet, or Bluetooth, with seamless integration into Home Assistant, Alexa, Google Home, and the Shelly Smart Control app – no hub required.
Key Features
-
5-Channel Control: Supports RGB+CCT, CCT x2, RGB+2x Light, and Lights x5 profiles for ultimate flexibility
-
DIN Rail Mountable: Professional installation inside breaker boxes for clean, permanent smart lighting automation
-
Real-Time Power Metering: Monitor voltage, current, and power consumption for energy optimization and load management
-
Triple Connectivity: Wi-Fi, Ethernet (LAN), and Bluetooth for reliable control and redundancy
-
Independent Channel Control: Control up to 5 separate LED strips individually in Lights x5 mode
-
No Hub Required: Works standalone or integrates with Home Assistant, Alexa, Google Home, and other platforms
-
Advanced Safety Features: Overpower, overvoltage, and overheating protection with automatic shutoff
-
12/24V DC Compatible: Works with standard low-voltage LED strips and drivers
-
Scriptable Automation: Create custom scenes, schedules, and automation scenarios
-
5-Year Warranty: All Shelly Pro devices include a comprehensive 5-year manufacturer warranty
Professional Lighting Control for Every Application
Whether you're installing ambient CCT lighting for a restaurant, multi-zone RGB strips in a retail space, or smart residential lighting, the Shelly PRO RGBWW PM delivers professional-grade control with consumer-friendly ease. The 4 flexible profiles let you configure the controller for different LED setups: RGB and CCT for color-changing mood lighting with tunable white accents, CCT x2 for dual independent tunable white zones, or Lights x5 for controlling 5 completely separate LED strips or zones.
Real-Time Energy Monitoring
Built-in power metering provides precise, real-time tracking of voltage, current, and energy consumption across all connected LED loads. Perfect for commercial installations, energy audits, and understanding lighting costs, the power monitoring feature helps you optimize energy usage and spot potential electrical issues before they become problems.
Robust Connectivity Options
The Shelly PRO RGBWW PM offers Ethernet, Wi-Fi, and Bluetooth connectivity, ensuring reliable control in any environment. Use the LAN connection for high-security commercial installations, Wi-Fi for flexible wireless control, or simultaneous Wi-Fi and LAN as a backup. The device also functions as a Wi-Fi Range Extender and BLE Gateway, extending your smart home network.
Smart Integrations & Voice Control
Control your lighting with Alexa, Google Home, or your favorite home automation platform including Home Assistant, Hubitat, and more. The free Shelly Smart Control app (iOS and Android) lets you create schedules, adjust brightness and color temperature, monitor energy usage, and build custom automation scenarios – all from your smartphone, anywhere in the world.
Advanced Features for Professionals
-
Analog Input Support: Connect potentiometers (10kΩ analog input) for manual dimming control
-
Night Mode: Automatically adjust brightness to preset levels during nighttime hours
-
Button Presets: Program double-click actions for instant scene recall
-
High Frequency PWM Mode: Increase PWM frequency to 22kHz to reduce acoustic noise from DC drivers
-
Min/Max Color Temperature Mapping: Remap CCT output range (1000-10000K) to match specific LED strips
-
Wake-Up and Sleep Routines: Simulate sunrise/sunset with gradual color and brightness changes
Professional Installation & Safety
Designed for DIN rail mounting inside electrical panels, the Shelly PRO RGBWW PM offers a clean, professional installation with no exposed wiring. Enhanced with temperature monitoring (every 100ms), overpower protection, and overvoltage protection, the controller automatically switches off outputs and sends notifications if unsafe conditions are detected. All components are flame-retardant rated (V-0) and maintain structural integrity even at high temperatures.
What's in the Box
- 1 × Shelly PRO RGBWW PM DIN Rail Controller
- User and safety guide
Full Specifications
Control & Connectivity
| Model |
PRO RGBWW PM (SPDC-0D5PE16EU) |
| Channels |
5 independent outputs |
| Inputs |
5 inputs (button, switch, or analog 10kΩ) |
| Control Profiles |
RGB+CCT (default), CCT x2, RGB+2x Light, Lights x5 |
| Connectivity |
Wi-Fi (2.4GHz), Ethernet (LAN), Bluetooth |
| Voice Control |
Amazon Alexa, Google Home |
| Platform Support |
Home Assistant, Hubitat, Shelly Smart Control app, and most automation platforms |
| Hub Required |
No |
Electrical
| Input Voltage |
12/24V DC |
| Power Metering |
Yes (voltage, current, power consumption) |
| PWM Frequency |
833 Hz (default), 22kHz (high frequency mode) |
| Color Temperature Range |
1000-10000K (configurable min/max: default 2700-6500K) |
Protection & Safety
| Overpower Protection |
Yes, with automatic shutoff and notification |
| Overvoltage Protection |
Yes, with automatic shutoff and notification |
| Overheating Protection |
Yes, temperature monitored every 100ms |
| Flame Retardant Rating |
V-0 |
| Installation Location |
Indoor use only |
Physical & Mounting
| Mounting Type |
DIN rail (35mm standard rail) |
| Intended Installation |
Inside breaker box / electrical panel |
Warranty & Support
| Warranty |
5 years (manufacturer warranty on all Shelly Pro products) |
| Firmware Updates |
Free, via web interface or Shelly Smart Control app |
Specifications are sourced from the manufacturer product page and may be updated.
