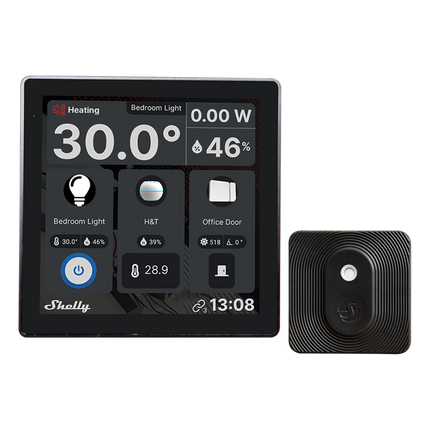

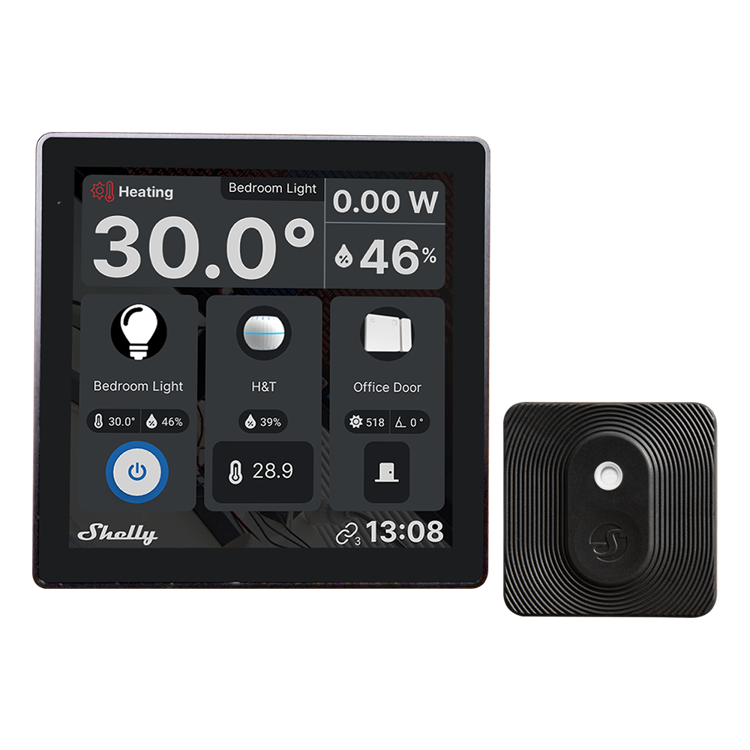

Shelly Wall Display Black 4-Inch Smart Home Control Panel with Temperature and Humidity Sensors
The Shelly Wall Display Black is a sophisticated 4-inch touchscreen control panel that brings intuitive control and seamless monitoring to every corner of your smart home. This smart control panel features integrated temperature, humidity, and light sensors for real-time environmental monitoring, plus a built-in 5A relay for direct appliance control. Perfect for Australian homes looking to upgrade from ordinary switches to intelligent, centralized smart home management.
Key Features
-
4-Inch Touch-Sensitive Color Display: Fully customizable layout with easy navigation and personalized home screen
-
Integrated Environmental Sensors: Built-in temperature, humidity, and light sensors provide real-time room data
-
Built-in 5A Relay Switch: Control lights, fans, heaters, and appliances with a simple two-finger tap
-
Wi-Fi and Bluetooth Connectivity: No hub required - connects directly to your network and works as a Bluetooth gateway
-
Customizable Home Screen: Display up to 6 favorite devices with temperature, humidity, and power consumption at a glance
-
Works with Major Platforms: Compatible with Alexa, Google Home, HomeKit, Home Assistant, and MQTT
Smart Climate Control and Monitoring
Monitor your home environment with precision using the integrated sensors for temperature, humidity, and ambient light. The Shelly Wall Display Black can function as a room thermostat when paired with the included Shelly BLU H&T Bluetooth sensor, enabling you to automate heating, cooling, and ventilation based on current conditions. Set up automations to adjust dehumidifiers, humidifiers, and fans to maintain optimal comfort and prevent issues like mold and mildew in bathrooms and basements.
Complete Smart Home Control at Your Fingertips
Say goodbye to ordinary switches and embrace centralized control. The Shelly Wall Display lets you control lights, adjust room temperature, monitor power consumption, and activate scenes with a simple touch. Create unlimited favorites with your most-used devices, groups, and scenes for instant access. Whether you're dimming lights for movie night, activating a "Good Morning" scene, or turning off all devices when leaving home, everything is just a tap away.
Energy Monitoring and Efficiency
Track real-time power consumption for all connected Shelly devices in your room through your Shelly Smart Control account. Identify which appliances use the most energy and optimize usage to reduce unnecessary consumption and lower electricity bills - essential for Australian households looking to maximize energy efficiency.
Easy Installation and Integration
The Shelly Wall Display Black installs in standard 85x85mm wall boxes, replacing traditional light switches with smart functionality. Connect it directly to your Wi-Fi network without requiring a hub, and use Bluetooth for quick device inclusion or as a gateway for other Bluetooth devices. Supports resistive, capacitive, and inductive loads including LED drivers, transformers, fans, refrigerators, air conditioners, and more.
Connectivity and Compatibility
-
Wi-Fi: Direct network connection, no hub required
-
Bluetooth: Quick pairing and gateway functionality
-
Voice Control: Works with Amazon Alexa, Google Assistant, and Apple HomeKit
-
Home Automation: Compatible with Home Assistant, MQTT, and Shelly Smart Control App
-
Multi-Device Control: Manage all Shelly devices from one centralized interface
What's in the Box
- Shelly Wall Display Black (4-inch touch panel)
- Shelly BLU H&T Black (Bluetooth humidity and temperature sensor)
- Installation guide
- Mounting hardware
Full Specifications
Display
| Display Type |
4-inch touch-sensitive color display |
| Display Technology |
Capacitive touchscreen |
| Customization |
Fully customizable layout |
Sensors
| Integrated Sensors |
Temperature, humidity, and light (LUX) sensors |
| External Sensor |
Shelly BLU H&T (Bluetooth temperature & humidity sensor) - included |
Relay and Control
| Built-in Relay |
5A switching capacity |
| Load Types Supported |
Resistive, capacitive, inductive with RC snubber |
| Compatible Loads |
LED drivers, transformers, fans, refrigerators, air conditioners, washing machines |
Connectivity
| Wi-Fi |
802.11 b/g/n |
| Bluetooth |
Yes, with gateway functionality |
| Hub Required |
No |
| Protocols |
MQTT, Home Assistant, Shelly Smart Control App |
| Voice Assistant Support |
Amazon Alexa, Google Assistant, Apple HomeKit |
Physical Specifications
| Dimensions (H×W×D) |
85 × 85 × 30 mm (3.35 × 3.35 × 1.18 inches) |
| Weight |
180 g (6.35 oz) |
| Mounting |
Standard wall box (85x85mm) |
| Shell Material |
Plastic, aluminum, glass |
| Color |
Black |
Electrical
| Power Supply |
230 VAC, 50/60 Hz |
| Screw Terminal Max Torque |
0.4 Nm |
| Conductor Cross Section |
0.5 to 2.5 mm² (20 to 14 AWG) |
| Conductor Stripped Length |
6 to 7 mm |
Environmental
| Operating Temperature |
-20°C to 40°C (-5°F to 105°F) |
| Humidity Range |
30% to 70% RH |
| Maximum Altitude |
2000 m (6562 ft) |
Warranty
| Warranty Period |
3 years (hardware and firmware) |
| Replacement Coverage |
12 months free replacement including shipping |
Specifications are sourced from the manufacturer product page and may be updated.
