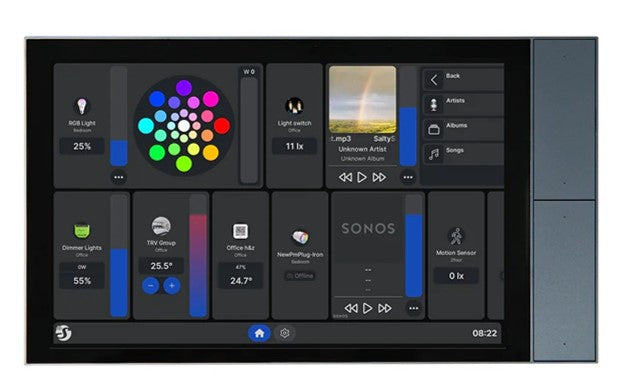

Shelly Wall Display XL Smart Home Control Panel
Transform your smart home control with the Shelly Wall Display XL, a large-format 10.1-inch HD touchscreen control panel designed for centralised management of your entire home automation system. Featuring Wi-Fi 6 dual-band connectivity, Bluetooth 5.4, a built-in 5A/1500W relay, and four customisable physical buttons, this in-wall smart display fits into standard electrical wall boxes, making it ideal for residential and commercial installations including homes, apartments, hotels, and offices.
Why You'll Love the Shelly Wall Display XL
-
10.1-Inch HD Touchscreen: Crystal-clear 1280 × 752 pixel resolution with 5-point capacitive touch and fully customisable layout for intuitive control
-
Wi-Fi 6 & Bluetooth 5.4 Connectivity: Dual-band 2.4 GHz and 5 GHz Wi-Fi 6 for fast, reliable wireless performance, plus Bluetooth 5.4 for speaker pairing and BLU device integration
-
Built-In 5A Relay: Directly control lights, fans, heaters, and appliances up to 1500W without additional hardware
-
Four Customisable Buttons: Quick access to scenes, devices, media playback, and more - perfect for guests, kids, and shared spaces
-
Integrated Stereo Speakers: Dual 2W high-quality speakers for audio notifications, alarms, and music streaming via Bluetooth or Sonos integration
-
Smart Sensors: Built-in proximity and light sensors for automatic wake and adaptive brightness control
Centralised Smart Home Control
The Shelly Wall Display XL serves as your home automation command centre, giving you complete control over lighting, HVAC, scenes, blinds, and appliances from a single, wall-mounted touchscreen. Manage individual devices, groups, or entire scenes with a tap - no need to walk room to room or pull out your phone. The customisable home screen puts your most-used controls front and centre for maximum convenience.
Power Monitoring & Energy Management
Monitor real-time power consumption for all connected Shelly devices in the room through your Shelly Smart Control account. The Wall Display XL helps you identify energy-hungry appliances, track usage patterns, and make informed decisions to cut down on waste and improve overall energy efficiency. Perfect for eco-conscious homes and cost-saving commercial installations.
Advanced Home Automation Features
Create custom automation scenes and schedules tailored to your lifestyle. Activate scenes like "Movie Night," "Leave Home," or "Good Morning" with a single button press. Use the integrated LUX measurement sensor to trigger lighting based on ambient brightness. Connect the Wall Display XL to your existing smart home ecosystem with support for MQTT, Home Assistant, and HTTP/HTTPS webhooks. The device runs on Android 11 powered by a Rockchip RK3566 Quad-core Cortex-A55 processor with 16 GB of internal memory.
Climate & Environmental Control
Leverage the Wall Display XL to maintain optimal indoor comfort. Automatically adjust heating, ventilation, and air conditioning based on current temperature and humidity data from paired Shelly sensors. Prevent mould and mildew by activating dehumidifiers when humidity levels spike. Receive alerts when temperature or humidity thresholds are exceeded - essential for protecting against frozen pipes, excessive moisture, or fire detection.
Audio Integration & Media Control
Connect Bluetooth or Sonos speakers to the Shelly Wall Display XL for enhanced audio throughout your space. Stream music, internet radio, notifications, and alarms with improved sound coverage. Control media playback (play, pause, skip, stop) and choose stations or songs directly from the touchscreen or customisable buttons.
Universal Connectivity & Compatibility
-
Wi-Fi 6 (802.11ax): Dual-band 2.4 GHz + 5 GHz, 2400-2495 MHz frequency range
-
Bluetooth 5.4: For speaker pairing and Shelly BLU device connectivity
-
USB Type-C: 5V/3A power input for flexible installation options
-
MQTT, HTTP/HTTPS webhooks, and Home Assistant support for open-ecosystem integration
-
Remote Access: Monitor and control your devices from anywhere via the Shelly Smart Control app
Professional Installation Made Easy
The Shelly Wall Display XL is designed for wall-box installation in standard electrical boxes for light switches. The device supports conductor cross sections from 0.75 to 2.5 mm² (18 to 14 AWG) for solid, stranded, and bootlace ferrule connections. Maximum screw terminal torque is 0.4 Nm (3.5 lbin). The display operates on 100-240V~ 50/60Hz mains power and consumes less than 15W during operation.
Key Specifications at a Glance
-
Display: 10.1-inch, 1280 × 752 px, 5-point capacitive touch, G+FF
-
Processor: Rockchip RK3566 Quad-core Cortex-A55
-
Operating System: Android 11
-
Memory: 16 GB internal storage
-
Speakers: 2 × 2W stereo speakers with BOX sound cavity
-
Relay: 5A/1500W load switching
-
Sensors: Proximity, ambient light (LUX measurement)
-
Wireless: Wi-Fi 6 dual-band (2.4/5 GHz), Bluetooth 5.4
-
Range: Up to 30m indoors, 50m outdoors
-
Colour Options: Grey, Black
What's in the Box
- Shelly Wall Display XL (Grey)
- Wall mounting hardware
- Quick start guide
- Safety documentation
Full Specifications
Display & Interface
| Screen Size |
10.1 inches |
| Resolution |
1280 × 752 pixels |
| Touch Technology |
5-point capacitive, G+FF |
| Customisable Buttons |
4 physical buttons |
Processing & Memory
| Processor |
Rockchip RK3566 Quad-core Cortex-A55 |
| Operating System |
Android 11 |
| Internal Memory |
16 GB |
Audio
| Speakers |
2 × 2W stereo speakers (BOX sound cavity) |
| External Speaker Support |
Bluetooth, Sonos integration |
Wireless Connectivity
| Wi-Fi Protocol |
Wi-Fi 6 (802.11ax), dual-band 2.4 GHz + 5 GHz |
| Wi-Fi Frequency Range |
2400 - 2495 MHz |
| Bluetooth |
Bluetooth 5.4 |
| Wireless Range |
Up to 30m (100 ft) indoors, 50m (160 ft) outdoors |
| Protocol Support |
MQTT, HTTP/HTTPS webhooks |
Sensors & Control
| Proximity Sensor |
Yes |
| Ambient Light Sensor |
Yes (LUX measurement) |
| Built-In Relay |
5A / 1500W load switching |
| Power Monitoring |
Via connected Shelly PM devices |
Power & Electrical
| Power Supply |
100-240V~ 50/60Hz |
| USB Type-C Power |
5V × 3A |
| Power Consumption |
< 15W |
| Conductor Cross Section |
0.75 to 2.5 mm² / 18 to 14 AWG |
| Screw Terminal Torque |
0.4 Nm / 3.5 lbin (max) |
Environmental
| Operating Temperature |
-20°C to +40°C (-5°F to 105°F) |
| Humidity Range |
30% to 70% RH |
| Maximum Altitude |
2000m (6562 ft) |
Physical
| Dimensions (H × W × D) |
155.8 × 272.5 × 38.3 mm (6.13 × 10.7 × 1.50 inches) |
| Weight |
920g (32.45 oz) |
| Mounting |
Standard electrical wall box |
| Shell Material |
Metal stamping, PC with coating, glass |
| Colour |
Grey |
Warranty & Compliance
| Warranty Period |
24 months (2 years) |
| Manufacturer |
Shelly Europe Ltd. |
| Model Number |
SAWD-3A1XE10EU2 |
Specifications are sourced from the official manufacturer product page and may be updated.
