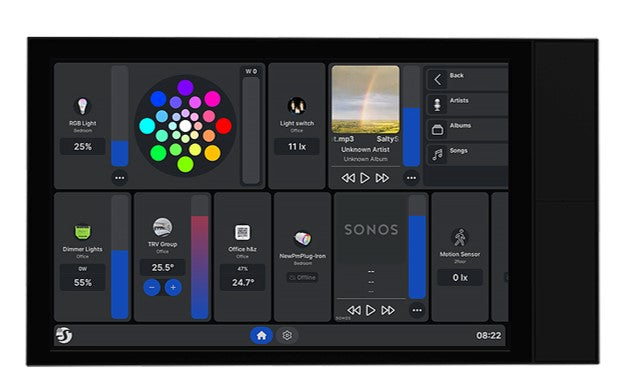

Shelly Wall Display XL Black 10.1-Inch Smart Home Control Panel
Transform your smart home experience with the Shelly Wall Display XL Black, a sophisticated 10.1-inch HD touchscreen control panel that centralizes command of your entire home automation system. This premium in-wall panel features Wi-Fi 6 and Bluetooth 5.4 connectivity, a built-in 5A relay, four customizable buttons, integrated 2W stereo speakers, and light and proximity sensors. Perfect for modern homes, hotels, rental properties, and commercial spaces, the Wall Display XL delivers effortless, app-free control of lighting, climate, scenes, and more from a single, elegant touchscreen.
Key Features
-
10.1-Inch HD Touchscreen: Vivid 1280 × 752 resolution with 5-point capacitive touch for smooth, responsive navigation
-
Built-In 5A Relay: Control appliances up to 1500W directly, including lights, fans, heaters, and more
-
Four Customizable Buttons: Quick, app-free access to your most-used devices and scenes for guests, kids, or shared spaces
-
Wi-Fi 6 & Bluetooth 5.4: Dual-band wireless (2.4 GHz + 5 GHz) for fast, stable connectivity and easy integration with Shelly devices
-
Integrated Sensors: Built-in light (lux) and proximity sensors for intelligent automation based on ambient conditions
-
Real-Time Power Monitoring: Track energy consumption of connected appliances and reduce waste
-
Stereo Speakers: 2 × 2W high-quality speakers for audio notifications, alarms, and Bluetooth/Sonos music control
-
Works with Home Assistant & MQTT: Seamless integration into open smart home ecosystems
Centralized Smart Home Control
The Shelly Wall Display XL Black installs flush into a standard electrical wall box, giving you a sleek, professional control center for your entire smart home. Manage lights, HVAC, blinds, scenes, and more from one central screen without needing to walk room to room or open multiple apps. The intuitive interface is fully customizable, so you can design the perfect layout for your household or business.
Powerful Automation & Energy Management
With integrated light and proximity sensors, the Wall Display XL can trigger automations based on ambient conditions. Control dehumidifiers, fans, and ventilation based on humidity, or adjust heating when room temperature drops. Monitor real-time power consumption through the Shelly Smart Control App and identify energy-hungry appliances to cut costs and improve efficiency. Create custom scenes like "Movie Night," "Good Morning," or "Leave Home" with a single tap or button press.
Audio & Media Integration
Connect the Wall Display XL to Bluetooth or Sonos speakers for seamless audio control. Play, pause, skip tracks, or adjust volume via the touchscreen or assigned physical buttons. Perfect for whole-home audio systems, intercom announcements, or quick music control in any room.
Ideal for Homes, Hotels & Commercial Spaces
The Wall Display XL is designed for versatility. In residential settings, it provides elegant, centralized control for families and guests. For short-term rentals, hotels, and commercial installations, it offers an intuitive, tap-and-use interface with no apps or accounts required. Configure only essential controls so guests enjoy smart features without confusion or complexity.
Easy Integration & Open Ecosystem
The Shelly Wall Display XL Black works perfectly with the Shelly Smart Control App and Home Assistant, offering local control and advanced automation via MQTT. No hub required. Set up automations, customize routines, and manage all your Shelly devices from one unified interface. The Wall Display XL runs Android 11 on a powerful Rockchip RK3566 Quad-core Cortex-A55 processor with 16 GB of onboard memory for smooth, responsive performance.
Professional Installation
The Wall Display XL is designed for in-wall installation in standard electrical wall boxes (compatible with US and EU electrical standards). A neutral wire is required. Professional installation is recommended. The device operates on 100-240V AC, 50/60Hz with a USB Type-C backup power supply (5V, 3A).
What's in the Box
- Shelly Wall Display XL Black control panel
- Power base (compatible with electrical wall boxes)
- Mounting hardware
- User guide & safety instructions
Full Specifications
Display
| Screen Size |
10.1 inches |
| Resolution |
1280 × 752 pixels |
| Touch Technology |
5-point capacitive (G+FF touch) |
Physical
| Dimensions (H × W × D) |
155.8 × 272.5 × 38.3 mm (6.13 × 10.7 × 1.50 inches) |
| Weight |
920 g (32.45 oz) |
| Mounting |
Standard electrical wall box (US/EU compatible) |
| Shell Material |
Metal stamping, PC with coating, glass |
| Color |
Black |
Connectivity
| Wi-Fi |
Wi-Fi 6 (802.11ax) dual-band (2.4 GHz + 5 GHz) |
| Bluetooth |
Bluetooth 5.4 |
| Radio Frequency |
2400 - 2495 MHz |
| Range |
Up to 30 m (100 ft) indoors, 50 m (160 ft) outdoors |
| MQTT Support |
Yes |
| HTTP/HTTPS Webhooks |
Yes |
Electrical
| Power Supply |
100-240V AC, 50/60Hz |
| USB Type-C Power |
5V / 3A |
| Device Power Consumption |
< 15W |
| Built-In Relay |
5A, 1500W max load |
| Conductor Cross Section |
0.75 to 2.5 mm² (18 to 14 AWG) |
Processor & Memory
| CPU |
Rockchip RK3566 Quad-core Cortex-A55 |
| Operating System |
Android 11 |
| Memory |
16 GB |
Audio
| Speakers |
2 × 2W stereo (BOX sound cavity) |
Sensors
| Light Sensor (Lux) |
Yes |
| Proximity Sensor |
Yes |
| Temperature Sensor |
No |
Environmental
| Operating Temperature |
-20°C to +40°C (-5°F to 105°F) |
| Humidity |
30% to 70% RH |
| Max Altitude |
2000 m (6562 ft) |
Other Features
| Customizable Buttons |
4 physical buttons |
| Scheduling |
Weekly schedule supported |
| Scripting |
No |
| Power Measurement |
Monitors power consumption of connected devices |
| Warranty |
2 years (24 months) |
Specifications are sourced from the manufacturer product page and may be updated.
