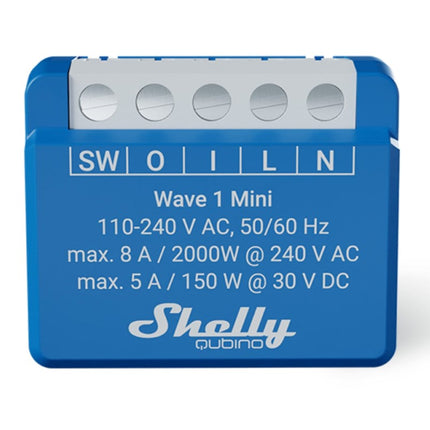

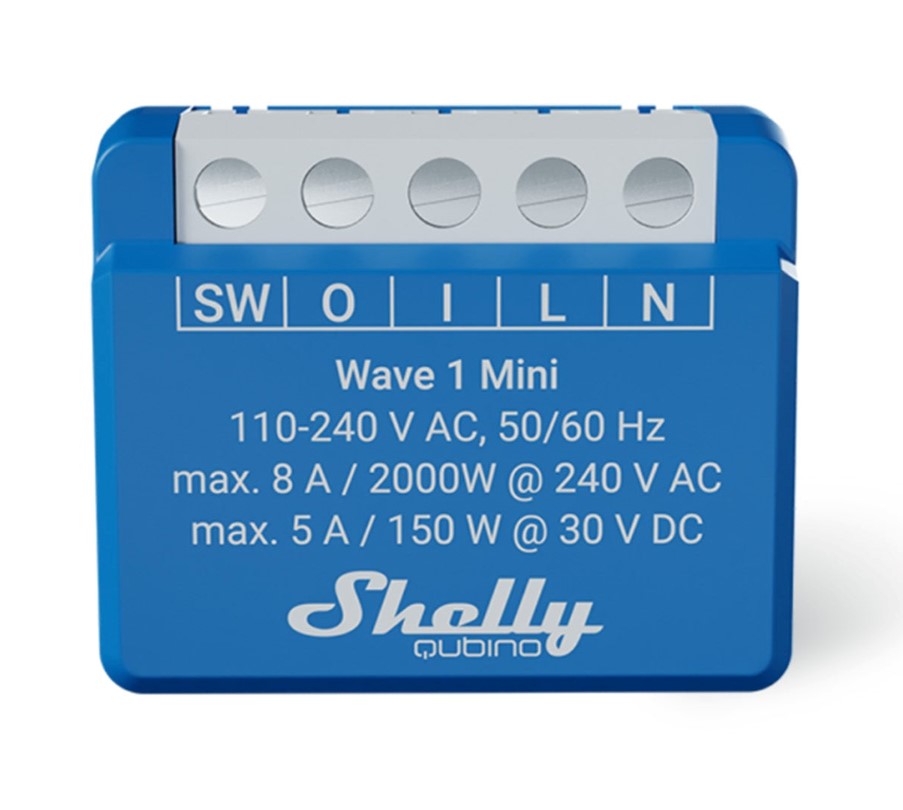

Shelly Wave 1 Mini Z-Wave Smart Relay Switch 8A Dry Contact
Transform any light switch, lock, or appliance into a smart device with the Shelly Wave 1 Mini, the world's smallest Z-Wave smart relay switch. This ultra-compact smart switch is designed for tight spaces and delivers secure, energy-efficient control of electrical appliances up to 8A at 240V AC or 5A at 30V DC. Compatible with all certified Z-Wave gateways and powered by the latest Z-Wave 800 series chip, it seamlessly integrates into your smart home ecosystem for remote control via smartphone or tablet.
Why You'll Love the Shelly Wave 1 Mini
-
World's smallest Z-Wave smart switch: 35% smaller than its predecessor, fitting even the tightest Danish wall boxes and switch enclosures
-
Dry contact relay design: Connect a wide range of power supply loads including lights, locks, garage doors, irrigation systems, and low-voltage devices
-
Works with all Z-Wave systems: Compatible with over 4,000 certified Z-Wave devices and gateways including Samsung SmartThings, HomeSeer, and Vera
-
Extended wireless range: Up to 40m indoor range with built-in Z-Wave repeater functionality to extend your network
-
Energy efficient operation: Consumes less than 0.3W of power
-
Bank-level security: Features Security 2 (S2) with AES128 encryption for maximum network safety
Perfect for Any Smart Home Application
The Shelly Wave 1 Mini is ideal for Australian homes looking to retrofit existing switches and appliances with smart control. Its potential-free dry contacts make it incredibly versatile, supporting both AC and DC loads. Control lighting, automate garage doors, manage irrigation systems, or add smart functionality to electric locks - all from anywhere using your Z-Wave hub and smartphone.
Compact Design for Tight Spaces
Measuring just 29 x 35 x 16mm, the Wave 1 Mini fits effortlessly behind any standard light switch or within ceiling roses. The space-saving design is perfect for renovations and new builds where space is at a premium, yet it delivers full smart home functionality without compromise.
Smart Scheduling & Automation
Create personalized schedules aligned with your daily routine or synchronize with sunrise/sunset times to manage lighting automatically (Z-Wave gateway required). Combine the Wave 1 Mini with other Z-Wave devices to build custom scenes and multi-device automation routines for ultimate convenience.
Z-Wave Mesh Network Technology
Built on the latest Z-Wave S800 chip generation, the Wave 1 Mini operates on a sub-GHz frequency (868.4 MHz) ensuring stable, reliable wireless connection without interference from Wi-Fi or Bluetooth. The device acts as a Z-Wave signal repeater, extending your network range throughout your property.
SmartStart & Easy Installation
Installation is straightforward with SmartStart support: simply scan the QR code on the device with your Z-Wave gateway, connect power, and the device is automatically added to your network within minutes. No complicated pairing procedures required.
Wide Voltage Support
The Wave 1 Mini supports a wide range of output voltage levels including low voltages, making it suitable for controlling everything from mains-powered lights to low-voltage LED strips and 12V DC appliances.
Professional-Grade Protection
The device includes overheating protection and is designed for safe operation in ambient temperatures from -20°C to 40°C. External circuit protection should be provided with a 10A circuit breaker (B or C characteristic, 6kA interrupting rating).
What's in the Box
- Shelly Wave 1 Mini smart relay switch
- Quick start guide
- DSK security label with QR code
Full Specifications
Electrical
| Max. switching voltage AC |
240V AC |
| Max. switching current AC |
8A |
| Max. switching power AC |
2000W |
| Max. switching voltage DC |
30V DC |
| Max. switching current DC |
5A |
| Max. switching power DC |
150W |
| Power consumption |
< 0.3W |
| Relay type |
Dry contact (potential-free) |
| Power measurement |
No |
| Overheating protection |
Yes |
| External protection |
10A, B or C characteristic, 6kA interrupting rating, Energy limiting class 3 |
Wireless
| Protocol |
Z-Wave (Z-Wave Plus certified) |
| Chip |
Z-Wave S800 series |
| Frequency |
868.4 MHz (EU) |
| Max. RF power |
< 25mW |
| Operational range |
Up to 40m indoors (131 ft.) |
| Z-Wave repeater |
Yes |
| Security |
Security 2 (S2) with AES128 encryption |
| SmartStart support |
Yes |
Physical
| Dimensions (H × W × L) |
29 x 35 x 16mm (±0.5mm) |
| Dimensions (inches) |
1.11 x 1.35 x 0.63 in (±0.02 in) |
| Material |
Plastic |
| Color |
Blue |
| Installation location |
Indoor, behind switch or in ceiling rose |
Environmental
| Operating temperature |
-20°C to 40°C (-5°F to 105°F) |
| Humidity |
30% to 70% RH |
Compatibility & Standards
| Compatible systems |
All certified Z-Wave gateways (Samsung SmartThings, HomeSeer, Vera, Fibaro, Hubitat, etc.) |
| Z-Wave Manufacturer ID |
0x0460 |
| Z-Wave Product Type ID |
0x0002 |
| Z-Wave Product ID |
0x008E |
| Part number (EU) |
QMSW-0A1X8EU |
| Warranty |
3 years |
Specifications are sourced from the manufacturer product page and may be updated. A Z-Wave gateway/hub is required for device configuration and smart features. Installation must be performed by a qualified electrician.
